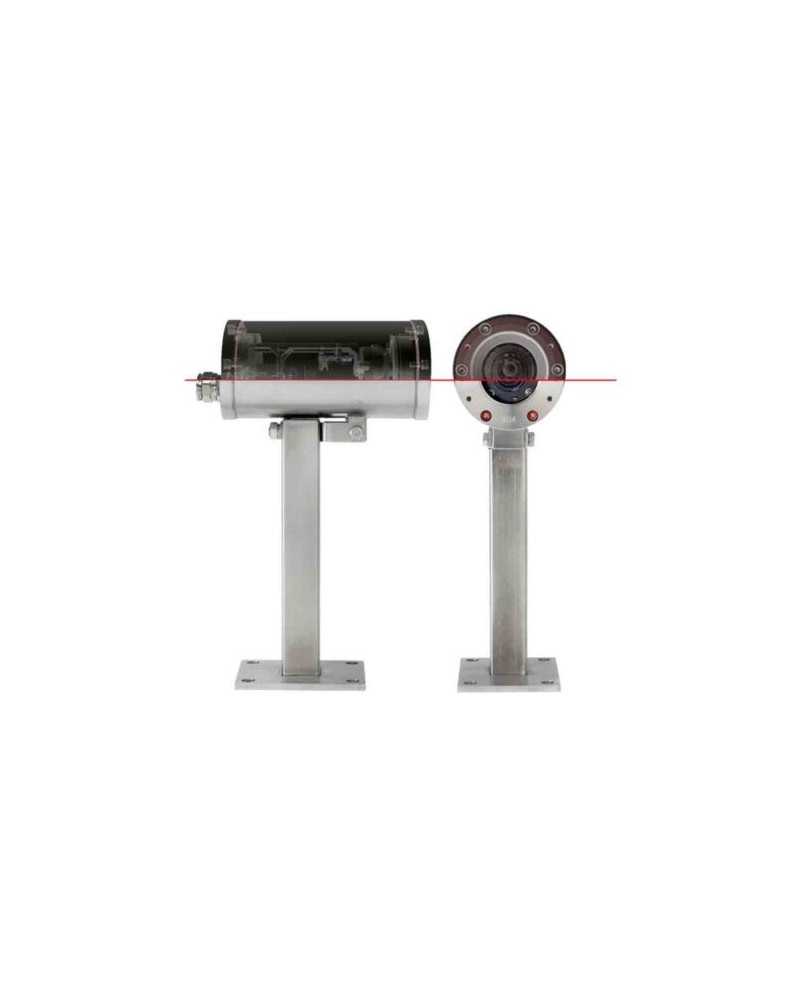

Ex-proof camera ExCam e.Vario

Explosion proof analog camera

ATEX, IECEx & EAC-Ex certified
Day & Night functionality
Auto IR-cut filter
Motorized varifocal lens (remote zoom)
High light sensitivity 0.015 lx (sens-up x30) / F 1.3
1/2,8‘‘ Megapixel CMOS Sensor
Dynamic PTC-Heater-Concept (-40°C)

Security policy
Delivery policy

The ExCam e.Vario is an explosion proof camera with motorized variofocal lens. The video camera delivers superb picture quality for process monitoring and surveillance technology. The ExCam e.Vario is approved for dust and gas explosion risk zones in accordance with the EU directive 14/34/EU (ATEX, IECEx, EAC-Ex and MASC).

With the ExCam e.Vario, a new, very compact, analog, ex-proof varifocal camera enters the market. The ExCam e.Vario is the further development of the ExCam vario 2.0. It offers the same economic advantages as the predecessor model; it is also robust, media resistant and ultra compact – but it has more powerful features.

Data sheet

Enclosure colour: Red, blue, black (more colours on demand).
Ambiant temperature: -50°C to +70°C
Humidity: up to 95% RH
Power supply: 100-240 Vac
Sounds: 59
Power consumption (W): 5-20W
Cable entries: 2xm20 in standard (other on request), delivered with ATEX / Iecex 3/4 ̈NPT plug in standard on C1D2
