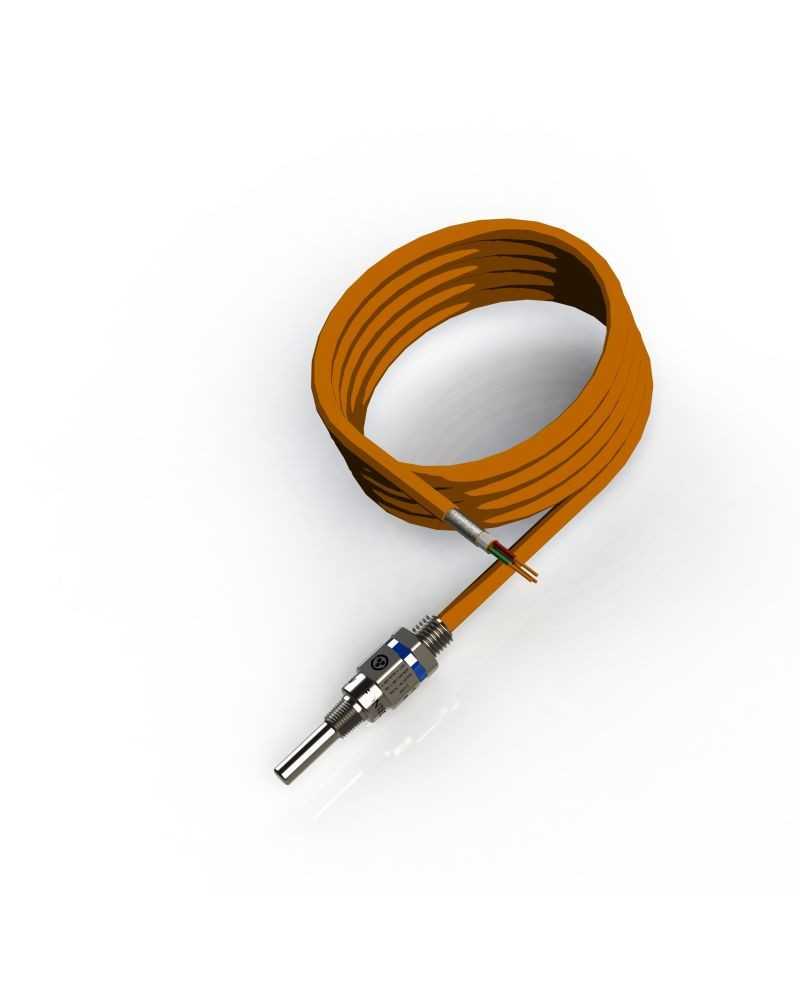

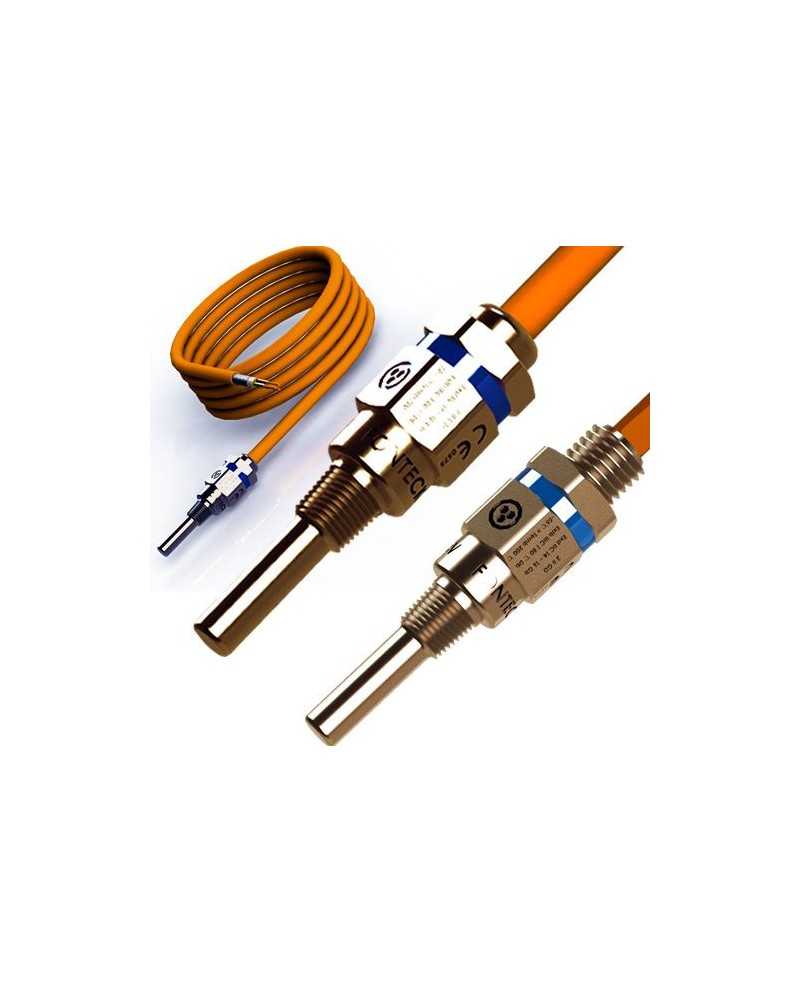

TSDC-BTS Ex Temperature sensor and transmitter
Main features:
- Multiple sensors inside (RTD/PTC/NTC/BTS).
- Main body enclosure in Stainless steel 1.4404 SUS316
- Pipe and main body of one-time processing finished, with ultra-high resistance to pressure and sealing
- Two sizes (Inside Dimension 35mm/65mm) Small size easy for installation
- A variety of accessories, suitable for internal, external, surface mount
- A variety of composite signal output
- Integrated cable gland
- 6 x 0.75 braid armored high thermal resistant silicone cable (or non-armored on demand)
- 1.5, 2, 3 or 5 meter cable length available
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
TSDC-S Composite Temperature Detection & control Sensor | Switch is used in equipment, piping (liquid or gas) and special places temperature detection and control of the original, TSDC-S Temperature Sensor | Switch by the flameproof shell, sensors and high temperature cables.
TSDC-S have two sizes (Inside Dimension 35mm/65mm) can be application. The tube pipe and the main body of one-time processing finished, with good resistance to pressure and sealing (Max Presser is 120 Bar).
TSDC-S sensor combination can be selected according to customer requirements （need a certain number or long-term customers).
| Technology | Temperature |
|---|---|
| Implementation | Hazardous area |
| Certification | ATEX Iecex |
| Suitable for | Area 1/21 Area 2/22 |
| Protection mode | Ex d |
| Degree of protection | IP66 |
| Ambiant temperature | -55°C to +70°C |
| Humidity | up to 95% RH |
| Power consumption (W) | 100 ~ 250 V AC , 50 / 60Hz, 2.5 A 24 V AC / DC, ± 10% , 50 / 60Hz, 2 A |
| System type | Conventional |
| Dimensions | 80 cm x 35 cm x 35 cm |
| Net Weight | 65/75 g |
