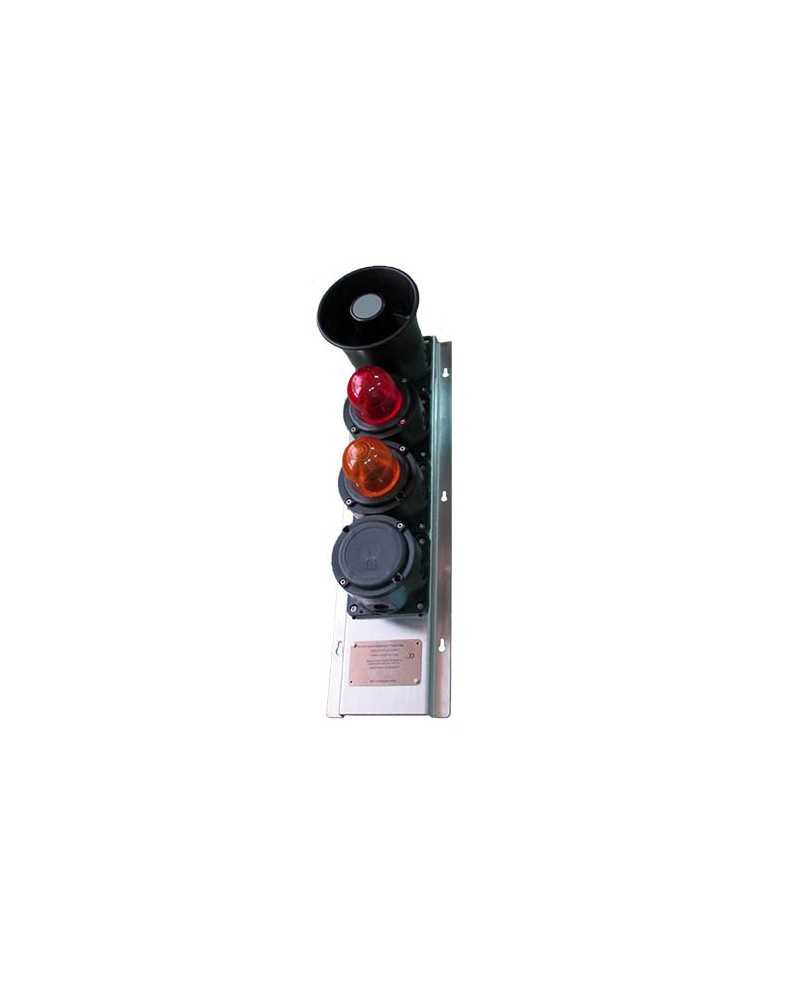

Weatherproof combined signal sounder & beacons SB100-2/3/4j
Key features :
- Multiple combinations (4 maximum)
- LED or Xenon beacon
- 123 dB sirens
- IP66 / 67
-
Security policy
-
-
Delivery policy
-
The set is provided with a sounder and 4 beacons maximum The beacons are proposed in two lighting technology. Led with steady , rotary, fixed or blinking led of different powers.
Flashing with XENON tube of different powers. Four flashing frequencies are selectable.
The sounder according to user control system can be set with one tone among 59 prerecorded tones.
The beacons can be triggered either joint or independent.
Optional it is possible to pilot all, or separately the beacons via a telephone line. Body are moulded with flame retardant polycarbonate, lens is in ABS
On demand one of the beacons can be replaced by a push button or a junction box.
The set is assembled on a stainless steel 316 L frame
Data sheet
- Enclosure colour
- Black or red, more colours on demand
- Lens color
- aBS red, yellow (amber), blue, green, clear.
- Ambiant temperature
- -40°C to +70°C
- Humidity
- up to 95% RH
- Power supply
- 100-240 Vac
- Version
- LED or Xenon
- Power output
- up to 123 dB at 1M
- Power consumption (W)
- 5-20W
