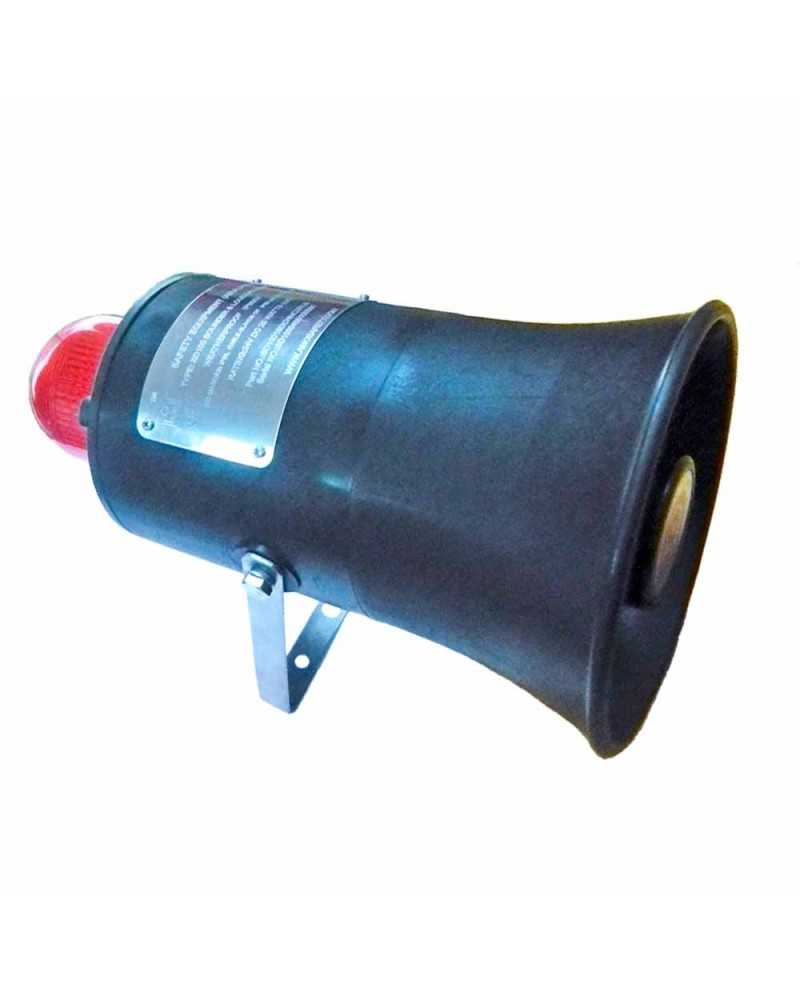

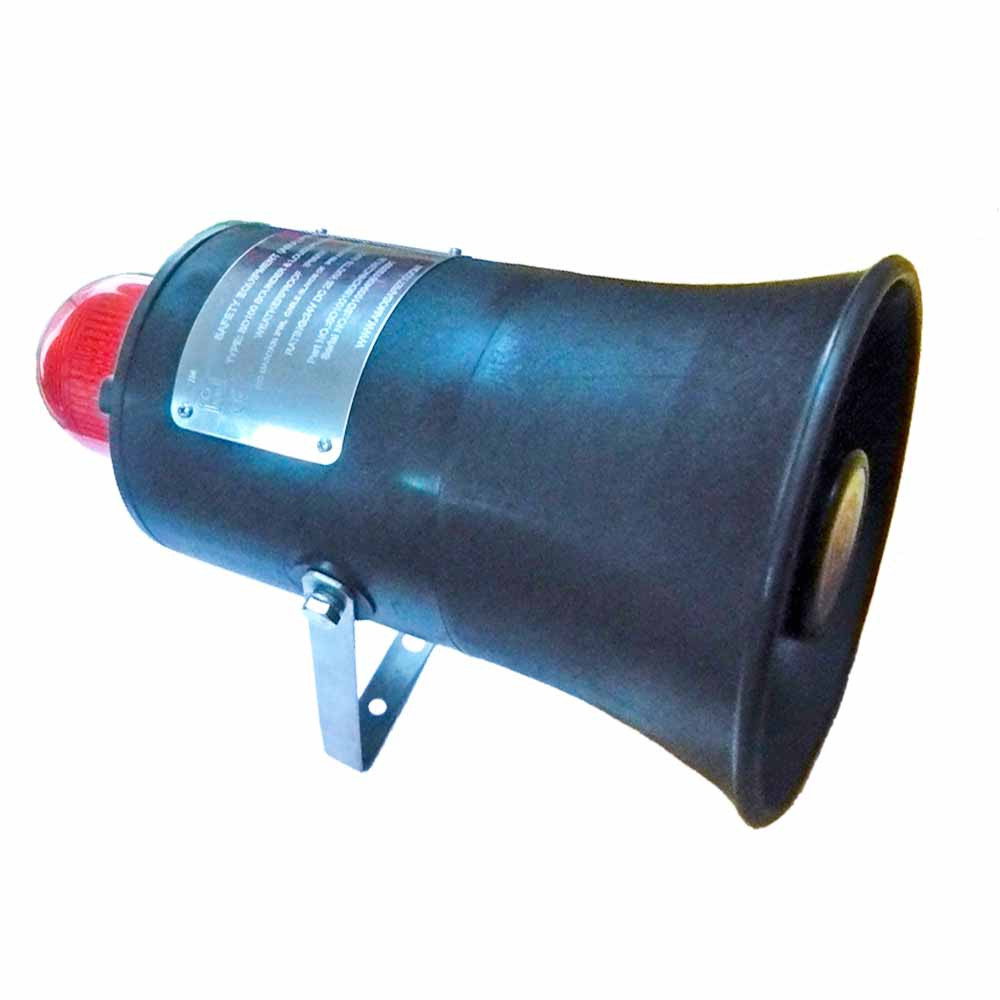

Flameproof combined signal SB100-1
Out of stock
Combined siren beacon in polycarbonate industrial version
SB100-1
Advantages :
- LED or Xenon
- Up to 123 dB
- Protection index: IP 66/67 / 69K
- 59 pre-recorded
- up to 123 dB @ 1M / 1W
Customs code : 85311095
Country of origin : FR
Security policy
Delivery policy
This SB100-1 combined horn is composed of a siren and an optical horn. This set is designed for indoor and outdoor use. It complies with IEC 60947 and EN 54 standards and is dedicated to the most severe non ATEX industrial environments IP & IK high.
The optical warning device is available in 2 technologies:
- LED fixed, flashing, rotating light with different powers
- Flash with XENON tube of different powers. Four flashing frequencies are selectable.
For the siren, it is possible to select 1 tone among the 59 pre-recorded, including the main usual alarm tones and complying with the main international standards. The light beacon and the siren can be activated jointly or independently.
The assembly is molded in polycarbonate protected against high temperatures and the lens is in ABS (different colors to choose from).
Data sheet
- Enclosure colour
- Black or red, more colours on demand
- Lens color
- aBS red, yellow (amber), blue, green, clear.
- Ambiant temperature
- -40°C to +70°C
- Humidity
- up to 95% RH
- Power supply
- 100-240 Vac
