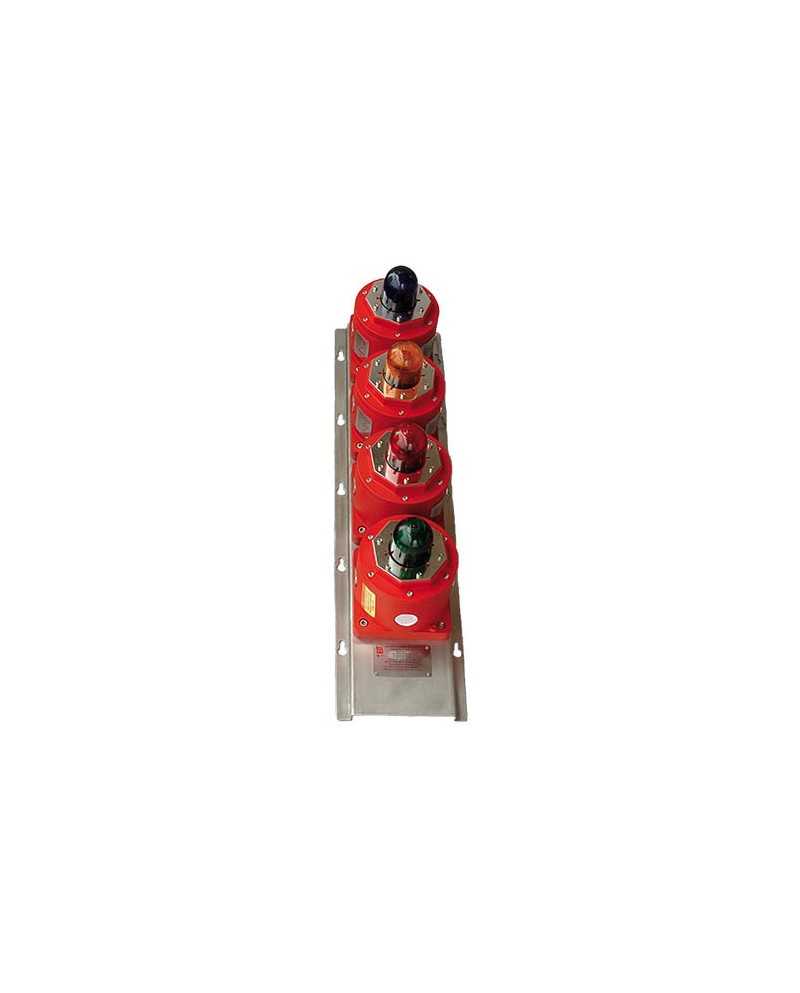

SL150 combined status light in GRP

SL150 combined status light in GRP for zones 1, 2 and 21, 22

  • ATEX & IEC Ex certified - Zone 1/21
  • Stainless steel variant also available
  • IP 66/67
  • Xenon or LED
  • Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54

Weight: SL150-A: 10,2kg, SL150-B: 15kg, SL150-C: 20,2kg, SL150-D: 23,90kg

Leadtime on demand
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

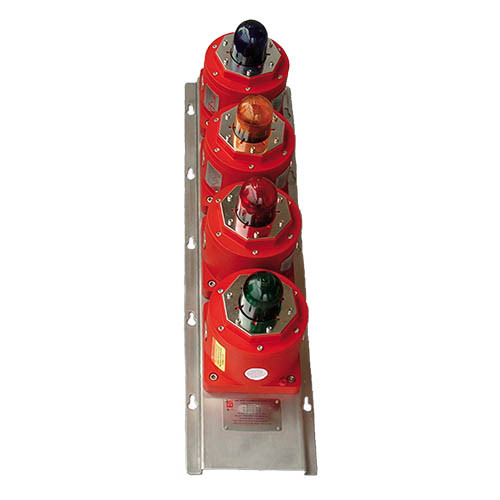

This ATEX SL150 light column is composed of several flashing lights (5 maximum). This set is certified for Atex zones 1 to 2 for gas and 21 to 22 for dust. It is dedicated for the Oil & Gas, chemical, petrochemical, pharmaceutical, marine and all offshore applications. It was developed for corrosive environments and explosive areas. The beacons are available in 2 technologies. LED fixed, flashing, rotating light of different powers. Flash with XENON tube of different powers. Four flashing frequencies are selectable. The light beacons can be triggered jointly or independently.

The set is molded in polyester reinforced with fiberglass (GRP), dyed in the mass and protected by a highly UV-resistant paint, the verrine is in borosilicate glass of different shades. The whole is assembled on a stainless steel plate. As an option, it is possible to integrate the triggering of beacons by a telephone line. On request, one of the light beacons can be replaced by a push button or a junction box. A full range of accessories allows products to be personalized.

Data sheet

Certificate(s)
NEMKO 13ATEX1561X, IECEX NEM 13.0030X
Marking
Ex d IIC T4~T6 Gb, Ex tb IIIC T135°C~T85°C, Ex II GD
Enclosure colour
Red, blue, black (more colours on demand).
Lens color
borosilicate glass 3.3 color Red, Yellow (Amber), blue, green, clear
Ambiant temperature
T6 : – 40°C + 55°C , T5 : – 40°C + 60°C, T4 : – 40°C + 70°C
Power supply
100-240 Vac
Power consumption (W)
Xenon:2 Joule: 4W (Max); 5J: 10W (Max);10J: 15W (Max);15J: 20W(Max); 21J: 25W(Max); LED:5 W
Cable entries
4* M20, M25, 1/2” NPT, 3/4”NPT or Others on request
