ATEX SB150-1 combined alarm in GRP

Out of stock

Combined in GRP for zone 1, 21

  • ATEX and IEC Ex Certified – Zone 1, 2, 21, 22
  • GRP variant also available
  • IP 66/67
  • Up to 115dB
  • 59 sounds available
  • Xenon or LED
  • Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
  • Made in France

Customs code: 83311095
Country of origin: FR
Weight: 8kg

Power output
Power supply
Ask for a quote.

  • Security policy Security policy
  • Delivery policy Delivery policy

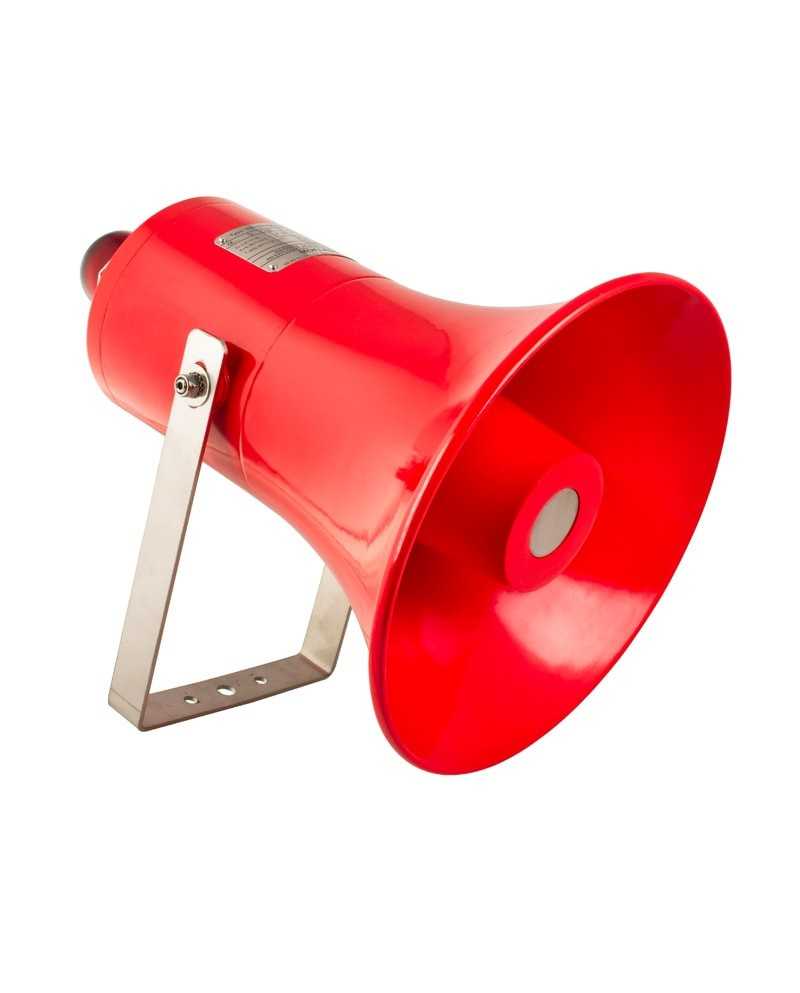

This combined sound and optical alarm SB150-1 is certified for Atex zones from 1 to 2 for gas and 21 to 22 for dust. It is dedicated to the Oil and Gas industries, chemistry, petrochemicals, pharmacy, marine and all offshore applications. It has been developed for corrosive environments and hazardous areas. The flashlight is offered in two technologies. LED fixed light, flashing, turning of different powers. Flash with Tube XENON of different powers.

Four blinking frequencies are selectable. For the siren, it is possible to select 1 tone from the 59 pre-recorded, including the main usual alarm tones. The warning beacon and siren can be triggered jointly or independently.

As an option it is possible to integrate the siren trigger or the beacon by a telephone line. The whole is molded in fiberglass reinforced polyester(GRP),tinted in the mass and protected by a highly UV-resistant paint, the glass is made of borosilicate glass of different shades.
On demand specific tones customers can be pre-registered in the factory
A complete range of accessories allows you to customize the products.

Data sheet

Hazardous area
Suitable for
Area 1/21
Area 2/22
Protection mode
Ex d
II 2 GD Ex d IIC T4 ... T6 Gb, Ex tb IIIC T135°C ... T85°C
Enclosure colour
Red, blue, black (more colours on demand).
Lens color
borosilicate glass 3.3 color Red, Yellow (Amber), blue, green, clear
Ambiant temperature
-40°C to +70°C
up to 95% RH
Power supply
100-240 Vac
Power consumption (W)
Xenon:2 Joule: 4W (Max); 5J: 10W (Max);10J: 15W (Max);15J: 20W(Max); 21J: 25W(Max); LED:5 W
Cable entries
4* M20, M25, 1/2” NPT, 3/4”NPT or Others on request
