    ATEX SB125-1 combined alarm in stainless steel
    ATEX SB125-1 combined alarm in stainless steel
    ATEX SB125-1 combined alarm in stainless steel
    ATEX SB125-1 combined alarm in stainless steel
    ATEX SB125-1 combined alarm in stainless steel
    ATEX SB125-1 combined alarm in stainless steel
    ATEX SB125-1 combined alarm in stainless steel
    ATEX SB125-1 combined alarm in stainless steel

    ATEX SB125-1 combined alarm in stainless steel

    Out of stock

    Main features:

    • ATEX and IEC Ex Certified – Zone 1, 2, 21, 22
    • GRP variant also available
    • IP 66/67
    • Up to 115dB
    • 59 sounds available
    • Xenon or LED
    • Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
    • Made in France

    Customs code: 83311095
    Country of origin: DE
    Weight: 4.5kg

    Power output
    Power supply
    Ask for a quote.

    • Security policy Security policy
    • Delivery policy Delivery policy
    Description

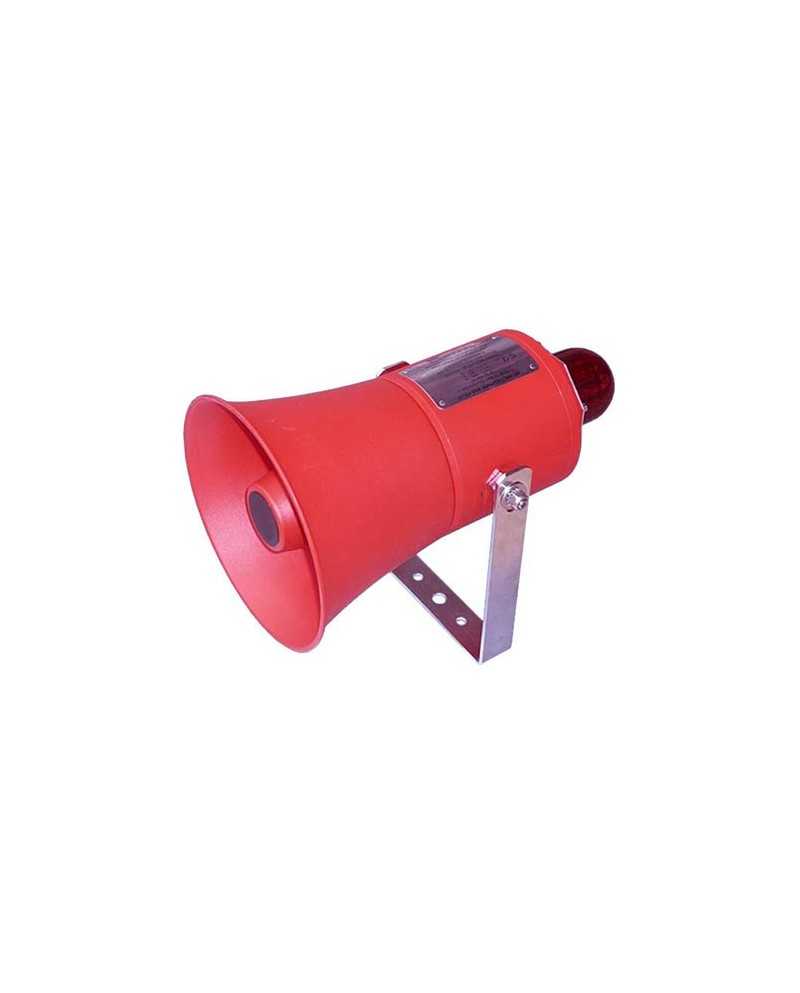

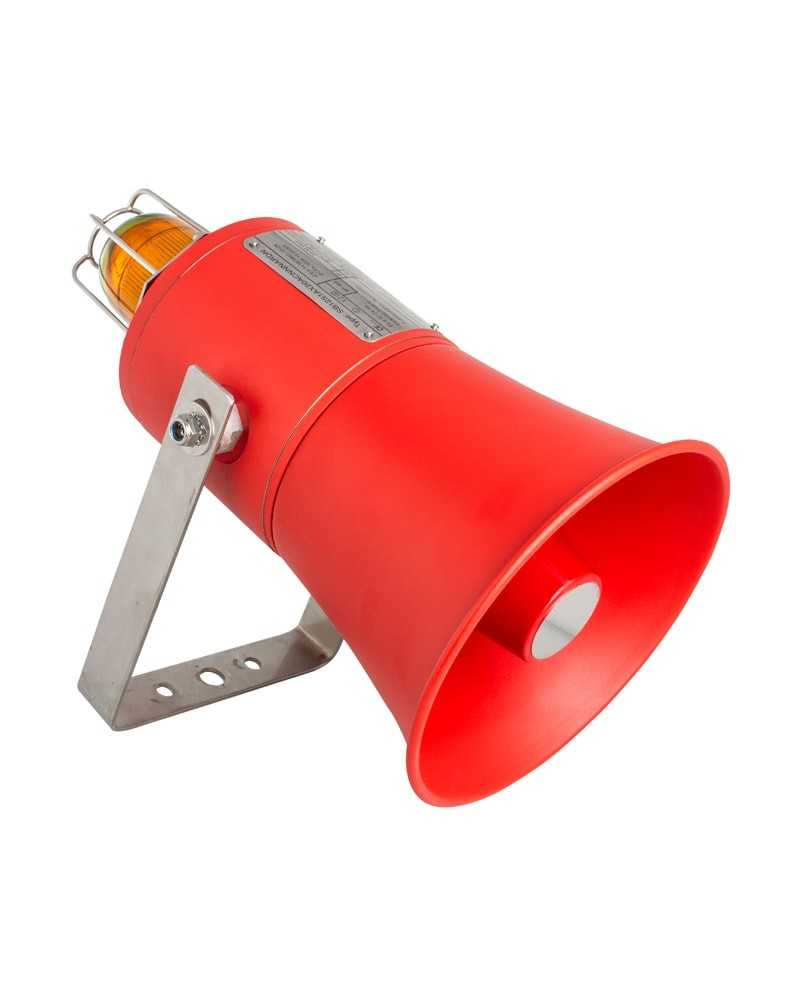

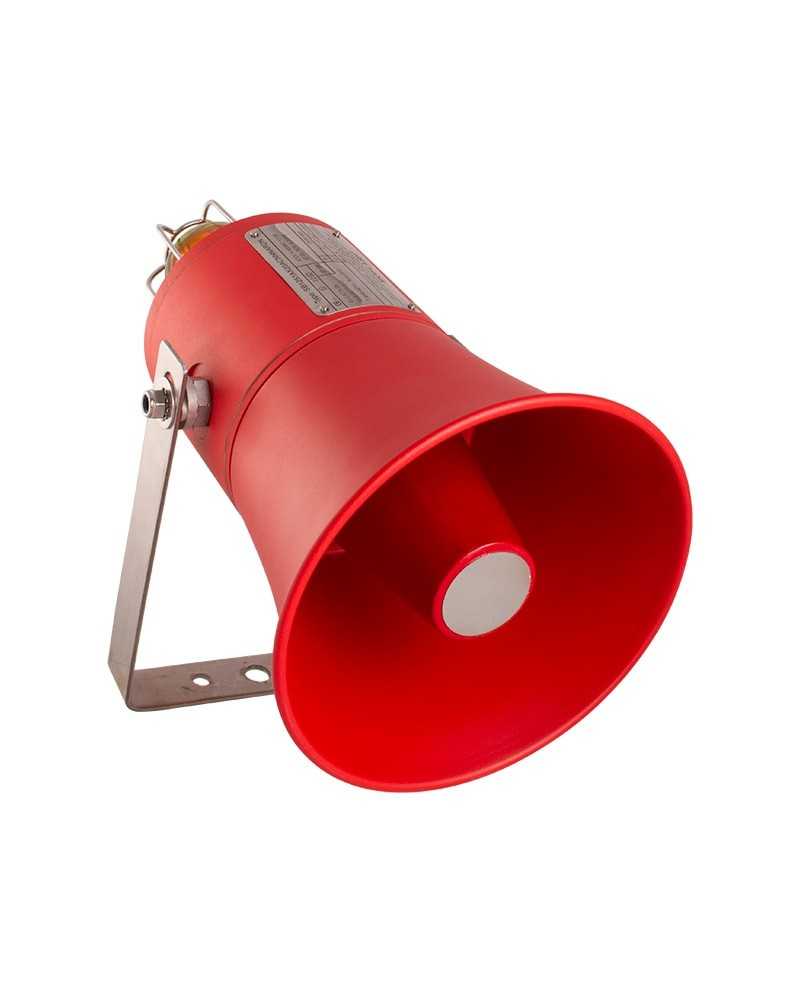

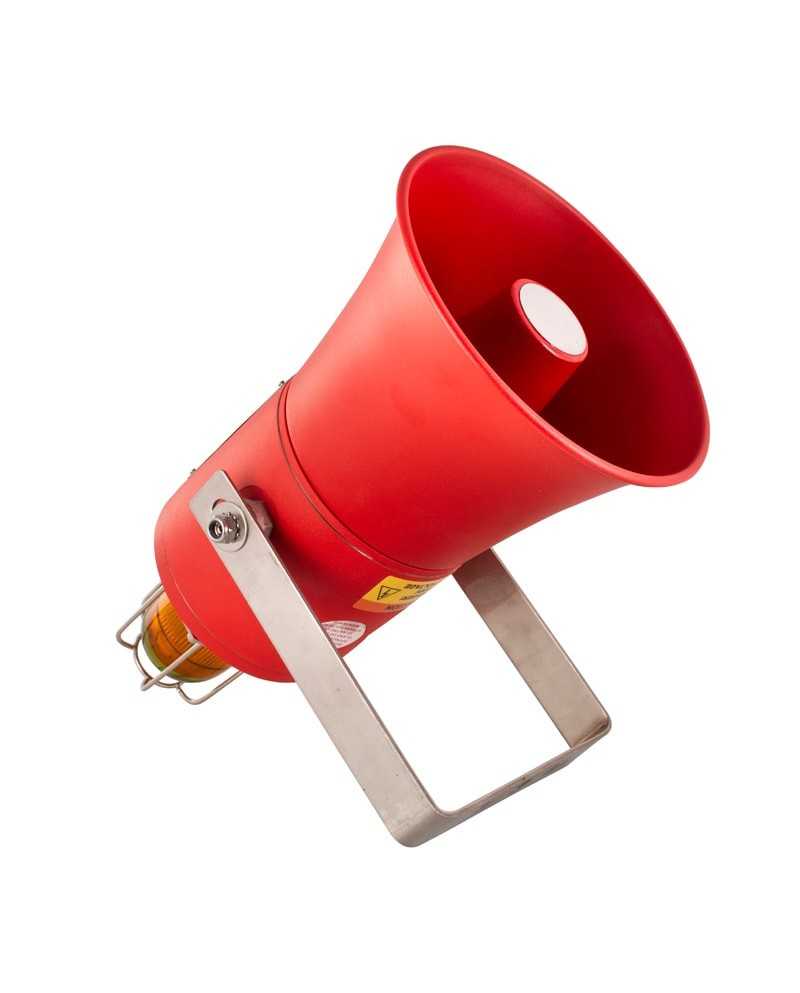

    This combined sound and optical alarm SB125-1 is certified for Atex zones from 1 to 2 for gas and 21 to 22 for dust. It is dedicated to the Oil and Gas industries, chemistry, petrochemicals, pharmacy, marine and all offshore applications. It has been developed for corrosive environments and hazardous areas. The beacon is offered in two technologies. LED fixed light, flashing, turning of different powers. Flash with Tube XENON of different powers. Four blinking frequencies are selectable. For the siren, it is possible to select 1 tone from the 59 pre-recorded, including the main usual alarm tones. The warning beacon and siren can be triggered jointly or independently.

    As an option it is possible to integrate the siren trigger or the beacon by a telephone line. The whole is molded and machined in INOX AISI 316L covered with a highly UV-resistant paint, the glass is made of borosilicate glass of different shades.
    On demand specific customer tones can be pre-registered in the factory.
    A complete range of accessories allows you to customize the products.

    Data sheet

    Certificate(s)
    NEMKO 13ATEX1566X, IECEX NEM 13.0036X
    UL
    Marking
    II 2 GD Ex d IIC T4 ... T6 Gb, Ex tb IIIC T135°C ... T85°C
    Enclosure colour
    Red, blue, black (more colours on demand).
    Lens color
    borosilicate glass 3.3 color Red, Yellow (Amber), blue, green, Claire
    Ambiant temperature
    -40°C to +70°C
    Humidity
    up to 95% RH
    Power supply
    100-240 Vac
    Power consumption (W)
    Xenon:2 Joule: 4W (Max); 5J: 10W (Max);10J: 15W (Max);15J: 20W(Max); 21J: 25W(Max); LED:5 W
    Cable entries
    4* M20, M25, 1/2” NPT, 3/4”NPT or Others on request
