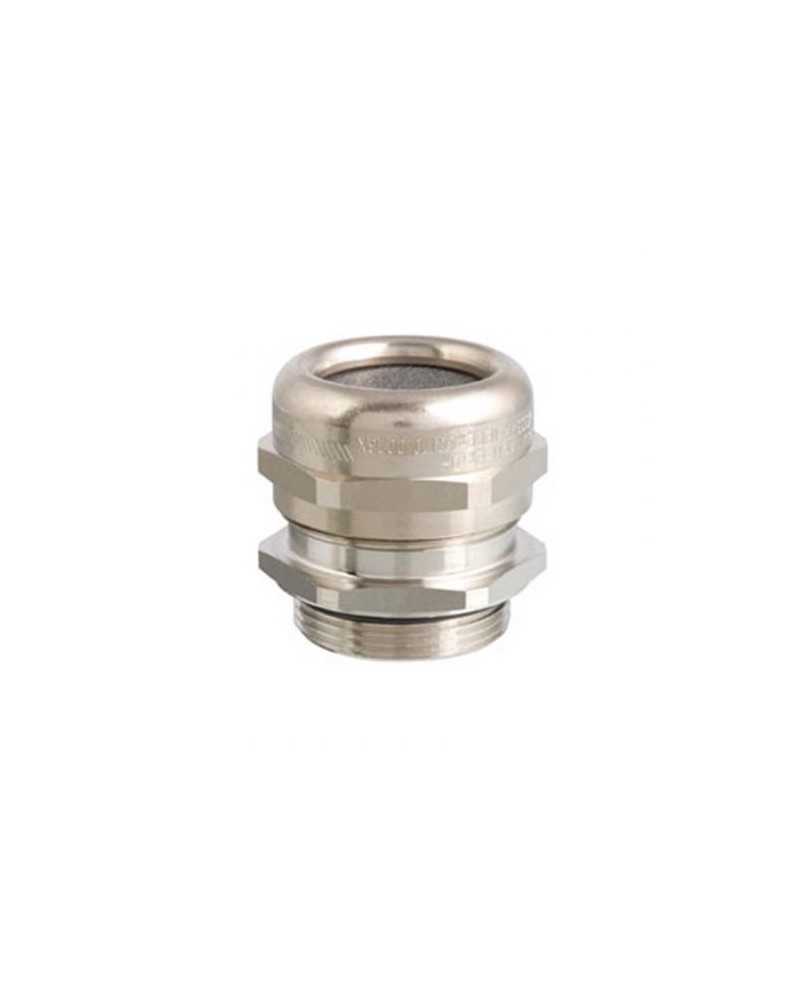

Metal cable gland NEWCAP CT Exe
Nickel-plated brass cable gland for strip armored or braided armored cable
Key features:
- Material : nickel plated brass
- Néoprène operculated sealing ring
- Hardening temperature : -40° C
- Perbunan O ring
- Polyamide clamping bush
- Metallic earthing washer
- IP 68 : protection in accordance with NF EN 60529
- ISO metric thread - NF EN 60423 and NF EN 50262
- Electric thread - STANDARD guide UTE C 68-311 - DIN 40430
Cable diam. outside
Material
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Metallic ATEX (Ex e) solutions for unarmoured or braided shielded cables, in accordance with the ATEX 2014/34 / EU directive and the international IEC Ex standard.
Suitable for the following cable types:
- Unarmoured cable
- Braided shield cable for cable and applications
Certifications and Compliance:
- Zones 1 and 2 Group IIC
- Zones 21 and 22 Group IIIC
ATEX certification number: INERIS 13ATEX0008X
Ex eb IIC, Ex nRc IIC, Ex tb IIIC
IECEx certification number: IECEx INE 13.0003X
Product Features
Materials :
Nickel plated brass for superior corrosion resistance.
Options: 316 L stainless steel long fixing thread
Recommendation: Use a lubricant and suitable for all stainless steel and aluminum threads.
Operating temperature :
Neoprene seal: -20 ° C to +80 ° C
Protection index (IP)
IP66 / IP68 tested 30 min / day for 7 days with a Ra surface finish of 1.6 m max.
| Certificate(s) | ATEX |
|---|---|
| Ambiant temperature | -20°C to +80°C |
