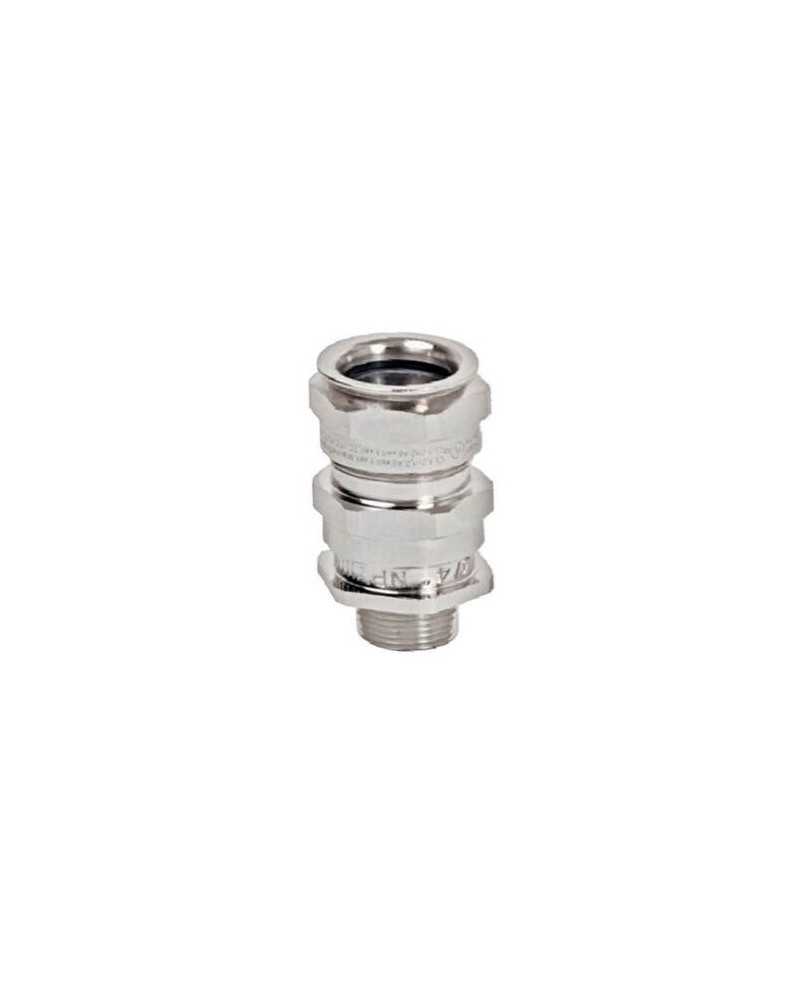

Cable gland ADE 4F for armoured cable with ISO thread
€0.00
Tax excluded
Key features:
- Ensures absolute anchoring of all types of cables
- Waterproof and resistant to mechanical shocks
- IP66 / IP68
- Material: nickel-plated brass or stainless steel
- Operating temperature: -60 ° C to +140 ° C
- Type of protection: Explosion-proof Ex db, Increased safety Ex eb, Limited breathing Ex nR, Dust Ex tb
Cable diam. outside
Material
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Explosion-proof solutions (Ex d) for armored cables with sealing ring
The explosion-proof ADE-4F cable glands for armored cables ensure the sealing on the internal sheath of the cable, the mechanical anchoring of the armor and its electrical continuity, as well as a perfect seal against water and dust on the cable. the outer sheath of the cable.
With numerous certifications and suitable for IEC and NEC installations for many types of cables, the ADE-4F models are available in several materials and with many types of threads to meet all needs.
| Ambiant temperature | -60°C to +130°C |
|---|
