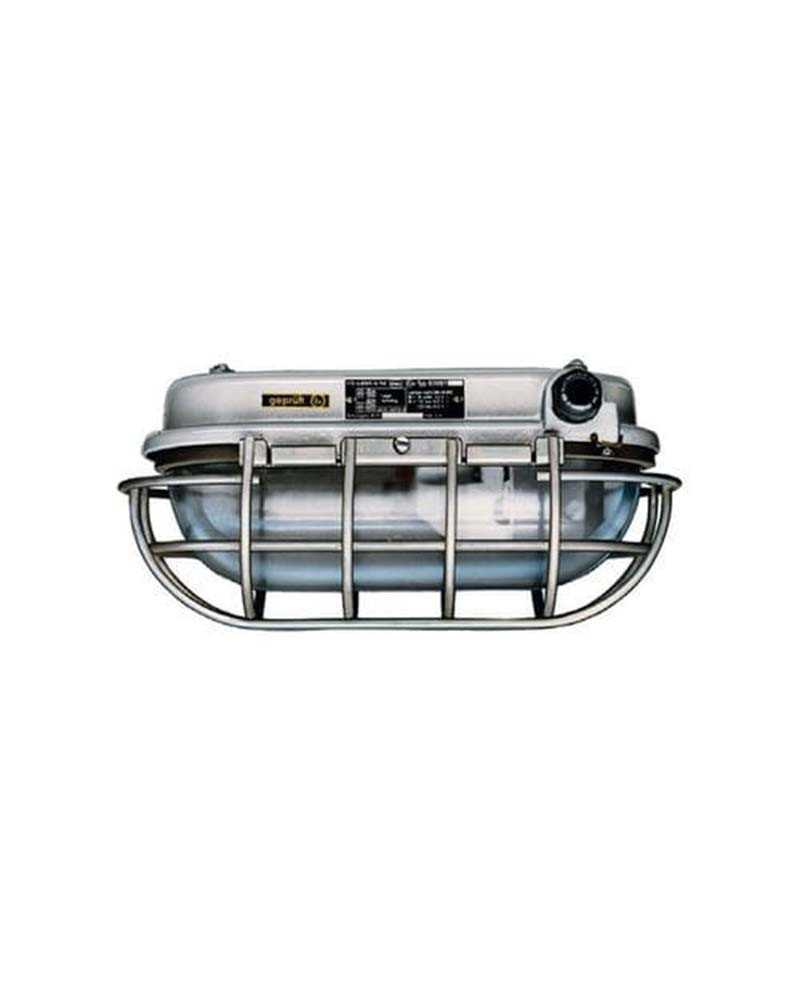

Bulkhead 6388 series - Zone 1

Main features:

  • Certified ATEX and IEC Ex - Zone 1, 2, 21, 22
  • Strong light power for lighting large spaces
  • Two types of lamps available: halogen(up to 77W) or incandescent lamp (up to 100W)
  • Delivered without lamp
  • Weight leger
  • Made in Germany

Customs Code:94051091
Country of origin :DE
Weight:4kg
Stock:Available within 14 days*

Related Download Files
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

The ATEX projector of the 6388 series of innovative design allows you to get a perfect brightness on the large spaces. both indoors and outdoors, as well as in areas 1, 2, 21 and 22 for production and storage in explosive atmospheres. It allows to use two types of lamps: halogen lamps(up to 77W)orincandescent lamp (up to 100W). Its high resistance to shocks and sea water gives it access to industrial environments while maintaining a very long life.

Data sheet

Certificate(s)
ATEX and IECEx
Protection against gas explosion
Ex II 2 G Ex d IIC T.* Gb
Protection against dust explosion
Ex II 2 D Ex tb IIIC T...°C* Db
Material
Polyamide, Résistance aux chocs
Ambiant temperature
-40° à +60°C* (voir fiche technique)
Power supply
12V, 24-48V et 110-240V
Connection
cable 5 m, type H07RN-F, d 7.7 ... 10 mm, 2 x 1 mm2
Dimensions
279 x 92 x 143 mm
