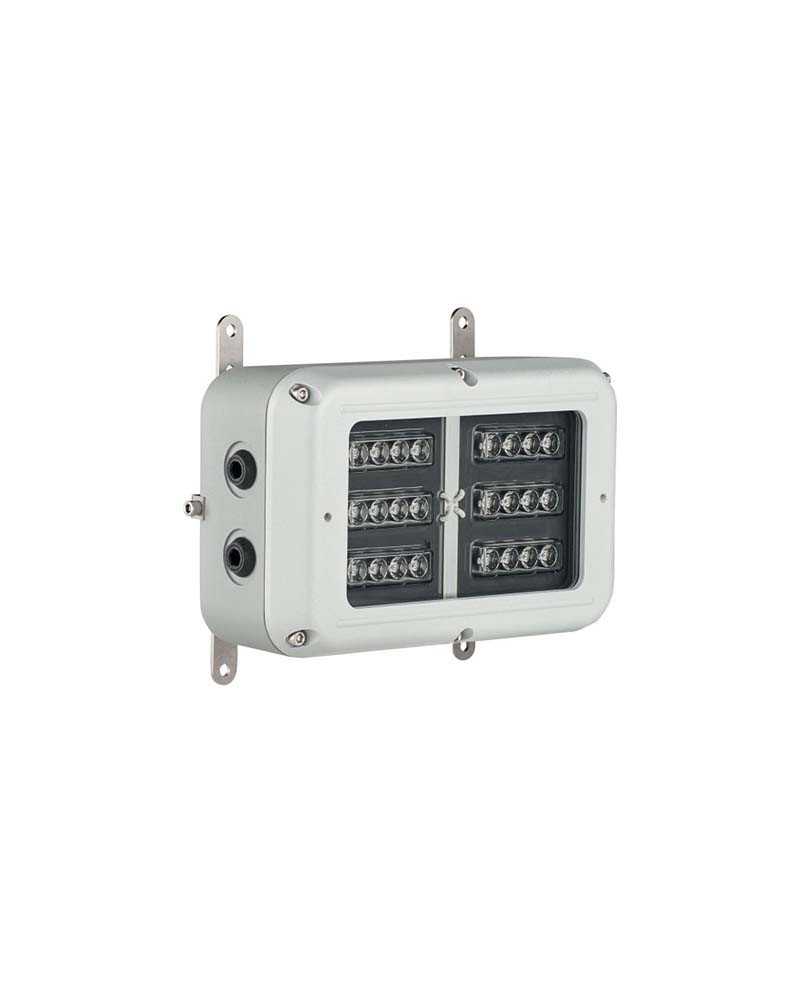

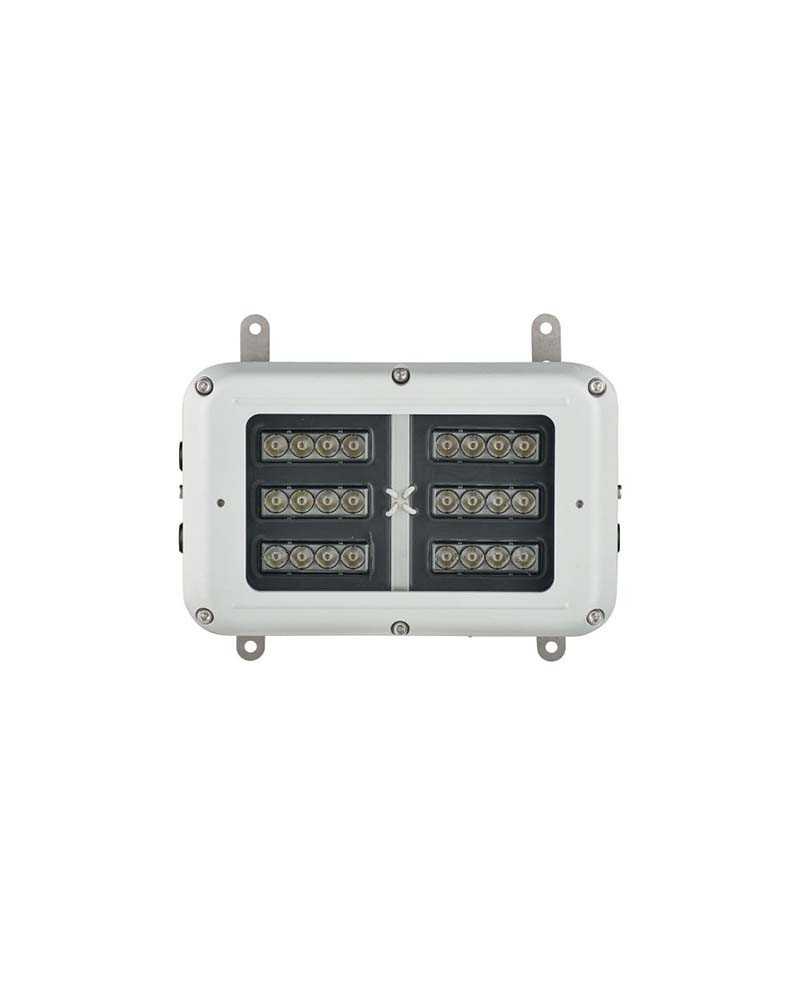

SPARTAN BULKHEAD BL24 - Industrial - Emergency - 2750 lumens

Main features:

  • ultra long-lasting LED
  • Warranty 5 years
  • LED high power
  • Feed: elliptical variants 35x10°/ 60x25°/ 80x30°/ 120x50° or circular 10°, 30°, 50° and 120°
  • Standard versions available
  • Facility and maintenance
  • Large operating temperature range -20° to +46°
  • VARIO technology - easy modification of beam model
  • Battery: Ni/Cd 12V 2.5Ah
  • Battery life: up to 3hrs to 25% - other available options
  • Made in the United Kingdom

Customs Code:94054010
Country of origin :UK
Weight:6kg
Stock:Available within 22 days*

Beam
Power supply
Ask for a quote
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

The SPARTAN Bulkhead range is designed for environmentswhich require high performance and reliable white lighting. Using Raytec's proven long-term LED technology, the BL24 projector is globally certified for all applicationsindustrialrequiring an emergency battery. Its modular design allows the most flexible installation and easy access and maintenance of cables against damage. Thermal management technology ensures a lifetime of 10 years and more, while providing a luminous flux of up to 2,750 lumens. All SPARTAN luminaires have a 5-year warranty.

Data sheet

Implementation
Industry
Marine
Degree of protection
IP66
IP67
Material
Epoxy powder coated marine grade aluminum
Ambiant temperature
-40° à +55°
Power supply
110-254V 50/60Hz AC only - Low voltage: 18-48V AC and 18-69V DC - Extra low voltage: 12V AC/DC
Version
Standard
Power consumption (W)
68W
Luminous flux
jusqu'à 5,000 lm
Color temperature
6,000K+
LED type
PLATINUM SMT LEDs
Cable entries
2xM20 en standard (autre sur demande), livré avec un bouchon obturateur ATEX / IECEx
Dimensions
1295 x 108 x 174mm
