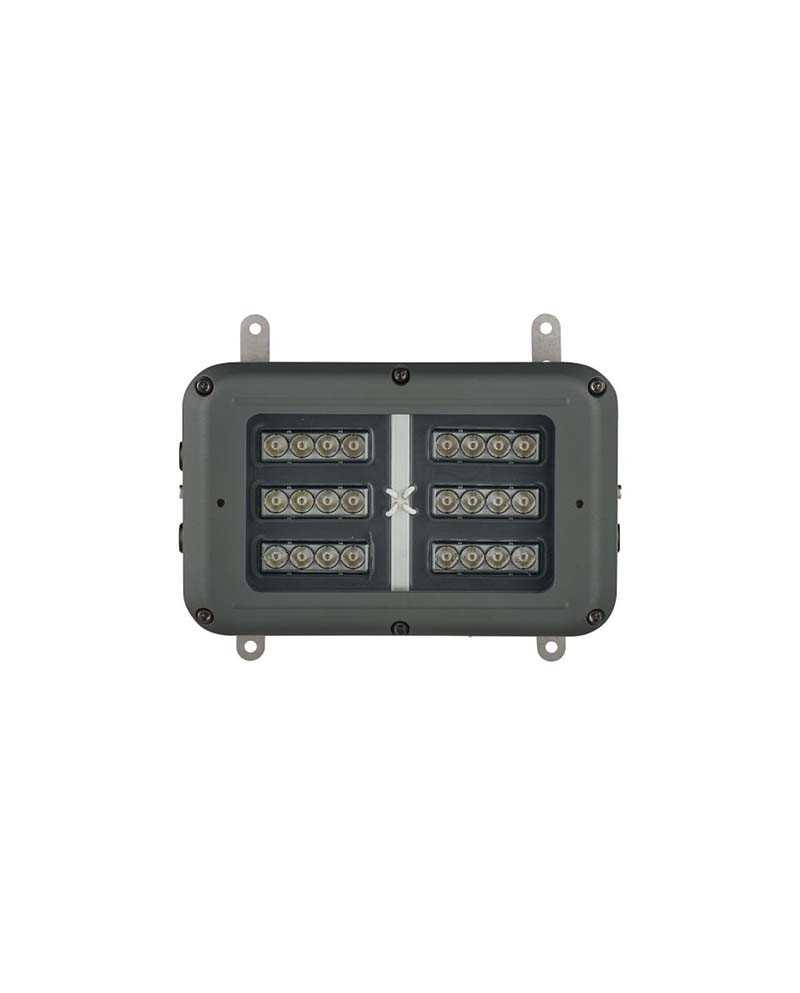

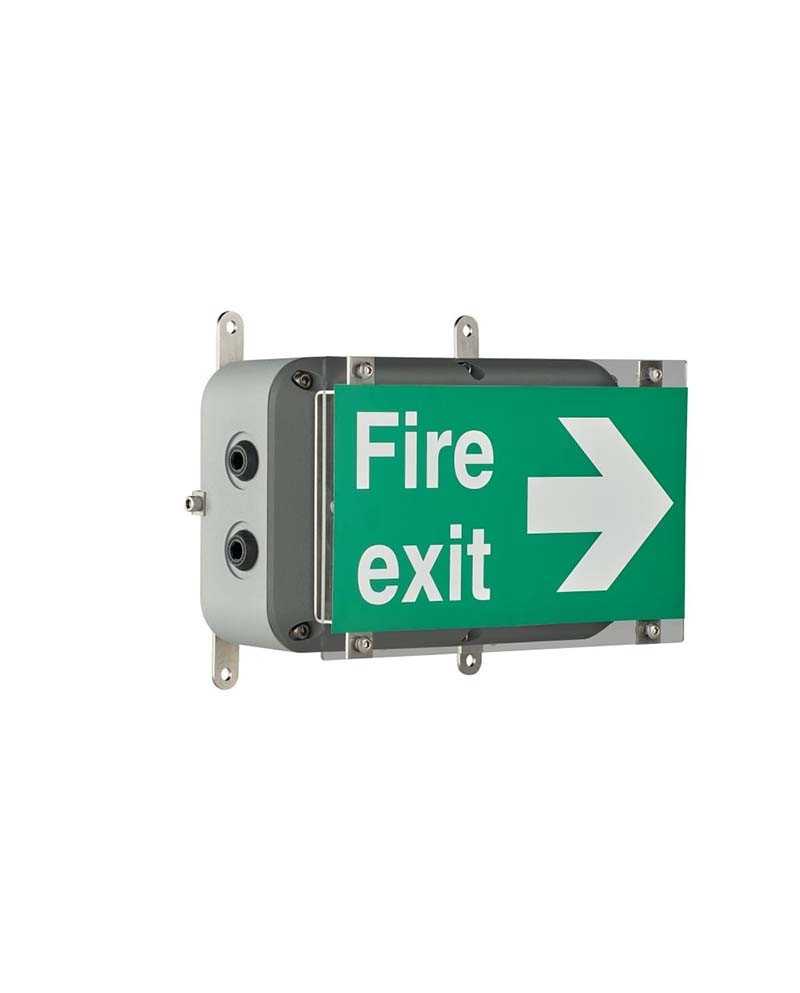

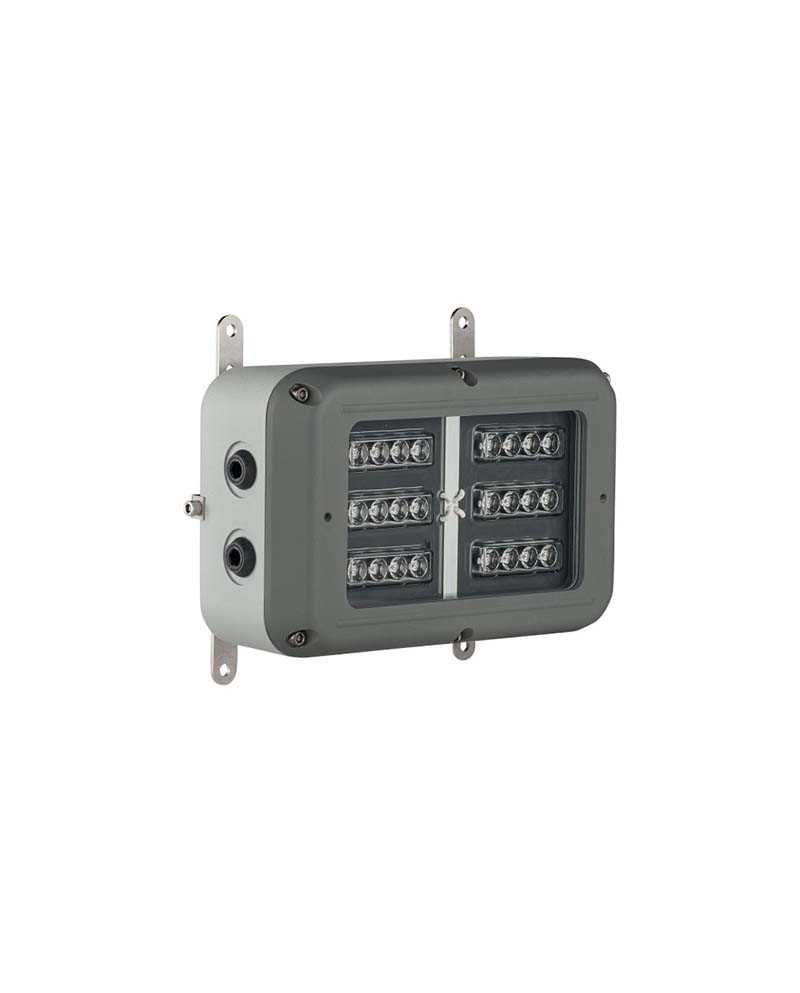

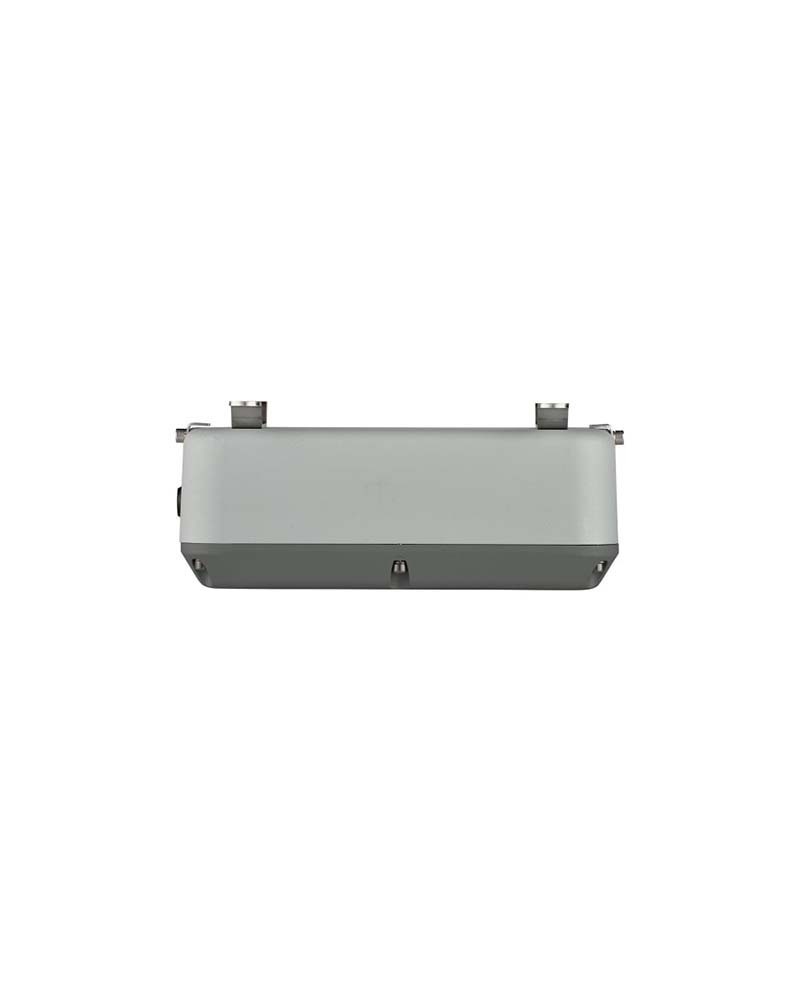

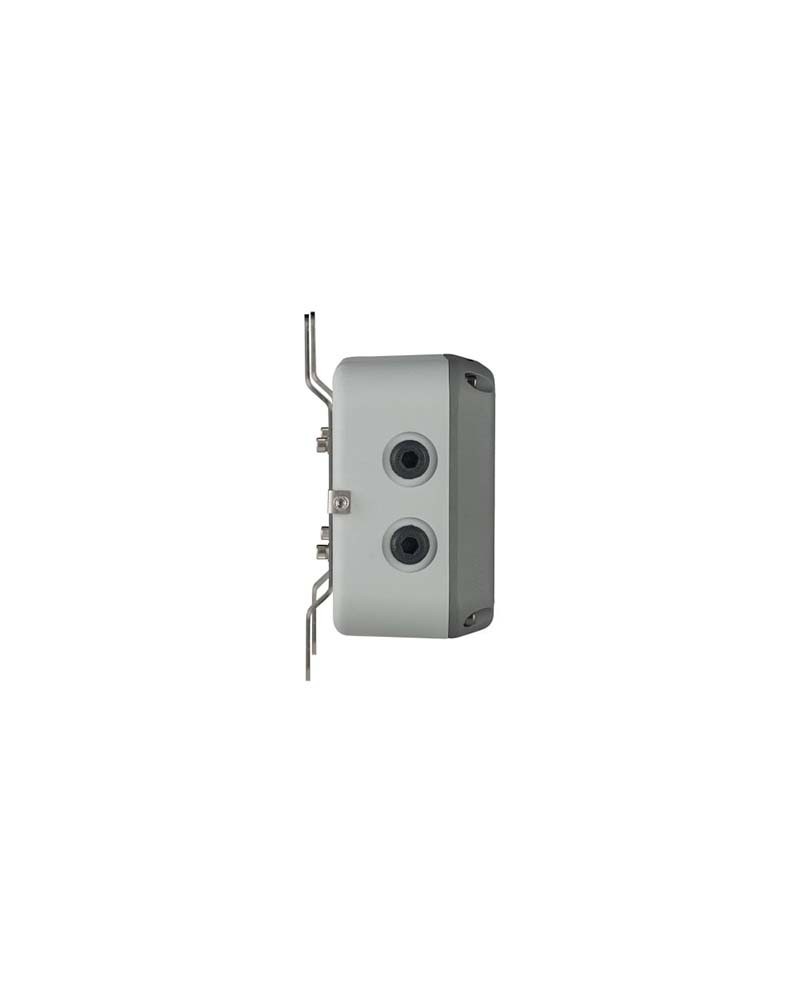

SPARTAN BULKHEAD BL24 - Zone 2 - Emergency - 2750 lumens
Strong points:
- Certified ATEX and IEC Ex - Zone 2
- Certified UL/CSA (including C1D2 and ABS)
- ultra long-lasting LED
- Warranty 5 years
- LED high power
- Feed: elliptical variants 35x10°/ 60x25°/ 80x30°/ 120x50° or circular 10°, 30°, 50° and 120°
- Zone 1 version available
- Standard versions available
- Facility and maintenance
- Large operating temperature range -20° to +46°
- VARIO technology - easy modification of beam model
- Battery: Ni/Cd 12V 2.5Ah
- Battery life: up to 3hrs to 25% - other available options
- Made in the United Kingdom
Customs Code:94054010
Country of origin :UK
Weight:6kg
Stock:Available within 22 days*
Security policy
Delivery policy
The SPARTAN Bulkhead range is designed for explosive atmospheres that require high performance and reliable white lighting. Using Raytec's proven long-term LED technology, the projectoremergencyBL24 is globally certified for all applications in Zone 2requiring an emergency battery. Its modular design allows the most flexible installation and easy access and maintenance of cables against damage. Thermal management technology ensures a lifetime of 10 years and more, while providing a luminous flux of up to 2,750 lumens. All SPARTAN luminaires have a 5-year warranty.
Data sheet
- Certificate(s)
- ATEX, IECEX, UL/CSA
- Material
- Epoxy powder coated marine grade aluminum
- Ambiant temperature
- -40° à +55°
- Power supply
- 110-254V 50/60Hz AC only - Low voltage: 18-48V AC and 18-69V DC - Extra low voltage: 12V AC/DC
- Version
- Standard
- Power consumption (W)
- 68W
- Luminous flux
- jusqu'à 5,000 lm
- Color temperature
- 6,000K+
- LED type
- PLATINUM SMT LEDs
- Cable entries
- 2xM20 en standard (autre sur demande), livré avec un bouchon obturateur ATEX / IECEx
- Dimensions
- 1295 x 108 x 174mm
