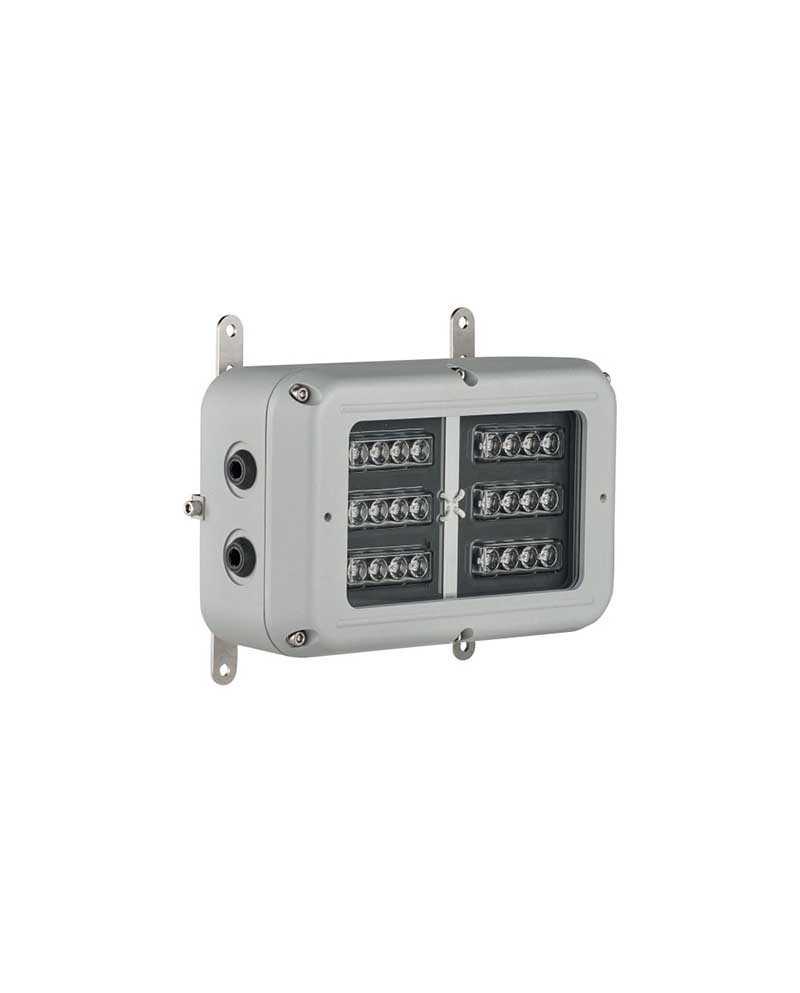

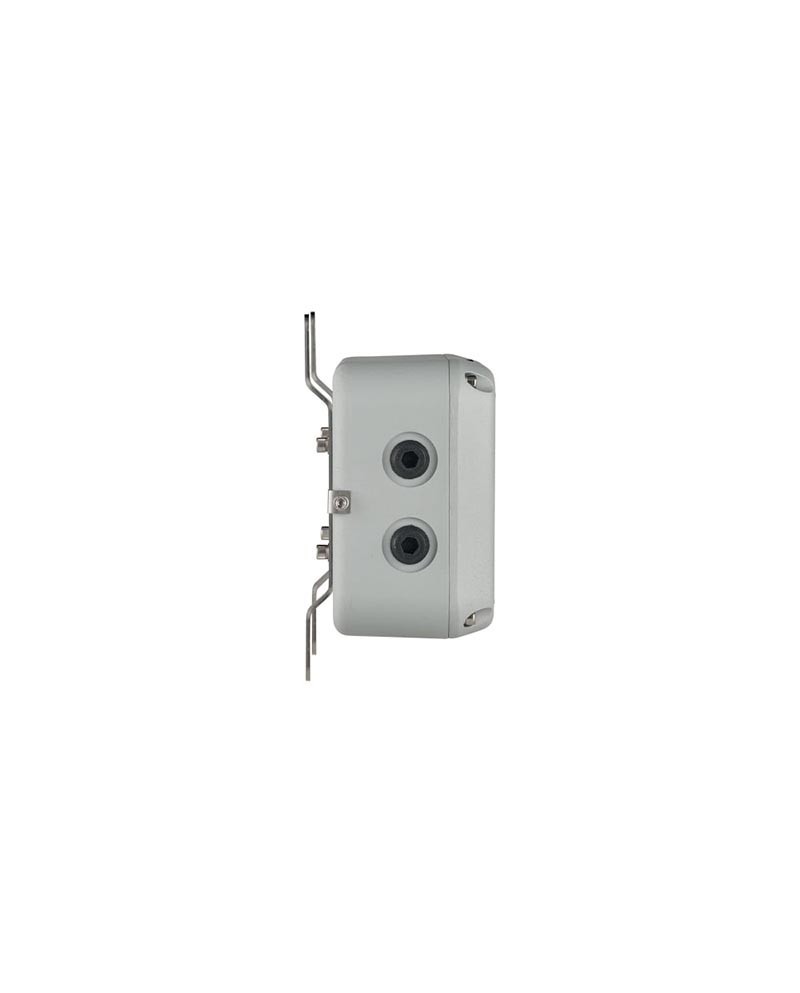

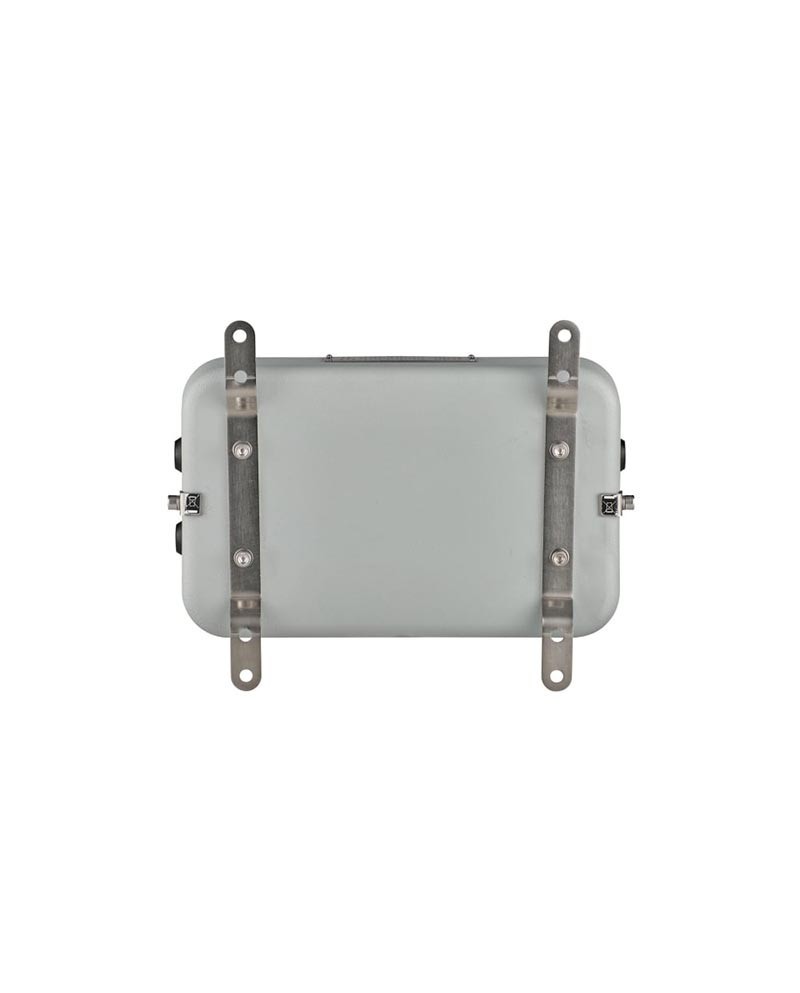

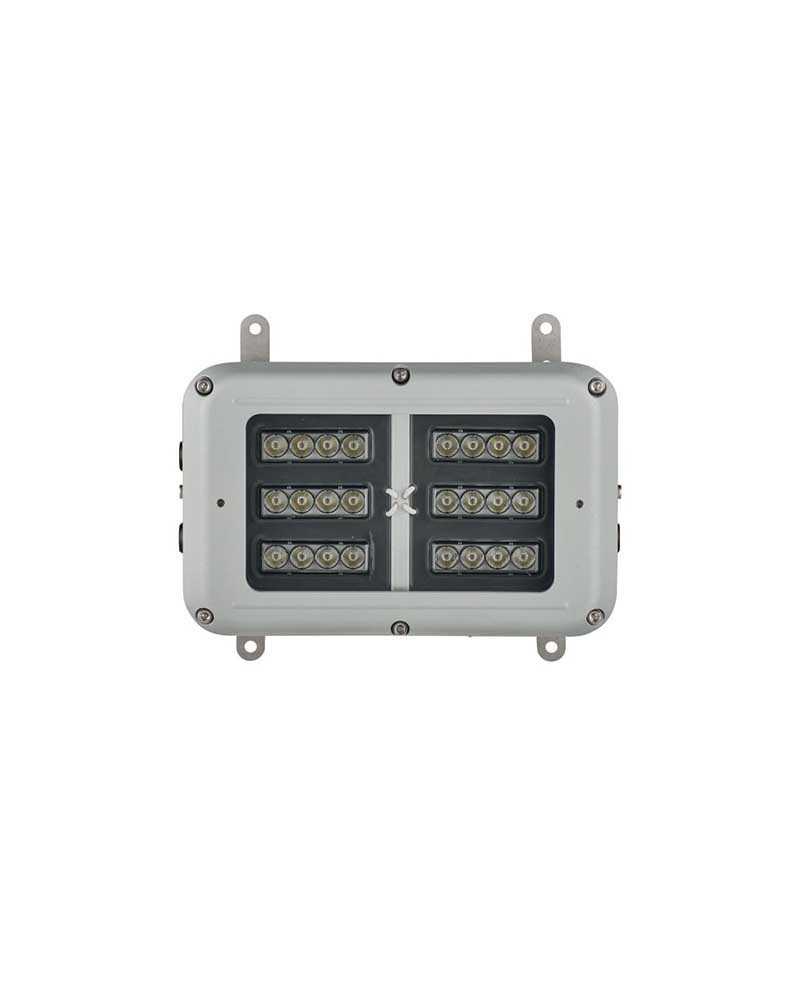

SPARTAN BULKHEAD BL24 - Zone 1 - Emergency - 2500 lumens

Strong points:

  • Certified ATEX and IEC Ex - Zone 1
  • Certified UL/CSA (including C1D2 and ABS)
  • ultra long-lasting LED
  • Warranty 5 years
  • LED high power
  • Feed: elliptical variants 35x10°/ 60x25°/ 80x30°/ 120x50° or circular 10°, 30°, 50° and 120°
  • Zone 2 version available
  • Standard versions available
  • Facility and maintenance
  • Large operating temperature range -20° to +46°
  • VARIO technology - easy modification of beam model
  • Battery: 2.5Ah
  • Battery life: up to 3hrs to 25% - other available options
  • Made in the United Kingdom

Customs Code:94054010
Country of origin :UK
Weight:6kg
Stock:Available within 22 days*

Power supply
Beam
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



The SPARTAN Bulkhead range is designed for explosive atmospheres that require high performance and reliable white lighting. Using Raytec's proven long-term LED technology, the projectoremergencyBL24 is globally certified for all applications in Zone 1requiring an emergency battery. Its modular design allows the most flexible installation and easy access and maintenance of cables against damage. Thermal management technology ensures a lifetime of 10 years and more, while providing a luminous flux of up to 2,500 lumens. All SPARTAN luminaires have a 5-year warranty.

Certificate(s) ATEX, IECEX, UL/CSA
Material Epoxy powder coated marine grade aluminum
Ambiant temperature -40° à +55°
Power supply 110-254V 50/60Hz AC only - Low voltage: 18-48V AC and 18-69V DC - Extra low voltage: 12V AC/DC
Version Standard
Power consumption (W) 68W
Luminous flux jusqu'à 5,000 lm
Color temperature 6,000K+
LED type PLATINUM SMT LEDs
Cable entries 2xM20 en standard (autre sur demande), livré avec un bouchon obturateur ATEX / IECEx
Dimensions 1295 x 108 x 174mm
Reference E236A411
