SPARTAN Bulkhead BL24 for Zone1

Key features:

  • ATEX and IEC Ex certified - Zone 1
  • UL / CSA certified (including C1D2 and ABS)
  • Ultra long lasting LED
  • 5 year warranty
  • High power LED
  • Beam: elliptical variants 35x10 ° / 60x25 ° / 80x30 ° / 120x50 ° or circular 10 °, 30 °, 50 ° and 120 °
  • Zone 2 version available
  • Back-up versions available
  • Ease of installation and maintenance
  • Wide operating temperature range -50 ° to + 55 °
  • VARIO technology - easy modification of the beam pattern
  • Made in UK

Customs code: 94054010
Country of origin: UK
Weight: 5kg
Stock: Available within 22 days *

Beam
Power supply
Ask for a quote
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

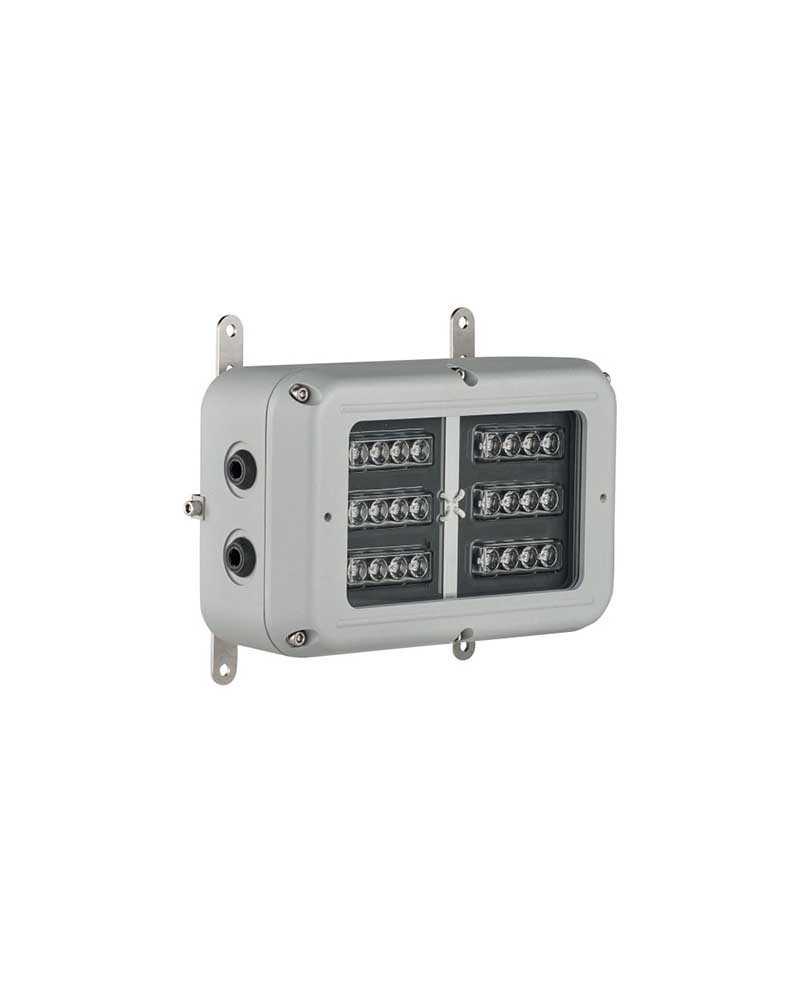

The SPARTAN Bulkhead range is designed for explosive atmospheres that require high performance and reliable white lighting. Using proven long life LED technology, the BL24 floodlight is globally certified for all Zone 1 applications. Its modular design allows for the most flexible installation and easiest cable access and maintenance from damage. Thermal management technology ensures a lifespan of 10 years or more, while providing a light output of up to 2,500 lumens. All SPARTAN luminaires have a 5-year warranty.

Data sheet

Certificate(s)
ATEX, IECEX, UL/CSA
Material
Sea-grade aluminum coated with epoxy powder
Ambiant temperature
-40° à +55°
Power supply
110-254V 50/60Hz AC only - Low voltage : 18-48V AC and 18-69V DC - Extra low voltage : 12V AC/DC
Version
Standard
Power consumption (W)
68W
Luminous flux
jusqu'à 5,000 lm
Color temperature
6,000 K+
LED type
PLATINUM SMT Leds
Cable entries
2xM20 en standard (autre sur demande), livré avec un bouchon obturateur ATEX / IECEx
Dimensions
1295 x 108 x 174mm
