List of products by brand STEUTE
EX GF
- Ex 1 and 21 zones
- 1 pedal
- Corrosion-resistant aluminum case
- Without protection hood
- Salin fog test according to DIN EN ISO 9227
- High sealing index IP66 / IP67
- temperatures resistant to -40 ° C to +55 ° C
- Metal screws and accessories in stainless steel
- Connection chamber
- Low height pedal
- Attention: Please indicate international approvals necessary!
- 1 pedal
- Corrosion-resistant aluminum case
- Without protection hood
- Salin fog test according to DIN EN ISO 9227
- High sealing index IP66 / IP67
- temperatures resistant to -40 ° C to +55 ° C
- Metal screws and accessories in stainless steel
- Connection chamber
- Low height pedal
- Attention: Please indicate international approvals necessary!
The ex-GFI 1Ö / 1S control pedal is specially designed to operate in extreme industrial environments, particularly under temperature conditions ranging from -40 ° C to + 55 ° C. This device is certified IP66 / 67, which guarantees maximum protection against dust, splashing water, and temporary immersions. Suitable for explosive environments, this pedal complies with ATEX standards for use in hazardous areas.
References Manufacturer: 1318066
STE0139
Data sheet
- Ambiant temperature
- -40°C to +55°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- IP55.IP66.IP67
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex of
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy

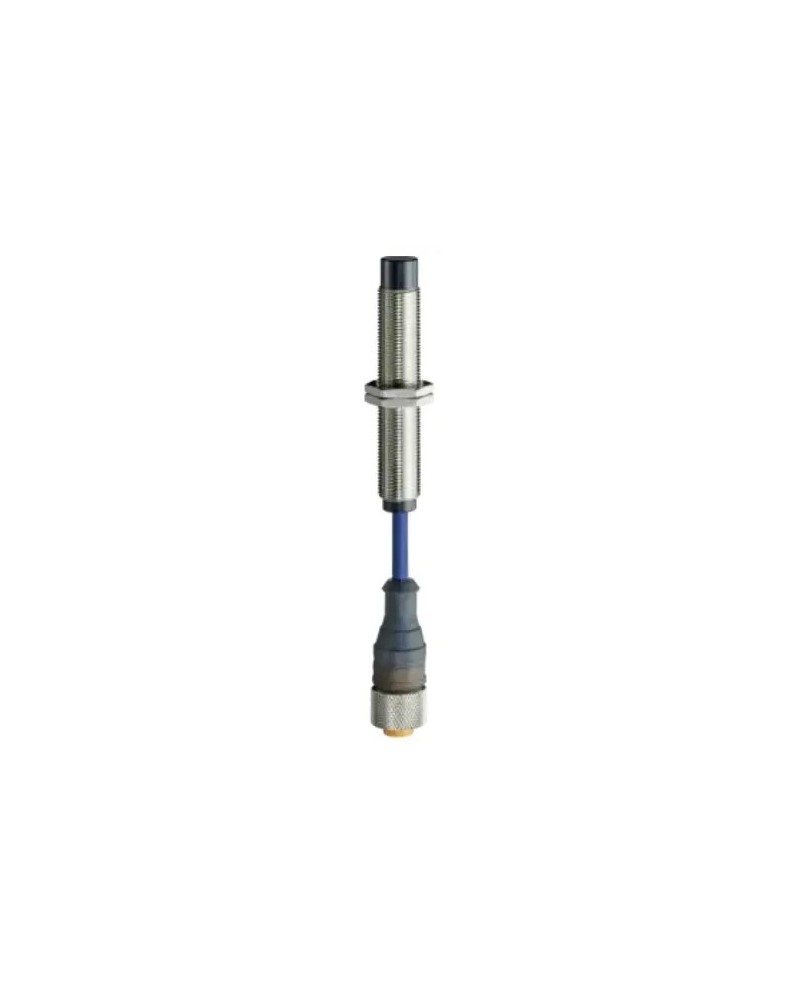

ATEX Inductive Sensor Ex RF IS Series
- Zone Ex 1 and 21 in combination with universal transmitter ex rf 96 st
- Metal housing
- M12 x 1 thread
- non-flush mounting
- with M12 connection, 4 poles
- Metal housing
- M12 x 1 thread
- non-flush mounting
- with M12 connection, 4 poles
The external wireless inductive sensor is M12 NB-ST 2 m is designed to detect the presence or absence of metal objects without physical contact, in hazardous environments. This sensor is specially adapted to areas where wiring is difficult or forbidden, while respecting safety standards for explosive environments (Ex).
References Manufacturer: 1393074,1282037,1476721
STE0095
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T4
- Warranty
- 2¨
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex i (intrinsic safety)
- Certificates
- Atex.iecex
- Material
- Nickel-plated brass

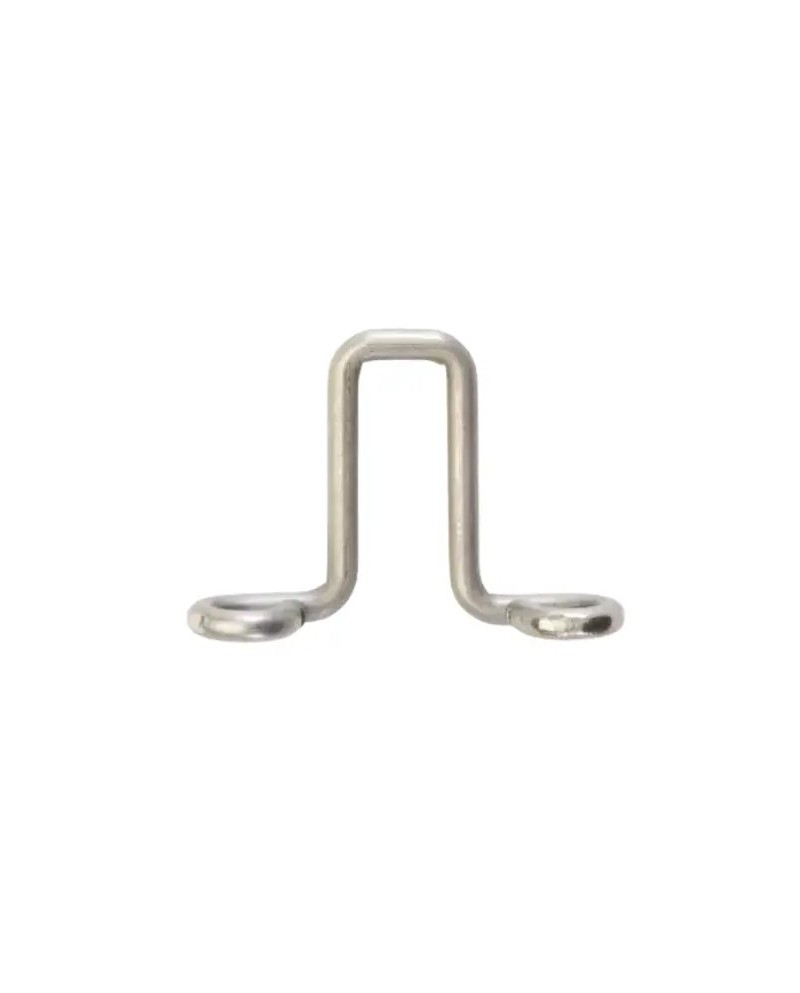

ES / EX 14 AZ Actuator
Accessories for 14 Az Extreme and Ex 14 AZ models include various items that optimize the features of these systems. Although the specific list of accessories can vary depending on the model and needs of the user
References Manufacturer: 1179003,1185190,1180267
STE0092
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone
- Certificates
- Atex.ce

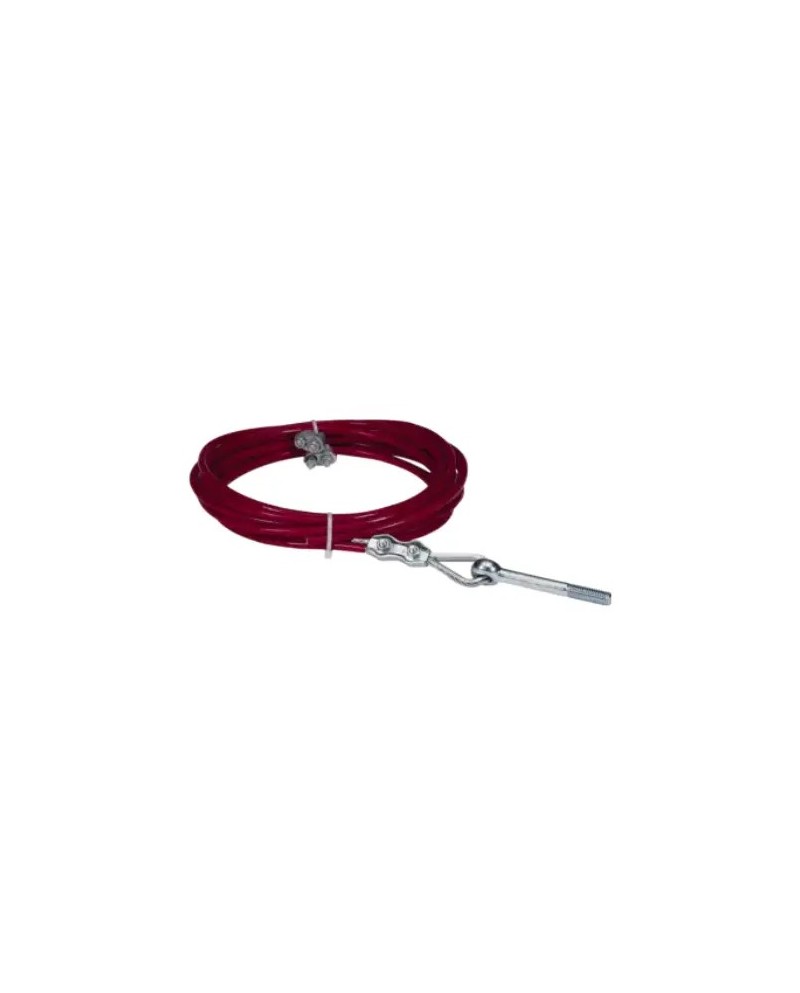

Cable kit
- Cable kit consisting of:
- 10m cable with metal core Ø 3 mm and red PVC sheath Ø 5mm
- 2 DIN 741 cable clamps
- 1 Cosse-Heart DIN 65457
- 1 DIN 444 eye bolt and 1 duplex cable tie
- 10m cable with metal core Ø 3 mm and red PVC sheath Ø 5mm
- 2 DIN 741 cable clamps
- 1 Cosse-Heart DIN 65457
- 1 DIN 444 eye bolt and 1 duplex cable tie
The 10m complete cable kit is a set designed for industrial and safety applications. It includes a rugged 10 meter cable, suitable for various uses such as cable emergency stops, safety switches or other devices requiring long and reliable connection.
References Manufacturer: 1041633,1041634,1041645,1041635,1041641,1041647,1041642,1041628
STE0069
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone

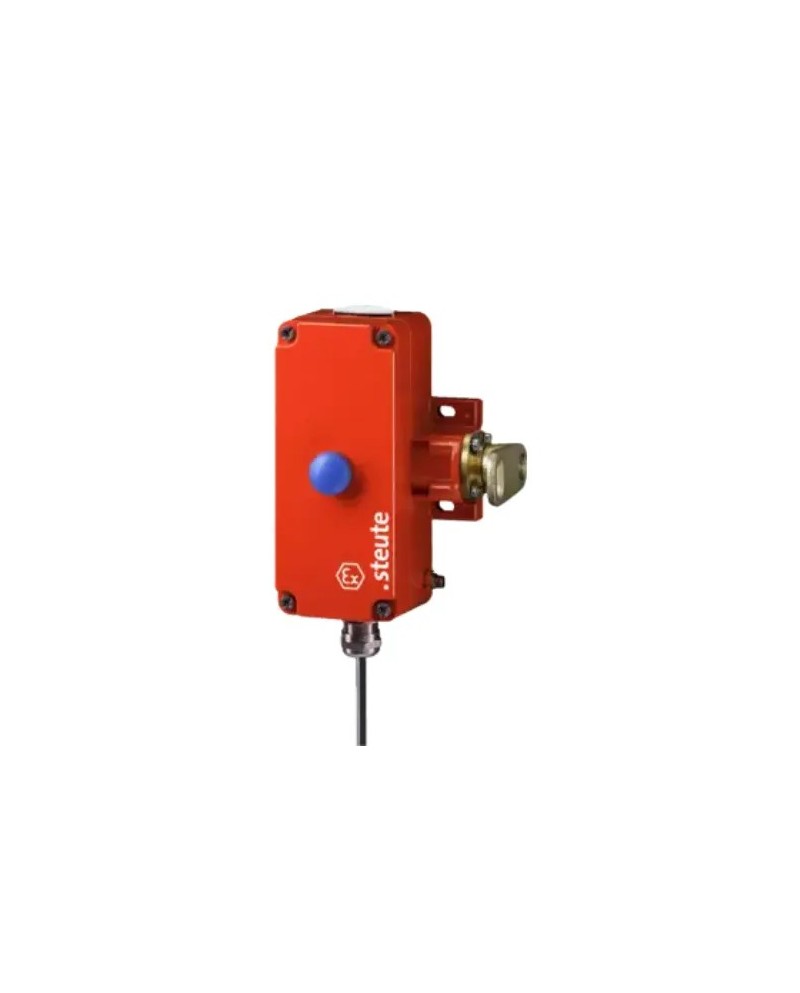

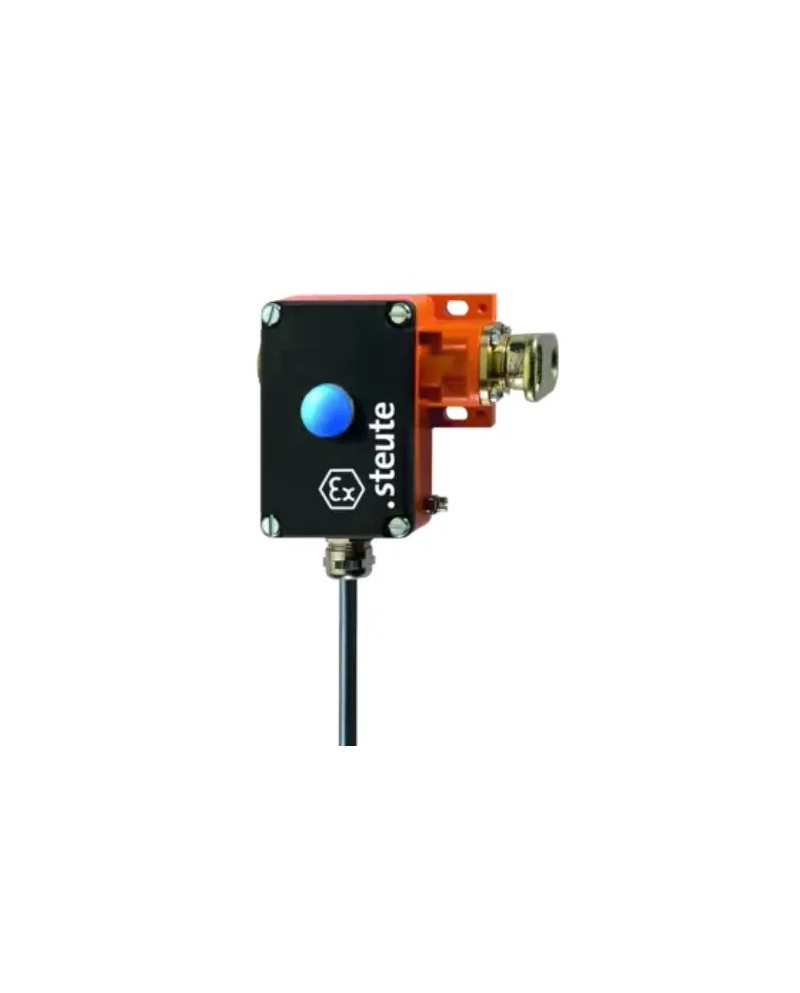

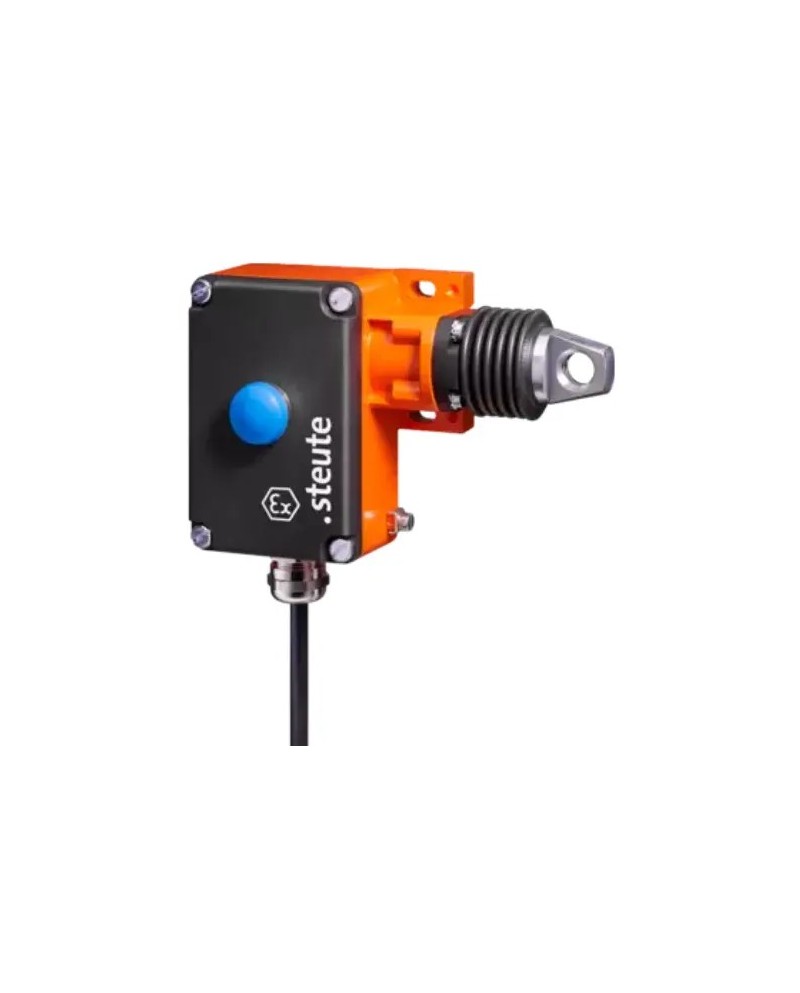

ATEX Cable Emergency Stop Ex ZS 73 Series
- Ex 1 and 21 zones
- 2 contacts
- Cable length up to 130 m
- Adjustable spring force: 120-180 N
- Push-button reset (VD)
- Traction detection and cable breaking
- Waterproofing cuff for fouling protection
- Attention: Please indicate international approvals necessary!
- 2 contacts
- Cable length up to 130 m
- Adjustable spring force: 120-180 N
- Push-button reset (VD)
- Traction detection and cable breaking
- Waterproofing cuff for fouling protection
- Attention: Please indicate international approvals necessary!
The EX ZS 73 1Ö / 1S WVD is a zipper designed for industrial explosive atmosphere environments, requiring high robustness safety devices. It is particularly suitable for installations where a higher tensile force is needed for activation.
References Manufacturer: 1446391,1048125,1048127,1177689,1048157,1048180,1401136,104 8158,1183019,1177987,1178234,1182417,1182418,1182048,1180514
STE0057
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
Ex st 61
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- UN release
- Retention force 1000 N
- Connecting chamber Fe: with auxiliary unlocking by triangular key M5
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- UN release
- Retention force 1000 N
- Connecting chamber Fe: with auxiliary unlocking by triangular key M5
- Attention: Please indicate international approvals necessary!
The Ex STM 295 1Ö1S / 2Ö-R-FE safety interlocking device is designed for industrial environments requiring high levels of safety. This interlock protects workers and equipment by ensuring a secure interruption of systems in case of unauthorized or dangerous access. Specifically designed for explosive environments, this device complies with ex standards.
References Manufacturer: 1047851,1189145
STE0050
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T4
- Warranty
- 2¨
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Thermoplastic

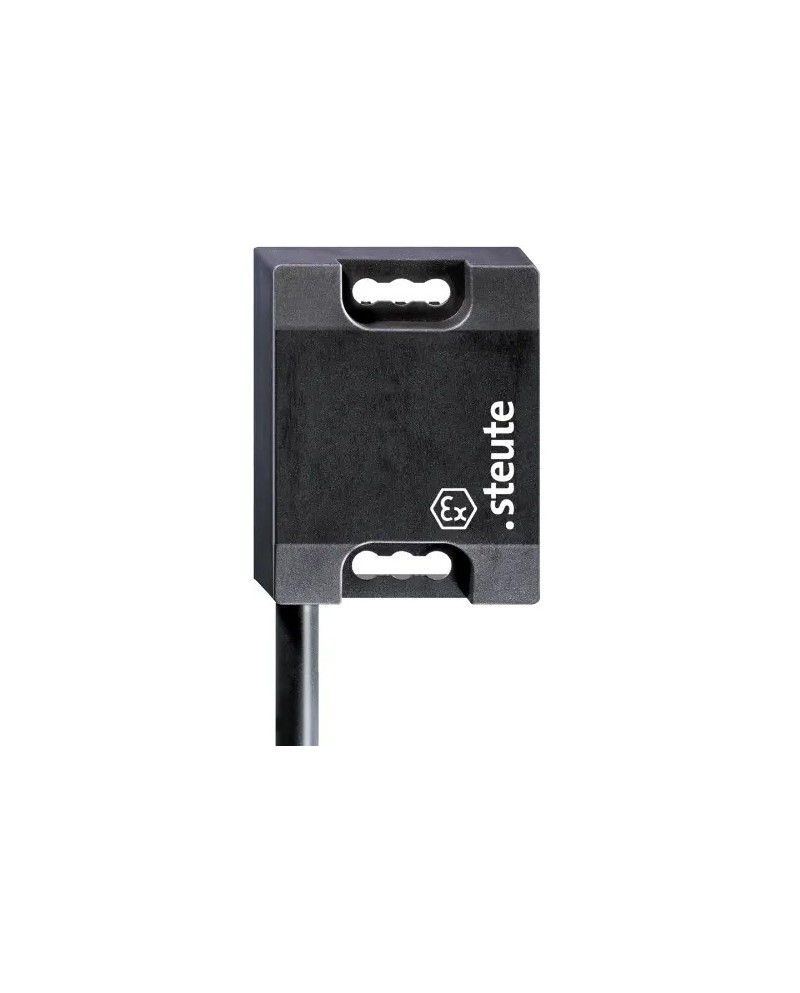

Safety sensor ATEX Series EX RC SI 56
- Ex 1 and 21 zones
- IP67
- Plastic case
- Long life
- Reed contacts, coded
- Front actuation
- Switching distance up to 6 mm
- IP67
- Plastic case
- Long life
- Reed contacts, coded
- Front actuation
- Switching distance up to 6 mm
The ex officous safety sensor if 56 1000 / 1S - 10m is a device designed to ensure secure monitoring of removable, pivoting or sliding guards in industrial explosion environments.
References Manufacturer: 1185923,1189255,1182965,1182510,1184598,1190301,1189265,1184827,1189271, 1184434,1189262,1181390,1183009,1184620,1187207,1189273,1183978,1185181
STE0045
Data sheet
- Ambiant temperature
- -20°C to +70°C
- Temperature class
- T6
- Warranty
- 2¨
- Feed
- 24V DC
- Waterproofing protection (IP)
- Ip67
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/2
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- Atex.iecex
- Material
- Plastic
- Certificat_atex-en_us
- PTB 08 ATEX 2027 x
- Certificat_iecex-en_us
- IECEX PTB 08.0042 x
- Body colors
- Black

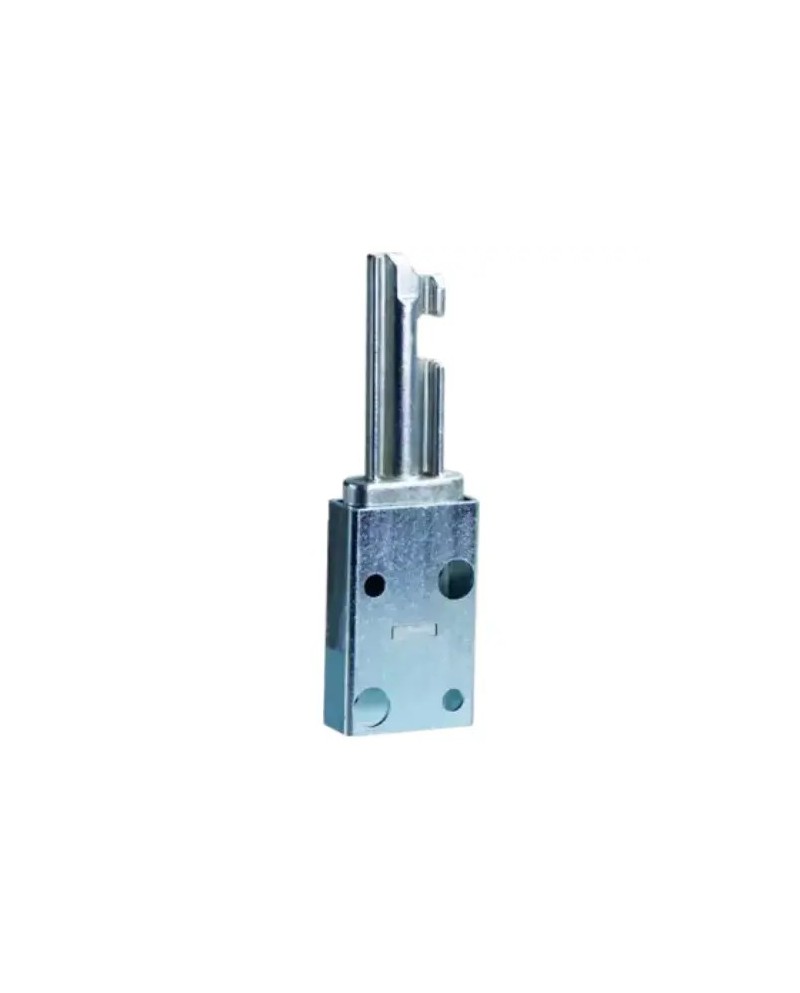

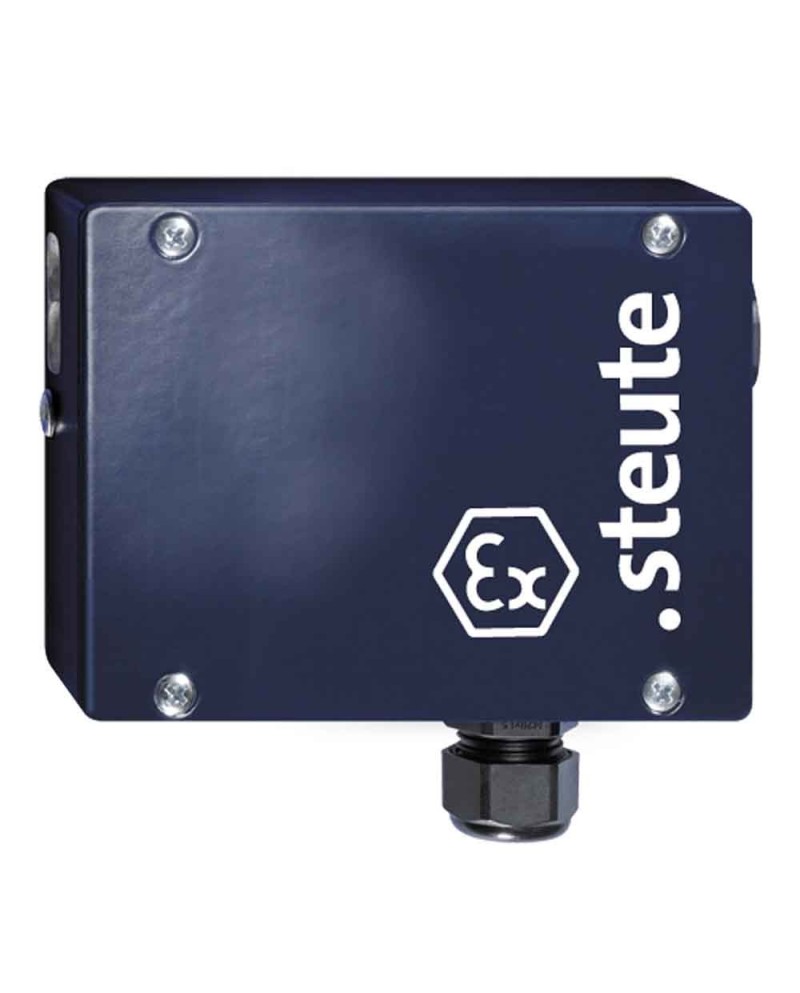

AZM 415 Series ATEX Magnetic Lock
- For sliding doors
- Spring mounted actuator
- Spring race at max. 6 mm
- Spring mounted actuator
- Spring race at max. 6 mm
References Manufacturer: 1171889,1171890,1171892,1184310,1182251,1172017,1172018,11860 90,1186306,1172019,1172020,1172016,1169106,1182198,1188480,116 9104,1179088,1181881,1183348,1181999,1181998,1188501,1182000.1 181882,1180752,1283967,1183280,1184885,1183751,1175099,1188502
STE0021
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone

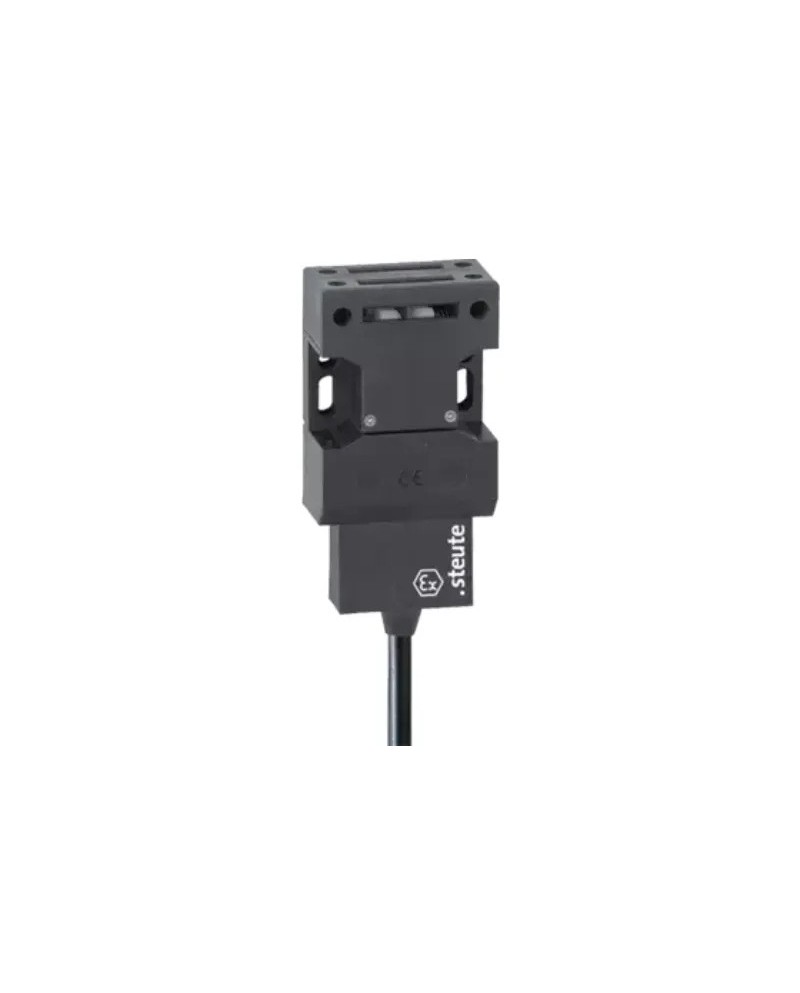

ATEX SAFE SAFETY SWITCH SERIES EX AZ 16
- Ex 1 and 21 zones
- Plastic case
- multiple coding of the actuator
- with connection cable
- Plastic case
- multiple coding of the actuator
- with connection cable
The AZ 16 1Ö / 1S Safety Switch with separate actuator is designed to ensure high safety in industrial environments with explosion risks. It is particularly suitable for doors protection systems and machine covers in explosive zones.
References Manufacturer: 1175316,1172494,1172484,1178556,1173186,1172472,1172264,1188049,1178601,1178217, 1177832,1180935,1178137,1210562,1210566,1182942,1210560,1210553,1210564,1210556
STE0020
Data sheet
- Ambiant temperature
- -20 ° C to 90 ° C
- Temperature class
- T5
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.ce
- Material
- Thermoplastic
Ex 12 dl
- Ex 1 and 21 zones
- Metal housing, hard
- Sudden rupture, contact inverter with simple break
- Assembly in series possible
- with connection cable
- Actuator: Long DL rotary lever
- max actuation speed. 0.5 m / s with a 45 ° vertical attack angle
- Abrasion resistant plastic roll
- Rotary lever adjustable in steps from 10 ° to left or right
- Attention: Please indicate international approvals necessary!
- Metal housing, hard
- Sudden rupture, contact inverter with simple break
- Assembly in series possible
- with connection cable
- Actuator: Long DL rotary lever
- max actuation speed. 0.5 m / s with a 45 ° vertical attack angle
- Abrasion resistant plastic roll
- Rotary lever adjustable in steps from 10 ° to left or right
- Attention: Please indicate international approvals necessary!
The EX 12 dL - 2M position switch is a safety device designed for potentially explosive environments. It detects the position of a movable element, such as a door or lid, and to interrupt the electrical circuit in case of opening. With a cable length of 2 meters, it offers installation flexibility. Its robust construction and its specific features make it an ideal choice for demanding industrial applications.
References Manufacturer: 1189096,1189100
STE0015
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- Body colors
- Black (RAL9004)
ATEX SERIES EX 12 POSITION SWITCH
- Ex 1 and 21 zones
- Metal housing, hard
- Sudden rupture, contact inverter with simple break
- Assembly in series possible
- with connection cable
- Actuator: push
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
- Attention: Please indicate international approvals necessary!
- Metal housing, hard
- Sudden rupture, contact inverter with simple break
- Assembly in series possible
- with connection cable
- Actuator: push
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
- Attention: Please indicate international approvals necessary!
The EX 12 - 2M position switch is a safety device designed to detect and signal the position of mechanical equipment in explosive risk environments. This switch is specifically designed to operate under demanding industrial conditions, particularly in explosive atmospheres (ATEX zones) areas.
References Manufacturer: 1044190,1044196,1044639,1044640,1189125,1189126,1189096,1189100,1189106,1044681.1 044798,1044786,1189073,1189078,1189083,1044842,1189033,1044286,1044379,1044370,104 4733,1044736,1189128,1044757,1044693,1180847,1044247,1044243,1044510,1044507,10516 33,1189087,1044565,1044559,1189071,1177194,1186420,1189089,1177755,1044436,1044435
STE0012
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy

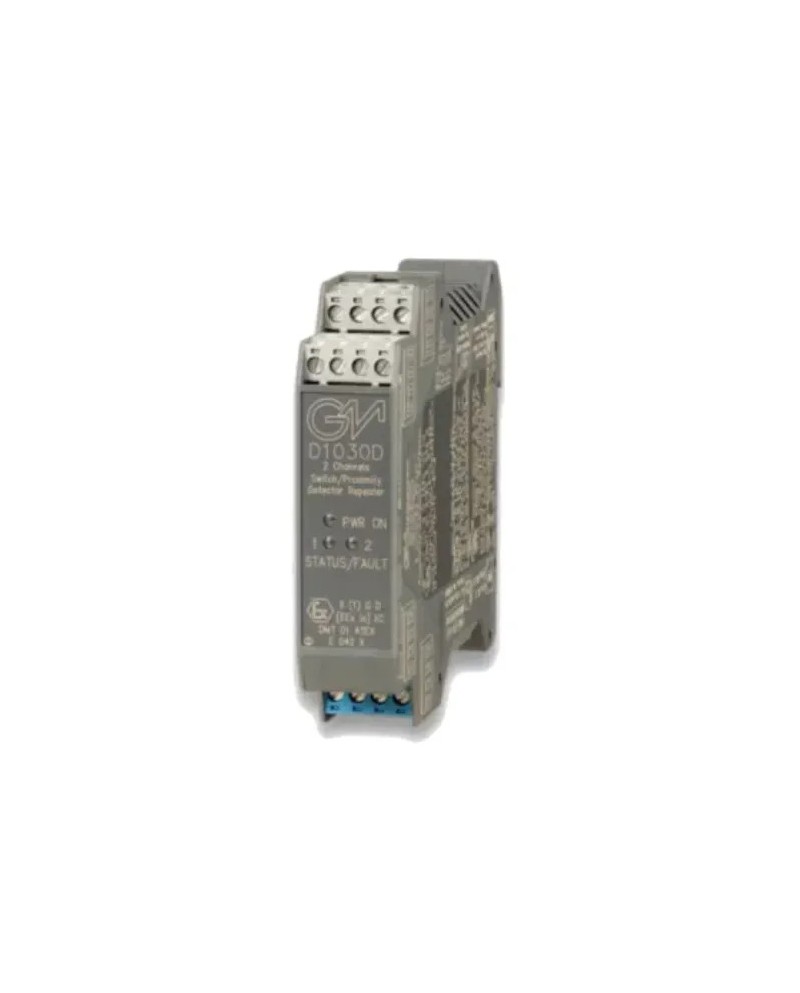

Ex IS separator amplifiers
- Ex 0 zone inlet (Ex 20 zone), division 1, installation in zone Ex 2, division 2 possible
- 24 VDC
- Potential free contact input or inductive sensor ex according to Namur
- 2-channel input, relay output 1 contact inverter / channel
- 24 VDC
- Potential free contact input or inductive sensor ex according to Namur
- 2-channel input, relay output 1 contact inverter / channel
The ex is D 1030 d separator amplifier is a device designed to strengthen and distribute signals in industrial environments, particularly in areas where intrinsic safety is crucial. This type of equipment is often used in industrial automation systems, communication systems and environments where specific safety standards are in effect.
References Manufacturer: 1207540,1207543,1207549,1207553,1207555,120 7559,1207562,1207564,1208193,1208195,1208198
STE0001
Data sheet
- Temperature class
- T4
- Warranty
- 2¨
- Application / usage
- ATEX zone
- Gas class
- IIA
- Certificates
- Atex.iecex
EX GFM
- Ex 1 and 21 zones
- 2 pedals
- Metal housing
- Low height pedal
- with connection cable
- Attention: Please indicate international approvals necessary!
- 2 pedals
- Metal housing
- Low height pedal
- with connection cable
- Attention: Please indicate international approvals necessary!
The ex-GFM 2 control pedal is designed for use in potentially explosive industrial environments, where safety and robustness are essential. It has a resistant design and is specifically suitable for explosion-hazardous areas, while providing a secure manual control of machinery and equipment.
References Manufacturer: 1180291,1053204,1048539
STE0140
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2 years
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
Ex 61 TFL
- Ex 1 and 21 zones
- Metal housing
- with connection cable
- Actuator: long spring rod with TFL steel tip
- with steel cup in the shape of cap
- Rogus stemming in all directions
- the spring elasticity compensates for contact races exceeding the max switching angle
- Attention: Please indicate international approvals necessary!
- Metal housing
- with connection cable
- Actuator: long spring rod with TFL steel tip
- with steel cup in the shape of cap
- Rogus stemming in all directions
- the spring elasticity compensates for contact races exceeding the max switching angle
- Attention: Please indicate international approvals necessary!
The Ex ex 61 TFL 1Ö / 1S - 3M position switch is a device designed to ensure safety and control in industrial explosion environments.
References Manufacturer: 1181343
STE0103
Data sheet
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy

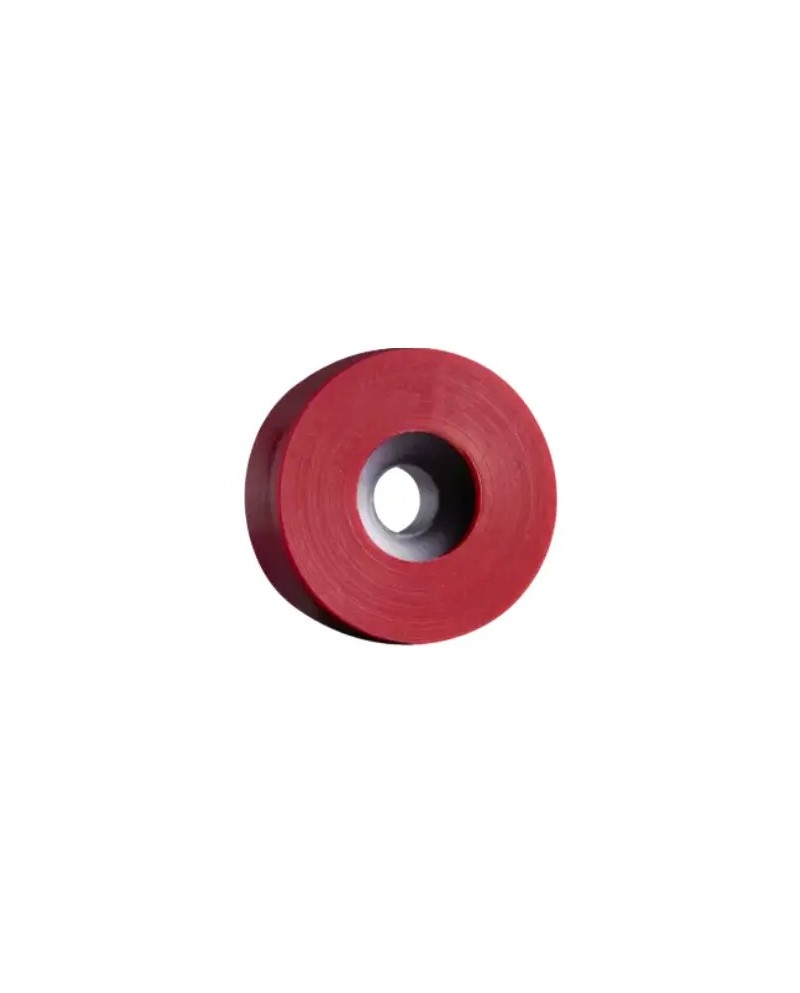

Actuation magnets for magnetic sensors
- Polyamide plastic housing 6.6, red s
- Magnet: ferrite barium
- temperatures resistant to -40 ° C to +80 ° C
- Magnet: ferrite barium
- temperatures resistant to -40 ° C to +80 ° C
The M 100 N operating magnet is a component used in safety or control devices, including magnetic sensors and position switches. It is designed to provide powerful and reliable magnetic force, enabling detection or interlock systems.
References Manufacturer: 1042609,1033966,1042615,1033963,1042610,1033967,1042616,103397,1042617, 1033968,1042618,1039953,1033970,1033982,1033965,1042611,1042612,1189024,1186763
STE0070
Data sheet
- Ambiant temperature
- -40 ° C to + 80 ° C
- Warranty
- 2¨
- Application / usage
- ATEX zone
- Body colors
- Red
ATEX Emergency Emergency Stop Ex ZS 73 S Series
- Ex 1 and 21 zones
- Metal housing
- 2 contacts
- Cable length up to 2 x 100 m
- Push-button reset (VD)
- Traction detection and cable breaking
- Attention: Please indicate international approvals necessary!
- Metal housing
- 2 contacts
- Cable length up to 2 x 100 m
- Push-button reset (VD)
- Traction detection and cable breaking
- Attention: Please indicate international approvals necessary!
The EX ZS 73 S 1Ö / 1S VD is a cable emergency stop device designed for use in industrial environments with explosive atmospheres. It allows to quickly stop machines or systems in case of emergency, by pressing a safety cable. This model is specifically designed to provide a reliable and secure response in dangerous areas.
References Manufacturer: 1178045,1182238,1180510
STE0058
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
- Certificat_atex-en_us
- PTB 11 ATEX 1003 x
- Certificat_iecex-en_us
- IECEX PTB 07.0034 x

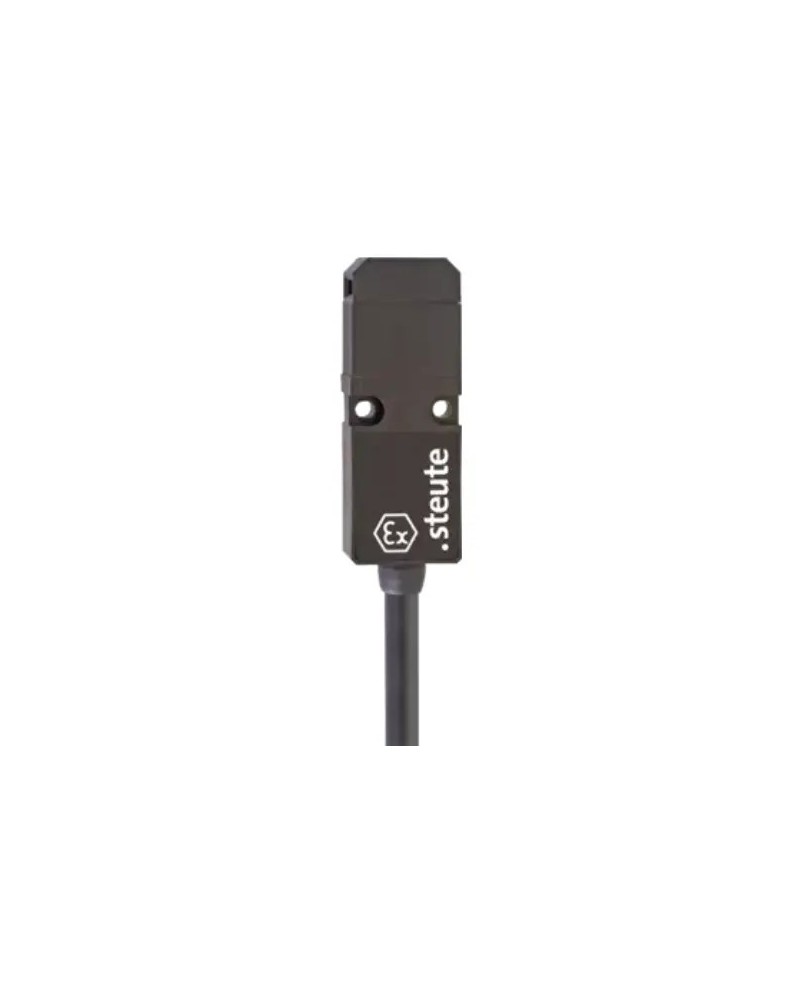

ATEX SERIES EX ST 14 SECURITY SWITCH
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- with connection cable
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- with connection cable
- Attention: Please indicate international approvals necessary!
The ex st ST 14 1Ö / 1S safety switch with separate actuator is a device designed to ensure safety in potentially explosive environments. This switch is used to monitor access to hazardous areas, and its separate actuator allows flexible and secure installation.
References Manufacturer: 1045450,1045467,1045463,1187767,1179231,1178931,1184170,1179314,1185231,1179226
STE0049
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Thermoplastic

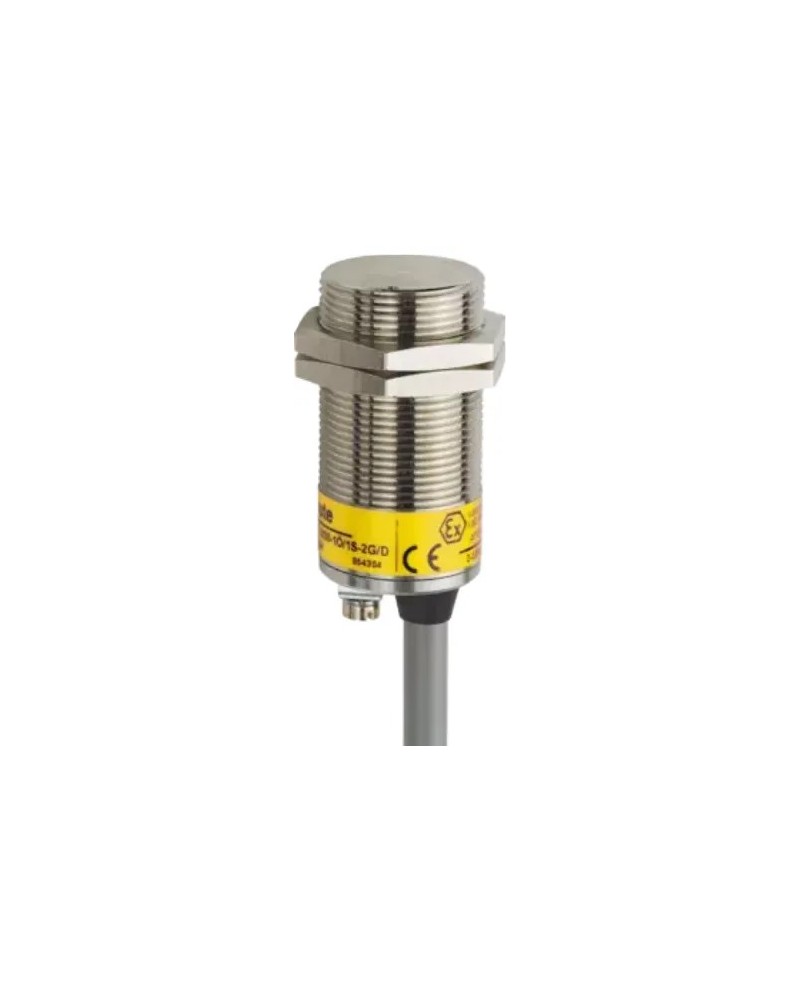

ATEX SERIES SETUP SERIES EX RC SI M30
- IP67
- Ex 1 and 21 zones
- Metal housing
- Reed contacts, coded
- Front actuation
- Switching distance up to 10 mm
- Ex 1 and 21 zones
- Metal housing
- Reed contacts, coded
- Front actuation
- Switching distance up to 10 mm
The ex officous safety sensor if M30 1Ö / 1S - LED - 10m of Steute is a contactless device designed to ensure the safety of machines in industrial explosion industrial environments.
References Manufacturer: 1181148,1183059,1182420,1179392,117928,1178328,1178296,1179281,1186818,119928,118 9004,1188437,1185005,1188556,1186768,1182512,1182129,1188598,1189364,1189362,1189363
STE0046
Data sheet
- Ambiant temperature
- -20°C to +70°C
- Temperature class
- T6
- Warranty
- 2¨
- Feed
- 24V DC
- Waterproofing protection (IP)
- Ip67
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/2
- Gas class
- IIC
- ATEX protection mode
- Ex e (increased security)
- Certificates
- Atex.iecex
- Material
- Nickel-plated brass
- Certificat_atex-en_us
- PTB 05 ATEX 2024 x
- Certificat_iecex-en_us
- IECEX PTB 07.0008 x
- Body colors
- Gray metallic

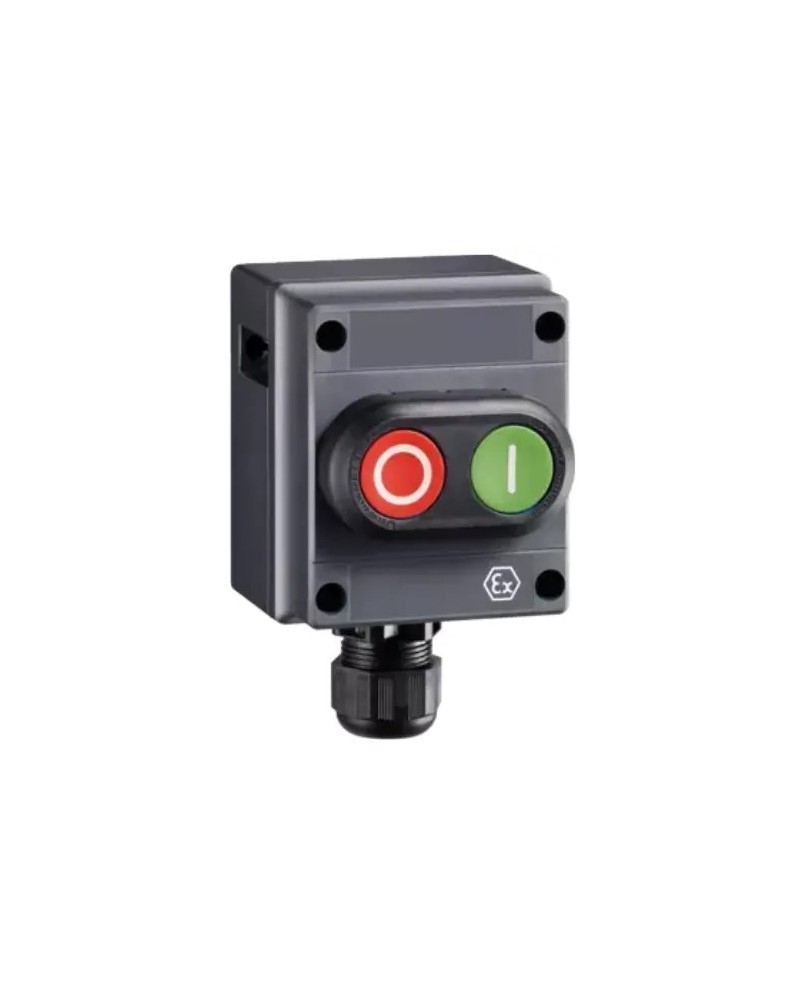

Order member Series EX BF 80
- Ex 1 and 21 zones
- Cold resistant up to -60 ° C
- Actuator: DOUDT double push button
- Red push button: 1 contact NF, green push button: contact 1 no
- Cold resistant up to -60 ° C
- Actuator: DOUDT double push button
- Red push button: 1 contact NF, green push button: contact 1 no
The ex BF 80 1 DDT control member 1000 / 1S -60 ° C is designed for extreme and dangerous industrial environments. It combines control functions with specific characteristics adapted to difficult conditions.
References Manufacturer: 1489823,1466153,1380197,1312613,126814,1328927,1281009,129992, 1354743,1307828,1301941,1426951,1430467,1301954,1660166,1238974,1356215
STE0022
Data sheet
- Ambiant temperature
- -60 ° C to +50 ° C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip66
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex of
- Certificates
- Atex.iecex
- Material
- Body
ATEX SERIES EX 13 POSITION SWITCH
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Assembly in series possible
- with connection cable
- Actuator: push
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
- Plastic case
- Double Insulation
- Assembly in series possible
- with connection cable
- Actuator: push
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
The EX 13 1Ö / 1S - 2M position switch is a security device designed to operate in explosive atmospheres environments. It is equipped with an integrated security function, ensuring the protection of industrial facilities in case of risk. This model is certified for use in ATEX zones, with features adapted to the most demanding environments.
References Manufacturer: 1053444,1044864,1189157,1052253,1188302,1177841, 1177859,1189163,1045189,1177362,1045194,1189142.1 045227,1189147,1171974,1189148,1189150,1170833,10 44955,1182523,1044995,1044998,1179522,1185707,104 5263,1181536,1045202,1045204,1280503,1189166,1045 211.1186696,1189165,1181045,1044934,1044933,10451 00,1045101,1189153,1045151,1045126,1045130,117914 2,1189146,1189145,1189156,1045166,1045061,1045064
STE0013
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- Gas class
- IIC
- Certificates
- THIS
- Material
- Thermoplastic
- Body colors
- Black
EX GFSI
- Ex 1 and 21 zones
- 1 pedal
- Corrosion-resistant aluminum case
- with protective hood
- Salin fog test according to DIN EN ISO 9227
- High sealing index IP66 / IP67
- temperatures resistant to -40 ° C to +55 ° C
- Metal screws and accessories in stainless steel
- Connection chamber
- Low height pedal
- Attention: Please indicate international approvals necessary!
- 1 pedal
- Corrosion-resistant aluminum case
- with protective hood
- Salin fog test according to DIN EN ISO 9227
- High sealing index IP66 / IP67
- temperatures resistant to -40 ° C to +55 ° C
- Metal screws and accessories in stainless steel
- Connection chamber
- Low height pedal
- Attention: Please indicate international approvals necessary!
The ex ex gFSI control pedal is an industrial device designed for extreme environments where there is a risk of explosion. It offers a robust and reliable solution for manual control of equipment under difficult conditions.
References Manufacturer: 1296855
STE0142
Data sheet
- Ambiant temperature
- -40°C to +55°C
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- IP55.IP66.IP67
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
EX 61 TK
- Ex 1 and 21 zones
- Metal housing
- with connection cable
- Actuator: spring rod with TK plastic tip
- Plastic tip resistant to abrasion
- Rogus stemming in all directions
- the spring elasticity compensates for contact races exceeding the max switching angle
- Attention: Please indicate international approvals necessary!
- Metal housing
- with connection cable
- Actuator: spring rod with TK plastic tip
- Plastic tip resistant to abrasion
- Rogus stemming in all directions
- the spring elasticity compensates for contact races exceeding the max switching angle
- Attention: Please indicate international approvals necessary!
The Ex Ex Ex Ex 61 TK position switch is commonly used in the chemical, petroleum and gas industry, as well as in other applications where security is paramount. It is particularly effective in monitoring the positions of safety devices, such as protection doors and covers, thus contributing to prevent accidents and ensuring secure operation of the machines.
References Manufacturer: 1180172
STE0104
Data sheet
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy

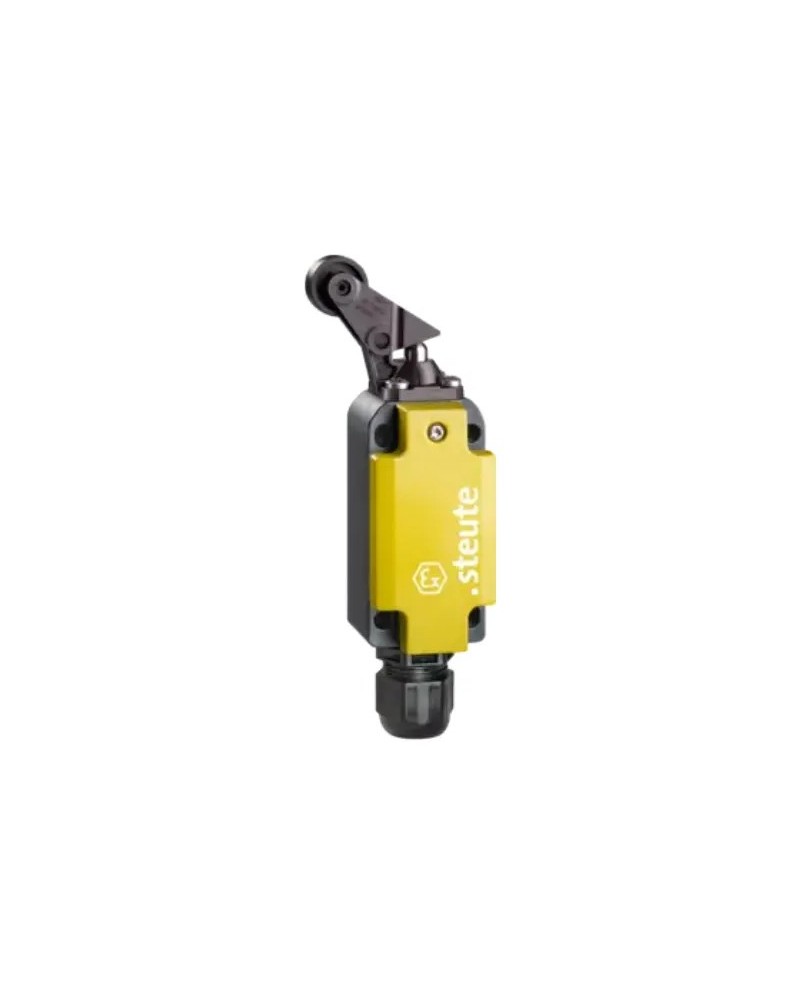

ATEX SERIES EX 98-3G / D SERIES POSITION SWITCH
- Ex 2 and 22 zones
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Actuator: pH parallel lever
- max actuation speed. 0.5 m / s with a 30 ° vertical attack angle
- Parallel actuation of the switch at the bottom
- Abrasion resistant plastic roll
- Removable 4 x 90 ° actuator
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Actuator: pH parallel lever
- max actuation speed. 0.5 m / s with a 30 ° vertical attack angle
- Parallel actuation of the switch at the bottom
- Abrasion resistant plastic roll
- Removable 4 x 90 ° actuator
The EX position switch with ex es 98 pH-11-3g / d safety function is a security device designed to monitor the position of equipment or machines in hazardous environments, particularly in ex (explosive risk).
References Manufacturer: 1456933,1454703,1189969,1351578,1454689
STE0096
Data sheet
- Ambiant temperature
- -20 ° C to 40 ° C
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip67
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy

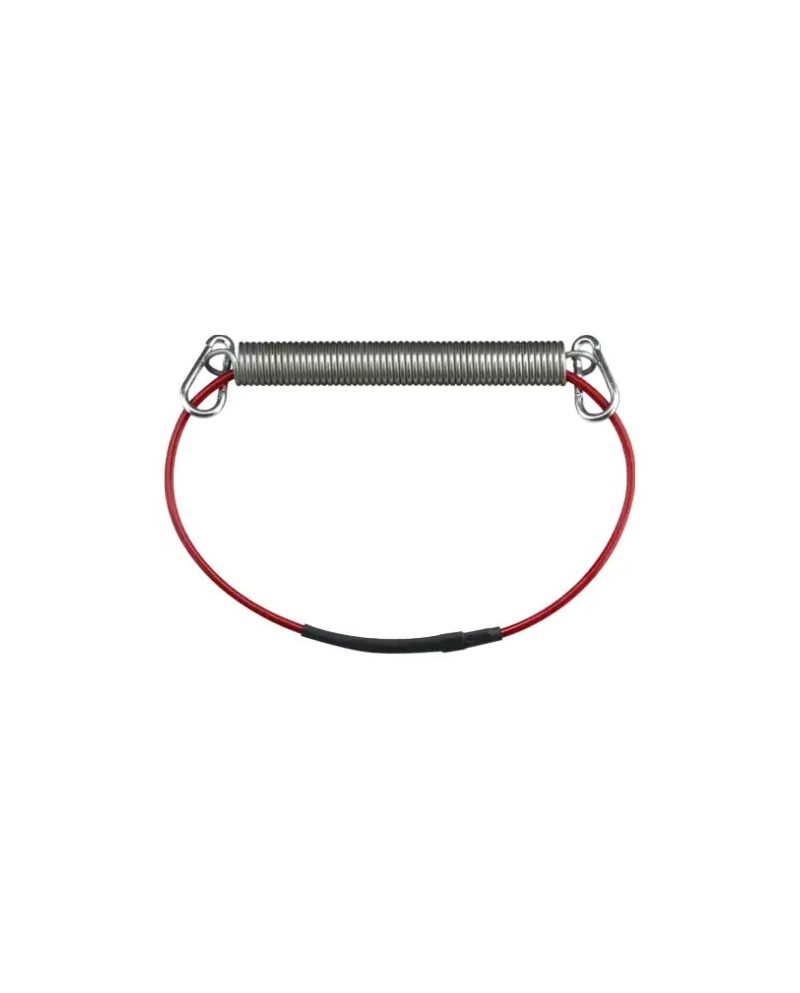

AF ZS Series Emergency Stops
- with limitation of racing
- Compensation of variations in length due to temperature variations
- Version composed of: cable with metal core with red PVC sheath, 2 galvanized carabiners and traction spring (1.4310)
- Compensation of variations in length due to temperature variations
- Version composed of: cable with metal core with red PVC sheath, 2 galvanized carabiners and traction spring (1.4310)
The ZS 71 thermal compensation spring is specially designed to compensate for temperature variations in industrial systems, ensuring optimal operation even in the presence of thermal fluctuations. With a 100 N force, this spring is ideal for applications where a precise response to temperature changes is crucial.
References Manufacturer: 1187921,1387683,1187931,1187935,1187933,1184540,1200789,1187934
STE0082
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone
- Material
- Aluminum cast iron alloy

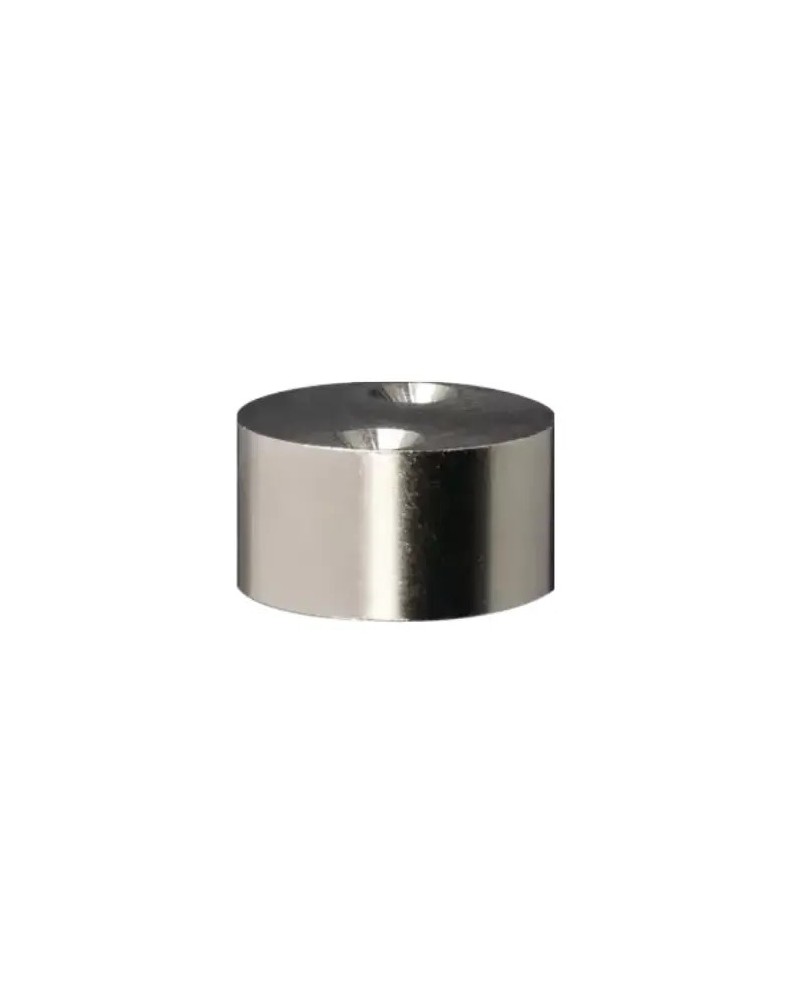

Coded stream magnet
- Actuator for RC if M30
- Case: brass, nickel-plated
- Magnet: NdFeb
- temperatures resistant to -40 ° C to +80 ° C
- Case: brass, nickel-plated
- Magnet: NdFeb
- temperatures resistant to -40 ° C to +80 ° C
The coded MC 30 actuation magnet is a magnetic safety component designed to interact with coded sensors and safety switches. It ensures reliable activation and control in industrial environments or critical safety facilities. The coded magnet offers additional security by only allowing activation with sensors corresponding to its specific coding.
References Manufacturer: 1180334,1182385,1181771,1180987,1182053
STE0071
Data sheet
- Ambiant temperature
- -40 ° C to + 80 ° C
- Warranty
- 2¨
- Application / usage
- ATEX zone
- Material
- Nickel-plated brass
ATEX Cable Emergency Stop Ex ZS 75 S Series
€1,082.30
Tax excluded
- Ex 1 and 21 zones
- Metal housing
- 2 contacts
- Cable length up to 2 x 100 m
- Push-button reset (VD)
- Traction detection and cable breaking
- Attention: Please indicate international approvals necessary!
The EX ZS 75 S 1Ö / 1S VD is a cable emergency stop switch designed for use in industrial explosion environments. It is equipped with a 3 meter cable allowing rapid intervention in case of emergency. This safety device is specifically designed for industrial applications where the protection of operators and facilities is paramount.
References Manufacturer: 1051584,1261507,1173241,1172848
STE0061
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
ATEX SERIES EX 14 POSITION SWITCH
- Ex 1 and 21 zones
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: push
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
- Attention: Please indicate international approvals necessary!
- Plastic case
- Double Insulation
- Mounting according to EN 50047
- Assembly in series possible
- with connection cable
- Actuator: push
- max actuation speed. 0.5 m / s with a vertical attack angle of 0 °
- Attention: Please indicate international approvals necessary!
The EX 14 1Ö / 1S - 2M position switch is a robust device designed to ensure safety in industrial environments with explosive atmospheres. It allows to monitor and control the position of critical equipment, ensuring rapid intervention when needed. Featuring a security feature, it is ideal for stopping or activating machines in case of failure.
References Manufacturer: 1160657,1045304,1473690,1473270,1164918,1175455,1160793,1181410,11 87242,1300760,1179731,1045423,1183335,1051550,1181627,1189139,11878 85,1181781,1045447,1189013,1183793,1045365,1045364,1045361,1179139, 1179170,1045515,1045516,1045517,1045518,1045519,1045520,1045521,104 5522,1045523,1045503,1045504,1045472,1045473,1045526,1180200,118580 0.1045500.1160191,1045501,1472619,1045502,1189195,1175893,1482086,1 189196,1189197,1189193,1189194,1189140,1178834,1189141,1189192,1428 913,1180472,1166770,1183333,1179897,1045354,1455843,1158753,1045393
STE0014
Data sheet
- Ambiant temperature
- -20 ° C to 90 ° C
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip65
- Application / usage
- ATEX zone
- Gas class
- IIC
- Certificates
- Atex.iecex
- Body colors
- Black
Ex 61 tl
- Ex 1 and 21 zones
- Metal housing
- with connection cable
- Actuator: Long spring rod TL rod steerable in all directions
- spring rod can be shortened in a 30 mm operating field
- precise linear actuation is not necessary
- the spring elasticity compensates for contact races exceeding the max switching angle
- Attention: Please indicate international approvals necessary!
- Metal housing
- with connection cable
- Actuator: Long spring rod TL rod steerable in all directions
- spring rod can be shortened in a 30 mm operating field
- precise linear actuation is not necessary
- the spring elasticity compensates for contact races exceeding the max switching angle
- Attention: Please indicate international approvals necessary!
The ex ex 61 TL 1Ö / 1S - 3M position switch is a security feature designed for use in industrial explosion industrial environments.
References Manufacturer: 1189069
STE0105
Data sheet
- Temperature class
- T6
- Warranty
- 2 years
- Waterproofing protection (IP)
- Ip65
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
Ex safety switch with separate actuator ex es 98 st
- Ex 1 and 21 zones
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Attention: Please indicate international approvals necessary!
- Metal housing
- Construction according to EN 50041
- Connection chamber
- Attention: Please indicate international approvals necessary!
The EX safety switch with ex es 98 ST-02 separate actuator is a security device designed to ensure the secure operation of equipment in explosive (EX) and at-risk environments. It is equipped with a separate actuator to provide reliable control in areas where risk of explosion or mechanical incidents are present.
References Manufacturer: 1255734,1304203
STE0097
Data sheet
- Ambiant temperature
- -20 ° C to 40 ° C
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip66
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/21
- Gas class
- IIC
- Certificates
- Atex.iecex
- Material
- Aluminum cast iron alloy
MP AZ / AZM 415-B30
- for mounting on width profiles 40, 60 or 80 mm
- Thickness of the plate 5 mm
- Mounting a door handle or anti-panic
- Thickness of the plate 5 mm
- Mounting a door handle or anti-panic
The MP AZM 415-B30 mounting plate is designed to facilitate the installation and integration of interlocking devices, in particular the AZM 415-B30 model. This plate ensures stable and durable attachment, ensuring the proper positioning and alignment of the safety components.
References Manufacturer: 1180145,1180143,1181420
STE0072
Data sheet
- Warranty
- 2¨
- Application / usage
- ATEX zone
