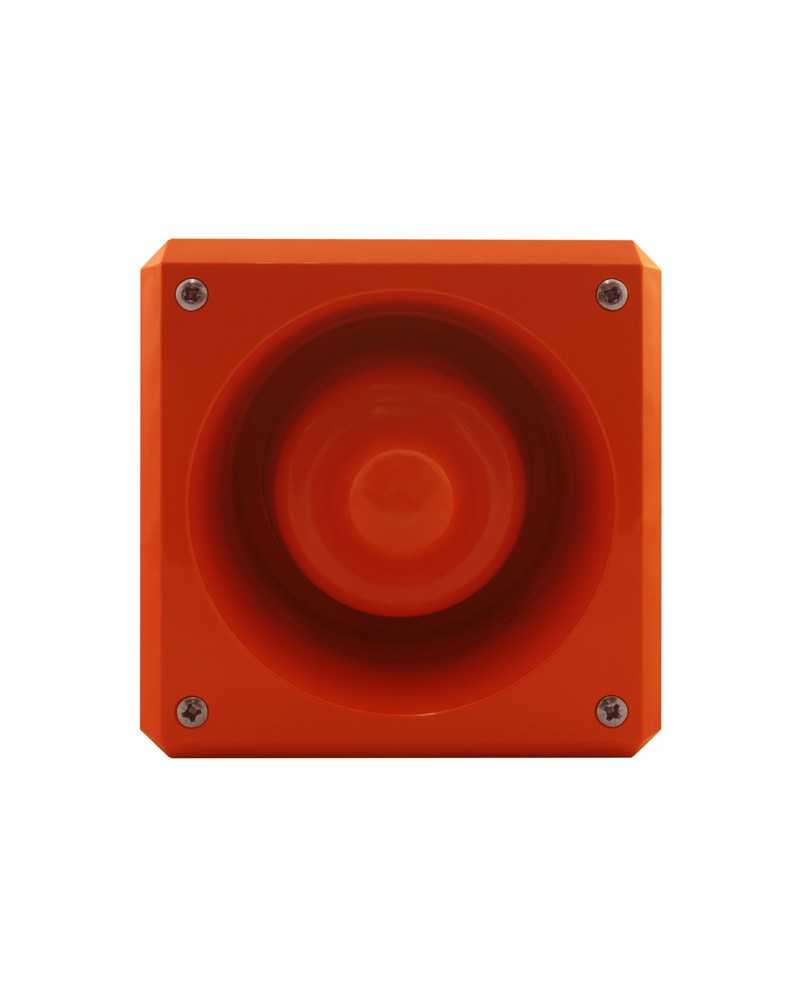

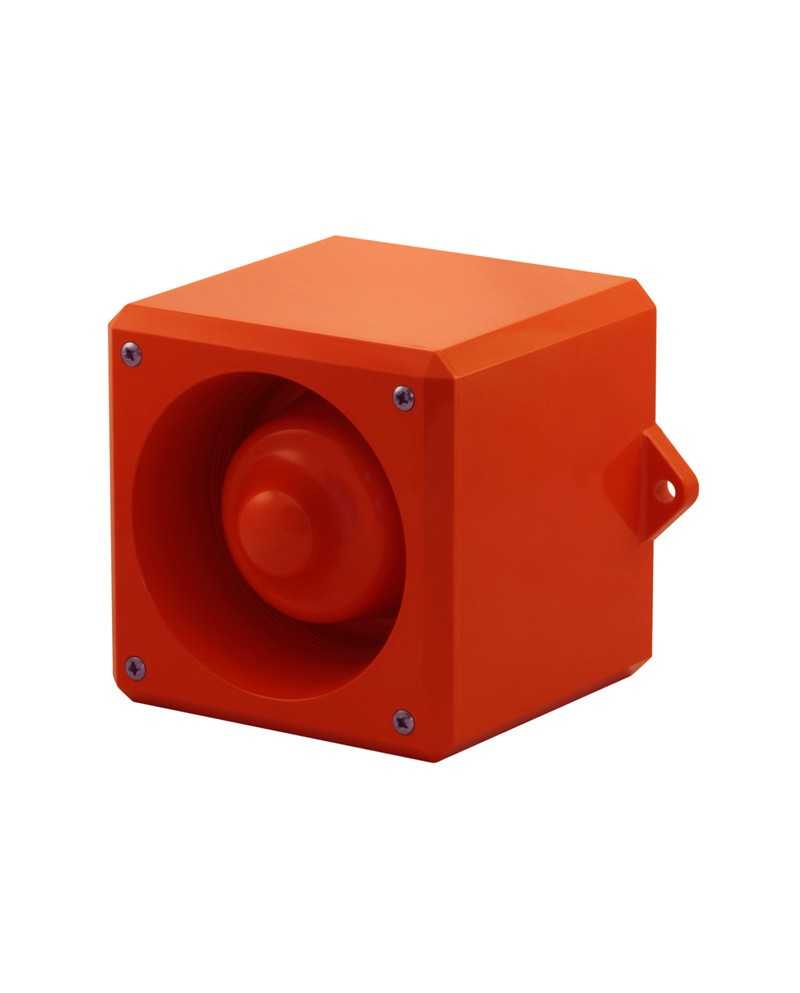

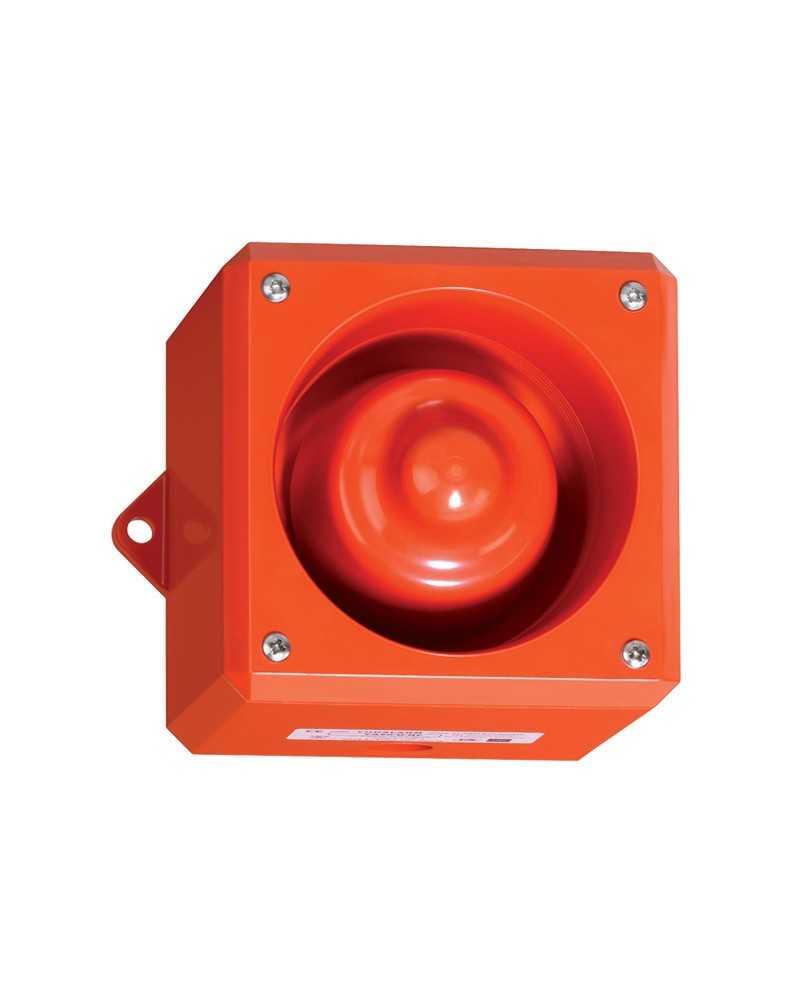

Intrinsically safe sounder YO5IS – 105 dB (A)
Main features:
- Maximum sound output
- 105dB(A)/1m
- IP56 rated as standard
- 32 selectable tones meeting international regulations
- Sound selection via DIL switch
- Stainless steel fasteners
- Monitoring facility
Customs code: 85311095
Country of origin: DE
Weight: 0.81kg
Old reference : A212A000
Temperature class
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
High sound power ATEX horn, which offers the possibility of choosing 32 successions of standardized sounds, with a 2-level alert. Compliant with UKOOA / PFEER directives, it meets the latest requirements in terms of standards and safety, the ATEX warning light is also certified to operate in complete safety in environments at risk of explosion linked to GAS, VAPORS and FOGS (zones 0, 1 and 2).
| Certification | ATEX |
|---|---|
| Certificate(s) | BAS02ATEX1190X Iecex |
| Suitable for | Area 0/20 Area 1/21 Area 2/22 |
| Protection mode | Ex i |
| Protection against gas explosion | II 1 G Ex ia IIC T4 Ga |
| Protection against dust explosion | II 1 D Ex ia IIIC 190 °C Da |
| Degree of protection | IP65 |
| Material | Flame retardant PC/ABS |
| Enclosure colour | Red |
| Ambiant temperature | -25°C to +40°C |
| Power supply | 12-24 Vcc |
| Power output | 105 db |
| Dimensions | 128 x 169 x 136 mm |
