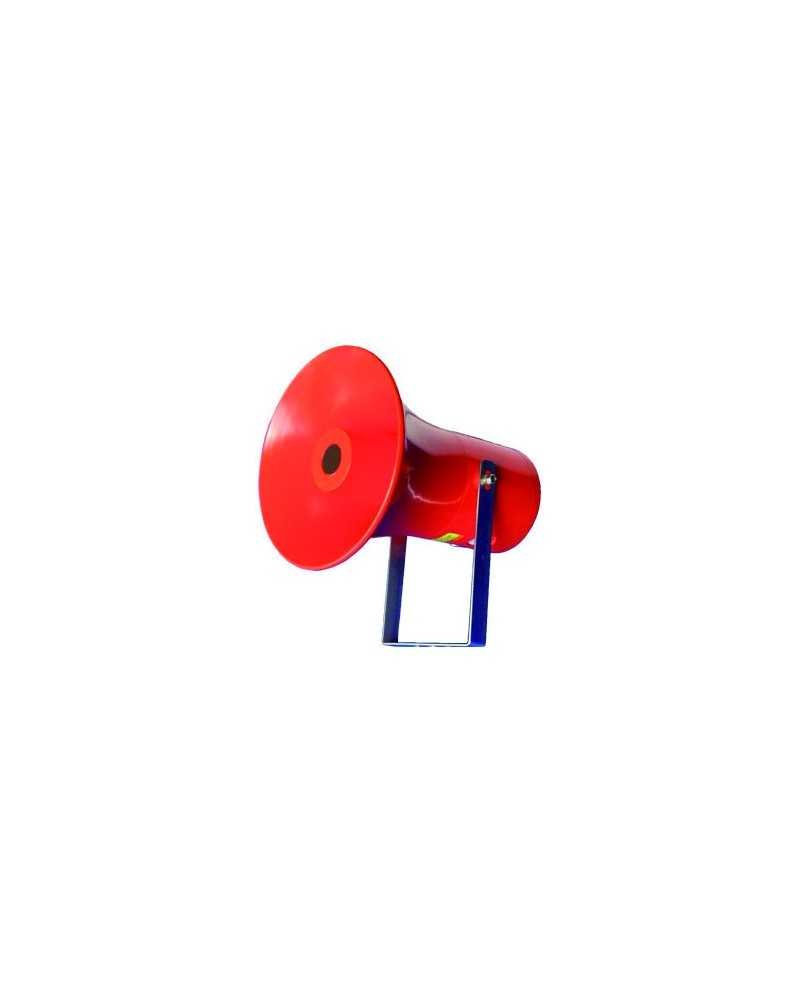

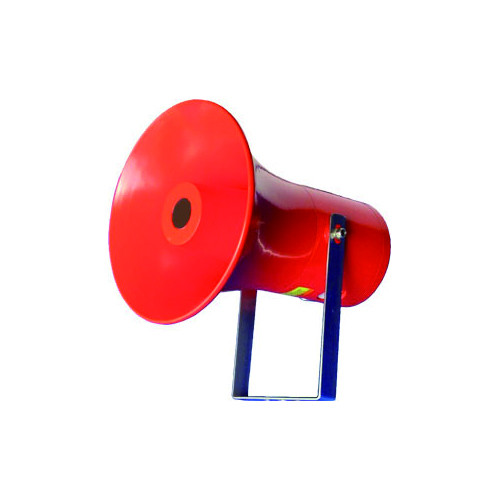

SIREN SERIE SD150 – 115dB(A)

Sounder in GRP for zone 1, 21

  • ATEX and IECEx certified for zone 1, 2, 21, 22
  • IP 66/67
  • Up to 115dB
  • 59 sounds available (customizable)
  • Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54
  • Stainless steel version also available

Customs code : 85311095
Country of origin : FR
Weight : 5,4kg
Old reference : A217A010

Power supply
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



Serie SD150 is a sounder certified ATEX/IECEx for zones 1, 2 (gas) and 21, 22 (dust). It is dedicated for the Oil & Gas, chemical, petrochemical, pharmaceutical, marine and all Offshore applications industries. It was developed for corrosive environments and explosive areas. It is possible to select 1 tone from the 59 pre-recorded, including the main usual alarm tones. Standard possibility of controlling by external commands (dry contacts) 3 sounds previously selected from the 59 proposed and the pause of the sound signal. Upon request, specific customer tones can be pre-recorded at the factory. The assembly is molded in polyester reinforced with glass fiber (GRP), tinted in the mass and protected by a paint highly resistant to UV. Optionally, it is possible to integrate the activation of the siren by a telephone line. A complete range of accessories allows you to customize the products.

Implementation Hazardous area
Certification ATEX Iecex
Suitable for Area 1/21 Area 2/22
Protection mode Ex d
Marking Ex d IIC T4~T6 Gb, Ex tb IIIC T135°C~T85°C, Ex II GD
Degree of protection IP66
Material Reinforced polyester (GRP)

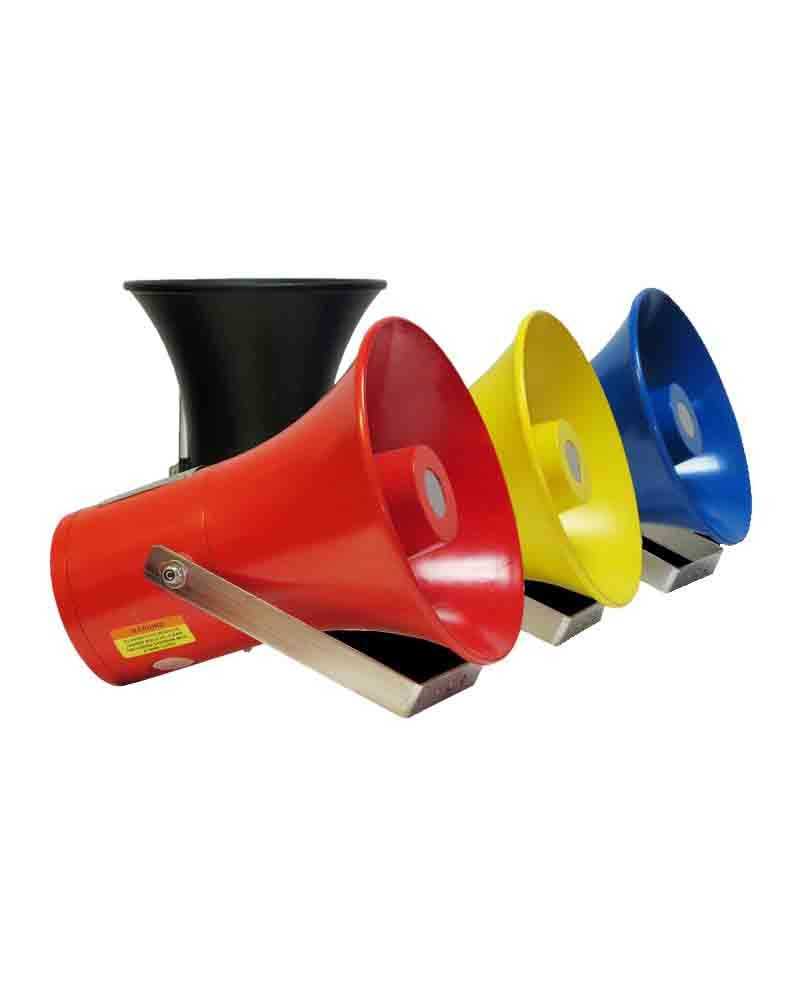

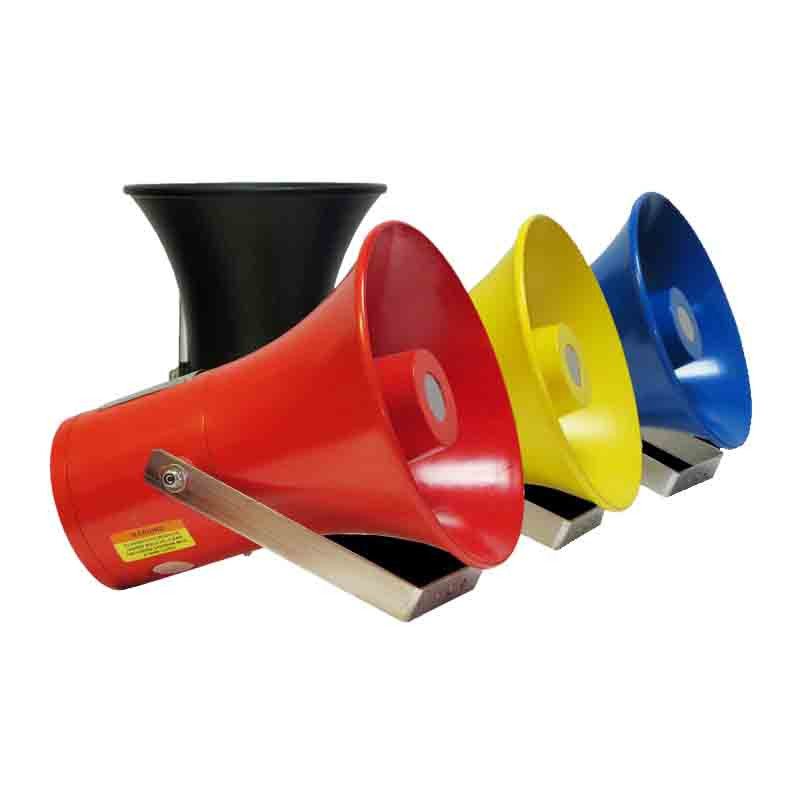

Enclosure colour Red, blue, black (more colours on demand).
Ambiant temperature -50°C to +70°C
Humidity up to 95% RH
Power supply 24-48 Vdc 100-240 Vac
Operating intensity (adjustable) Between 250mA and 1500mA
Sounds 59
Power consumption (W) 5-20W
Cable entries 2x M20 standard – M25, 1/2′′NPT, 3/4′NPT specification
Reference SIG01157
