Ex-proof sounder SD125 in stainless steel
€0.00
Tax excluded
- ATEX and IECEx certified for zone 1, 2, 21, 22
- IP 66/67
- Up to 115dB
- 59 sounds available (customizable)
- Standards: EN (IEC) 600790 / EN (IEC) 600791 / EN 54

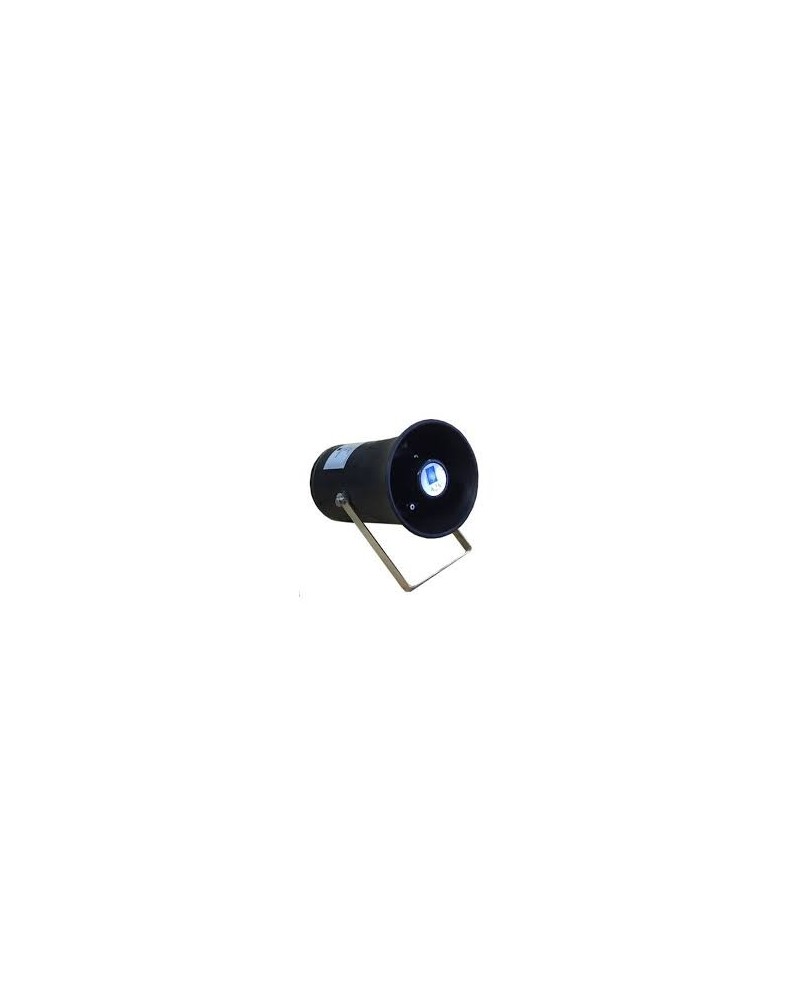

- GRP version also available
Customs code : 85311095
Country of origin : FR
Weight : 6,2kg
Old reference : A217A000
Power supply
Delivery time 5-7 days
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
This siren is certified for use in Atex/explosive atmosphere, zone 1 & 2 for gas and zone 21 & 22 for dust. It is dedicated to the Oil & Gas, chemical, petrochemical, pharmaceutical, marine and all offshore applications industries. It has been developed for corrosive environments and potentially explosive areas.
It is possible to select 1 tone among the 59 pre-recorded, including the main usual alarm tones. As standard, it is possible to control 3 sounds previously selected from the 59 proposed using external commands (dry contacts) and to pause the sound signal. On request, customer-specific tones can be pre-recorded at the factory.
The assembly is molded and machined in AISI 316L stainless steel covered with high UV resistance paint.
As an option, it is possible to integrate the triggering of the siren via a telephone line.

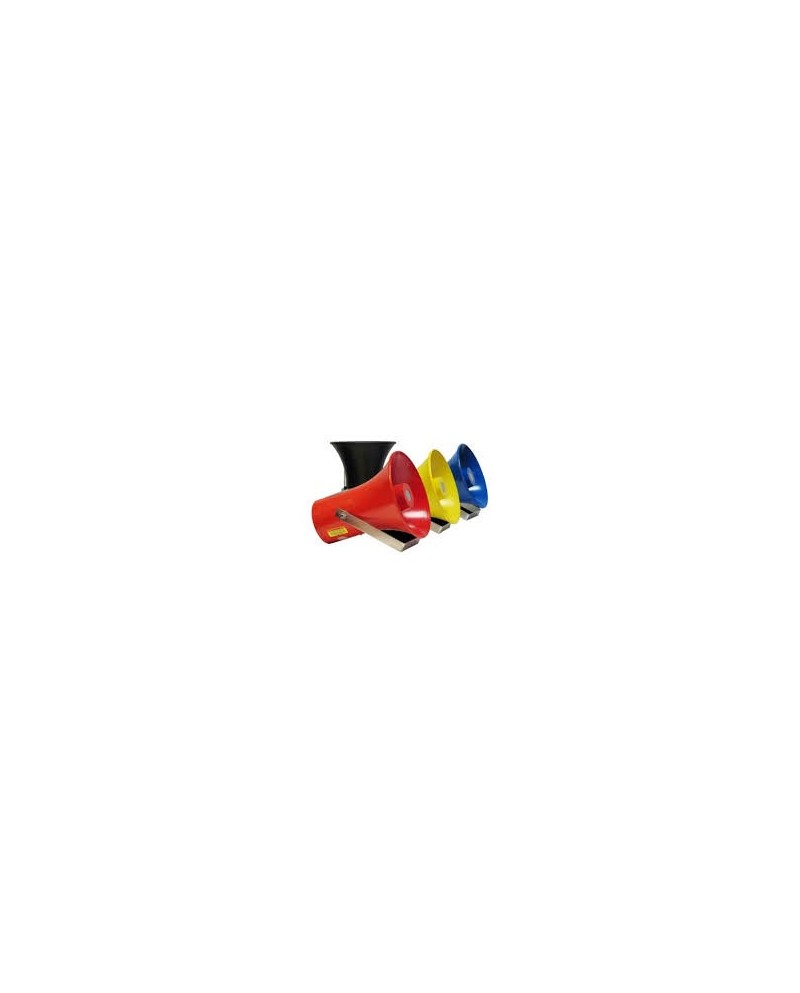

A complete range of accessories allows products to be personalized.
| Implementation | Hazardous area |
|---|---|
| Certification | ATEX Iecex |
| Suitable for | Area 1/21 Area 2/22 |
| Protection against gas explosion | Ex d IIC T4~T6 Gb |
| Protection against dust explosion | Ex tb IIIC T135°C~T85°C, Ex II GD |
| Material | Stainless steel AISI 316L |
| Enclosure colour | Red |
| Ambiant temperature | -50°C to +70°C |
| Power supply | 24-48 Vdc 100-240 Vac |
| Operating intensity (adjustable) | Between 250mA and 1500mA |
| Power output | 115 db |
| Sounds | 59 |
| Power consumption (W) | 5-20W |
| Cable entries | 2x M20 standard – M25, 1/2′′NPT, 3/4′NPT specification |
