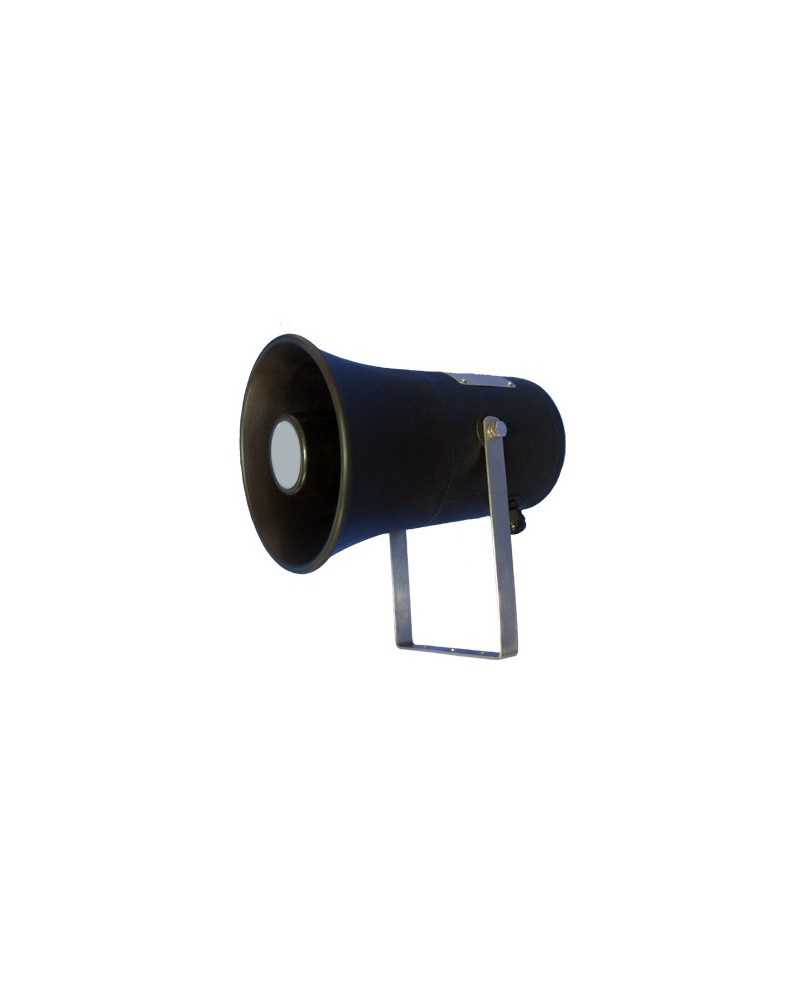

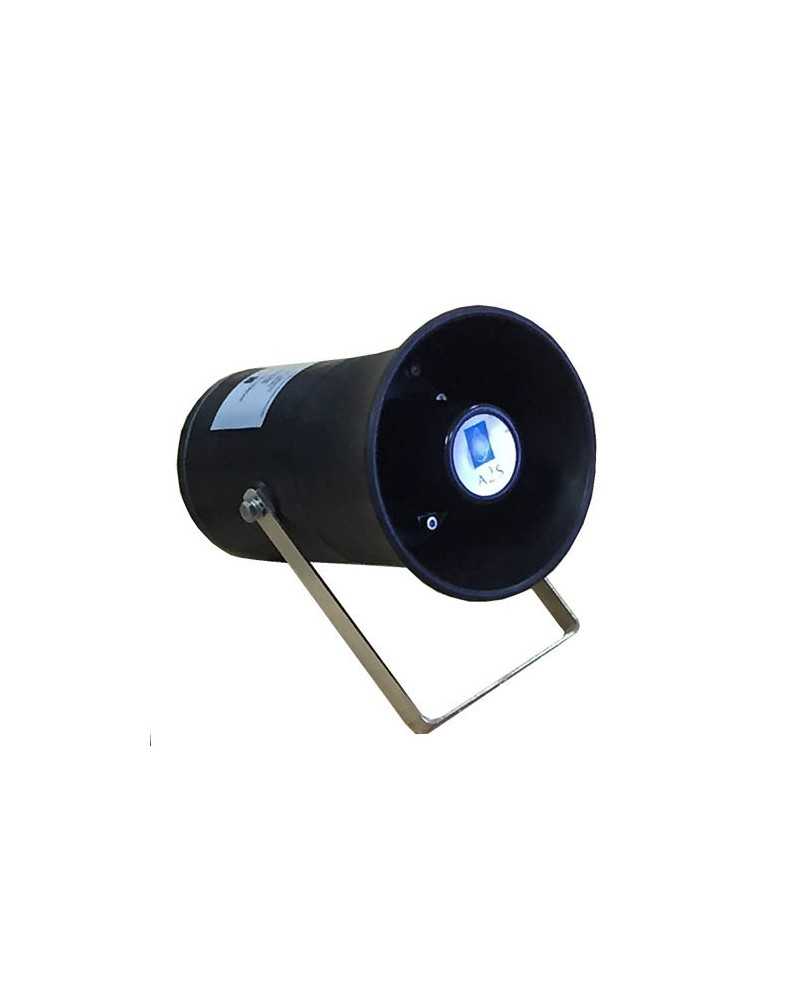

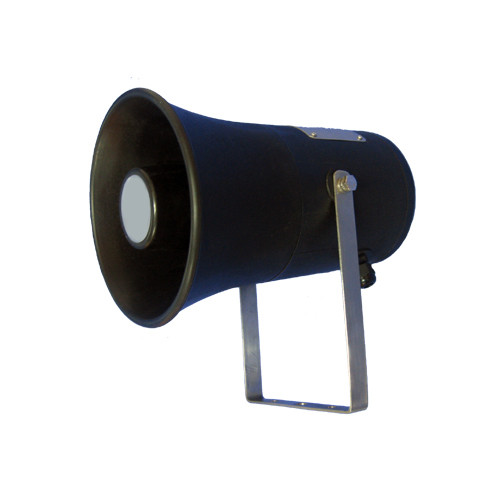

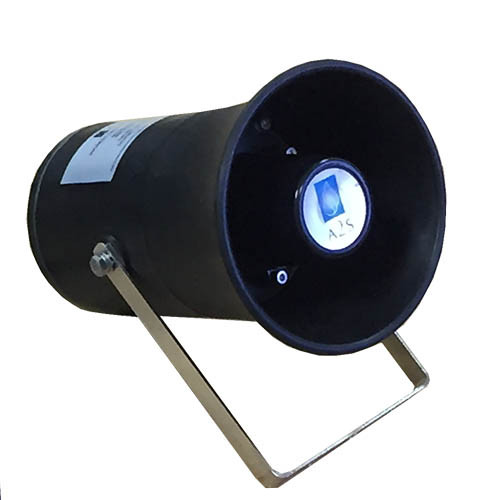

Weatherproof sounder SD100

Delivered within 24-48h

Weatherproof sounder IP66/67

  • IP 66/67
  • Polycarbonate
  • Up to 123dB max output
  • 59 pre-record sounds
Customs code : 85311095
Country of origin : FR
Weight : 1,5kg
Old reference : A217E020
Power supply
Ask for a quote

Delivery time 2-3 days
  • Security policy Security policy
  • Delivery policy Delivery policy

SD100 waterproof siren is to be used in NON ATEX areas for indoor and outdoor use and more specifically in harsh environments and fully meets the specifications of standards IEC 60947 and EN 54. It is dedicated for the most severe non-ATEX industrial environments IP & IK high. It is possible to select 1 tone from the 59 pre-recorded, including the main usual alarm tones. Optionally it is possible to integrate the activation of the siren by a telephone line. The assembly is molded in heat-protected Polycarbonate.

Data sheet

Implementation
Fire (acc. EN54)
Industry
Marine
Degree of protection
IP66
IP67
Material
Polycarbonate (PC)
Enclosure colour
Black or red, more colours on demand
Ambiant temperature
-40°C to +70°C
Power supply
24-48 Vdc
100-240 Vac
Power output
120±2dB(A) @1M
Sounds
63
Power consumption (W)
12V DC – 910ma (Max 10W) , 24V DC – 960mA , 48V DC: 500ma ,110V AC – 210ma , 220V AC – 100ma
Cable entries
1x PE ISO 20 standard
Customs Code
85311095
Warranty
3 years
