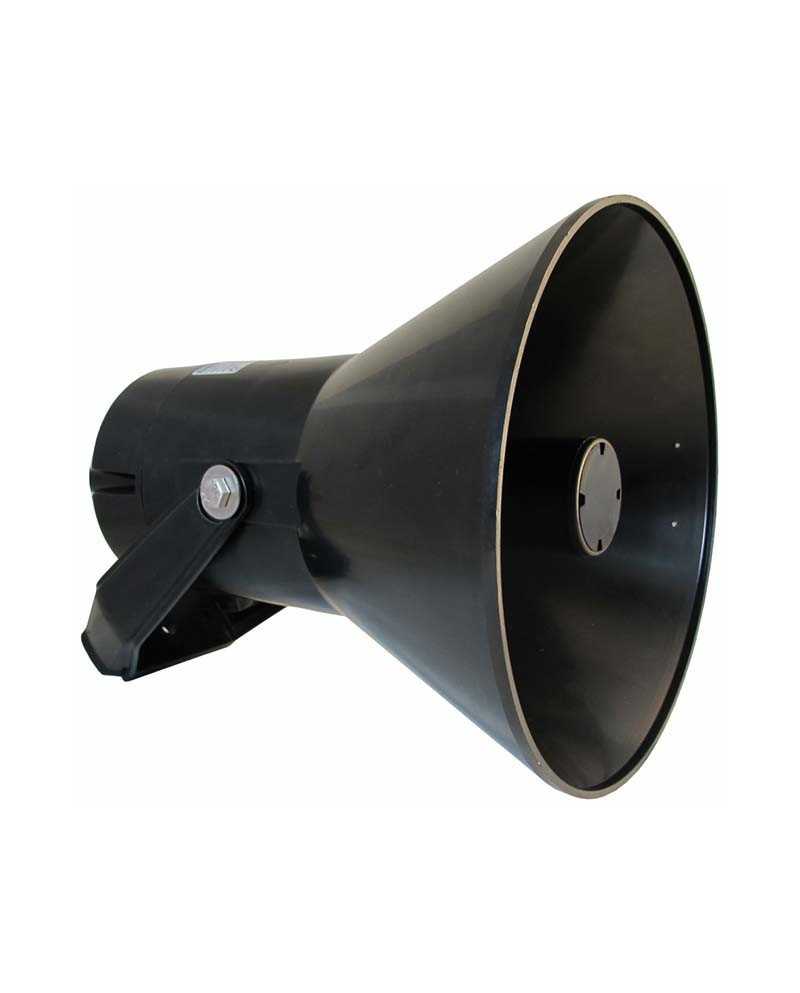

Ex-proof loudspeaker HP-20EExIIN(T) - 20W - Zone 2-22
Strong points:
- Strong power 20W = 110 dB (1W/1m)
- Waterproof protection IP67
- Extreme temperature: -50°C / +50°C
- Available in 2 models: 8 Ohms and 100V
- Stainless steel fixing brackets
Customs Code:85182900
Country of origin :NO
Weight:2.3kg
Stock:Available within 22 days*
Security policy
Delivery policy
The HP-20 anti-drug speaker is equipped with an excellent bandwidth that allows to broadcast sound, voice or music. This product is available in 2 models: 8 Ohms and 100V. It is designed for explosive zones 2 and 22.
Data sheet
- Certificate(s)
- Iecex
- Protection against gas explosion
- Ex II 3 GD T94°C Ex na II T3 -50°C ≤ Ta ≤ +50°C
- Degree of protection
- IP67
- Material
- Antistatic polyamide / black
- Ambiant temperature
- -50°C to +50°C
- Version
- 8 Ohms or 100V
- Power output
- up to 122 dB
- Light power
- 20W
- Sensitivity
- 110 db / 1W / 1m
- Bandwidth
- 310 - 8000 Hz
- Cable entries
- 2 x M20 with shutter caps
- Mounting type
- Etrier
