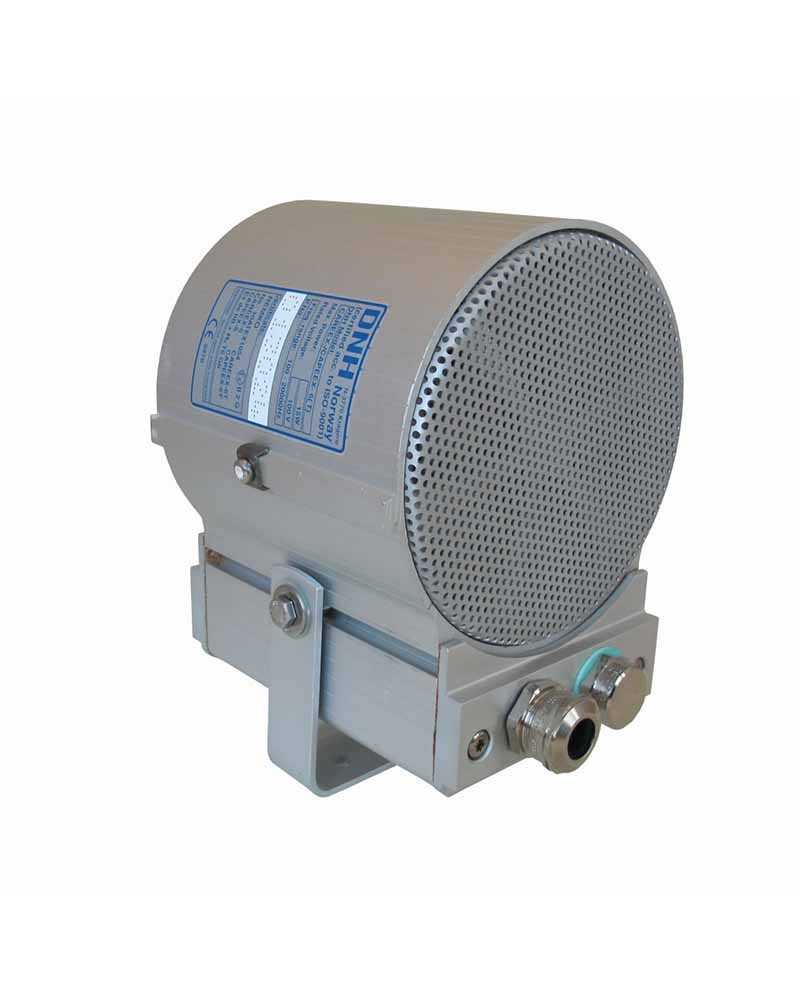

Loudspeaker projector CAPEEX-6(T) - 6W - Zone 1, 21
Main features:
- IP67 waterproof protection
- Extreme temperature: -20°C / +40°C
- Available in 2 models: 8 Ohms and 100V
Customs code: 85182900
Country of origin: NO
Weight: 3.6kg
Security policy
Delivery policy
The CAPEEX-6(T) loudspeaker projector has an excellent bandwidth that allows you to broadcast sound, voice or music. This product is available in 2 models: 8 Ohms and 100V. It is designed for use in explosive atmospheres zones 1, 2 (gas) and zone 21, 22 (dust).
Data sheet
- Implementation
- Industry
- Certification
- ATEX
Iecex - Suitable for
- Area 1/21
Area 2/22 - Protection against gas explosion
- II2G Ex emb [ib] IIC T6 Gb
- Degree of protection
- IP67
- Ambiant temperature
- -20°C to +40°C
- Version
- 8 Ohms or 100V
- Power output
- 90 dB(A) - 3 niveaux de sortie
- Power consumption (W)
- 25W
- Sensitivity
- 106 dB / 1W / 1m
- Bandwidth
- 380 – 8000 Hz
- Cable entries
- 2 x M20 with blanking plugs
- Mounting type
- Etrier ou bras articulé
