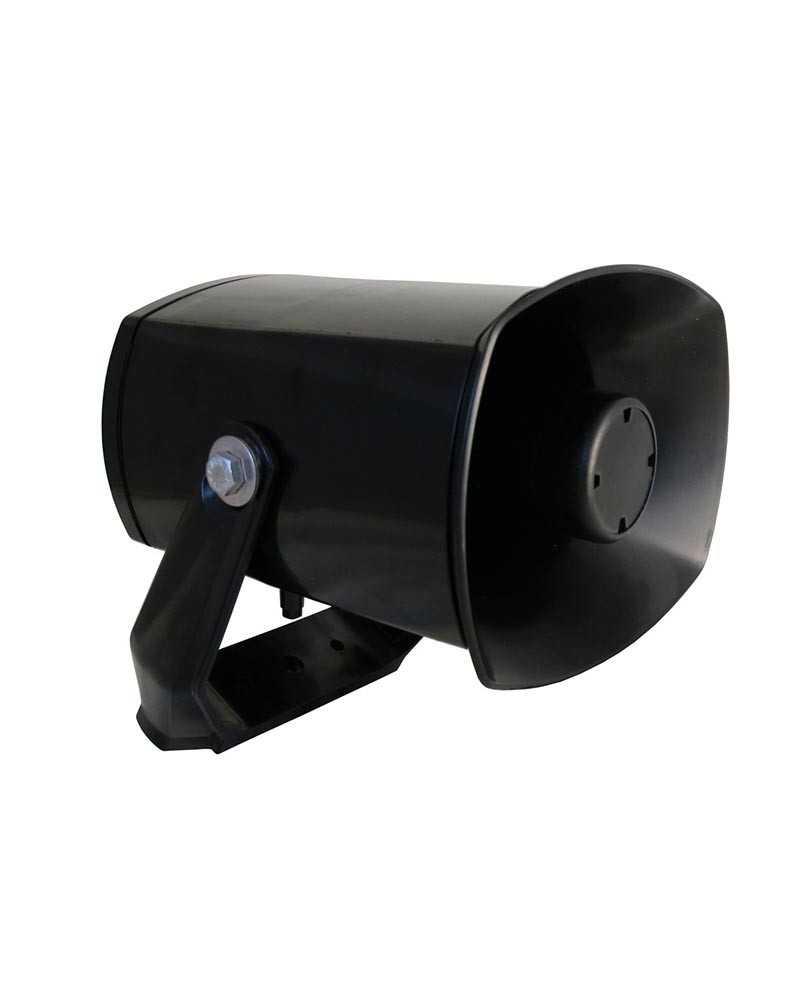

Flameproof loudspeaker DSP-15EExmN (T) 25W
Key features:
- High power 25W = 106 dB (1W / 1m)
- Sealing protection IP66 / 67
- Extreme temperature: -50 ° C / + 60 ° C
- Available in 2 models: 8 Ohms and 100V
- Gas group: IIB and IIC
- Stainless steel fixing brackets
Customs code: 85182900
Country of origin: NO
Weight: 2.2kg
Stock: Available within 22 days *
-
Security policy
-
-
Delivery policy
-
The DSP-15 explosion-proof speaker has excellent bandwidth that can play sound, voice or music. This product is available in 2 models: 8 Ohms and 100V. It is designed for use in explosive atmospheres zones 1, 2 (gas) and zone 21, 22 (dust).
25W ATEX certified polyamide horn loudspeaker. This versatile model can be ordered with different transformers for more taps and power. The DSP-15 EExmN (T) is lightweight and has M20 inputs on the rear of the case for easy cable mounting. Additional terminal block available for loop function as standard. Also certified for USA and Canada.
Data sheet
- Certificate(s)
- ATEX
- Protection against gas explosion
- Ex II 2G Ex d e mb IIB+H2/IIC T4 Gb
- Protection against dust explosion
- Ex II 2D Ex tb IIIC T105°C
- Material
- Antistatic polyamide / black
- Ambiant temperature
- -50°C to +60°C
- Version
- 8 Ohms or 100V
- Power output
- 118 db
- Light power
- 25W
- Sensitivity
- 106 db / 1W / 1m
- Bandwidth
- 380 - 8000 Hz
- Cable entries
- 2 x M20 with shutter caps
- Mounting type
- Arm or arm articulated
