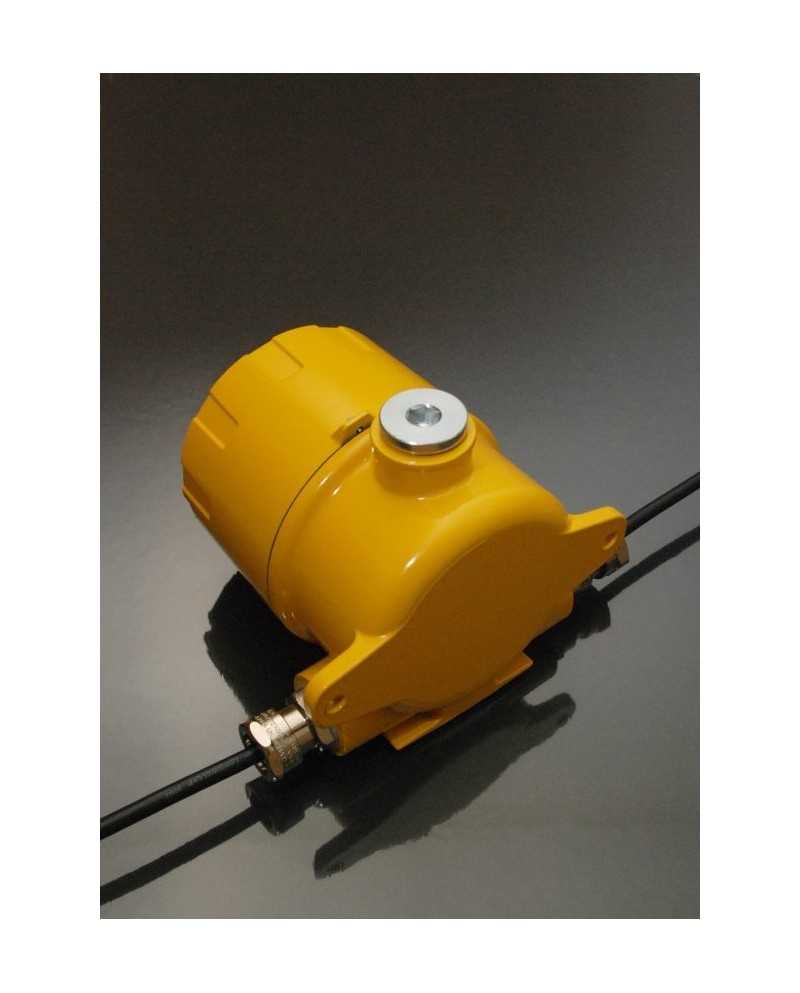

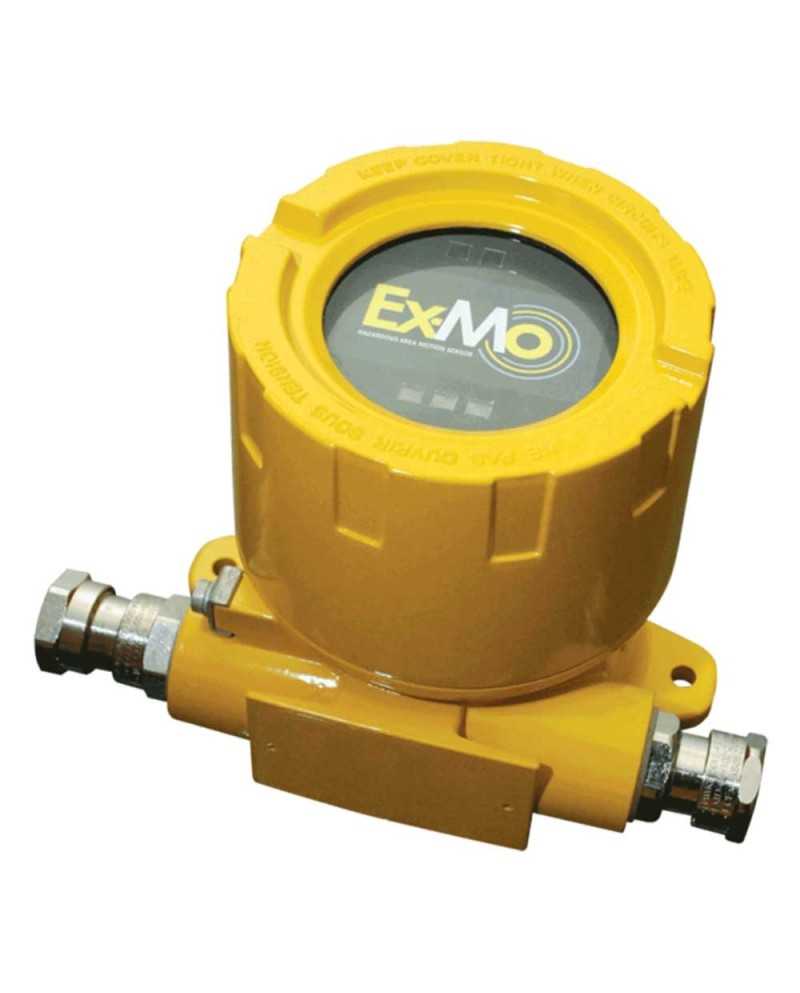

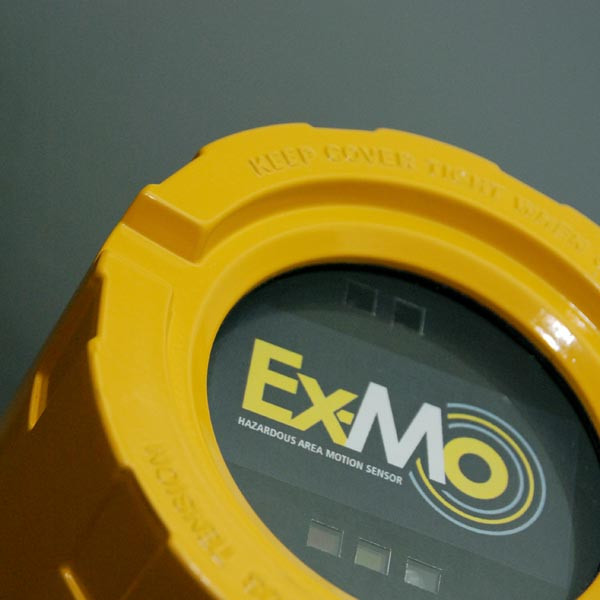

Flameproof Ex-Mo motion sensor for zone 1
€0.00
Tax excluded
Key features:
- ATEX / IEC Ex certified - Zone 1/21
- Ultra-robust Ex d housing in aluminum or 316L stainless steel
- Doppler technology
- Ambient light level sensor
- Adjustable activation time
- Fully adjustable sensitivity and detection range
- Adjustable mounting bracket (optional)
- 12 / 24Vdc control input
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

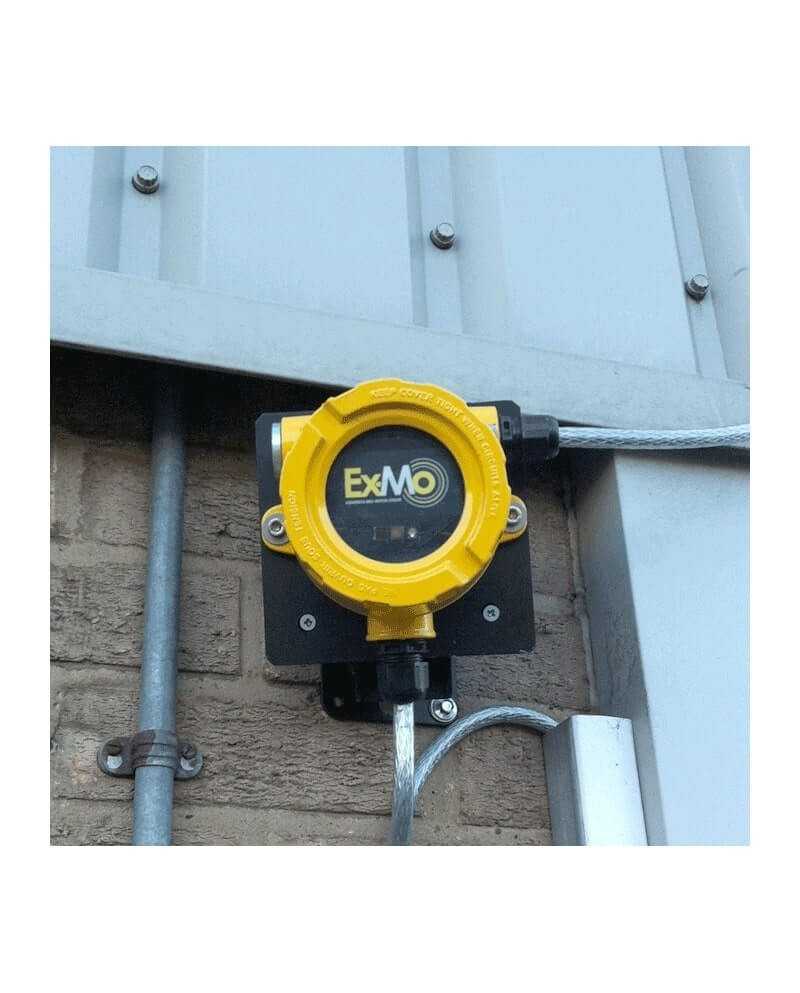

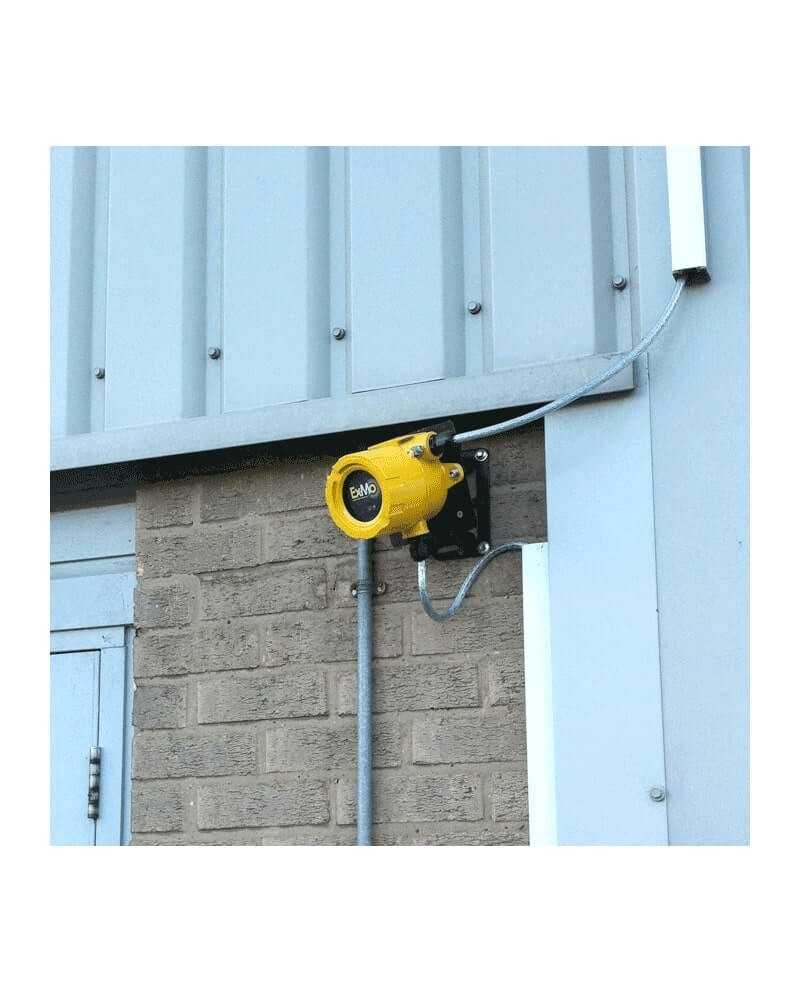

Ex-Mo is a microwave motion sensor using the original Doppler principle, designed and certified to operate in hazardous environments. Ex-Mo offers ATEX and IECEX, IP66 Zone 1 and Zone 21 certification for gas and dust areas. Ex-Mo helps reduce unnecessary energy consumption due to lighting and other switching devices. Ex-Mo can be used to control site lighting so that the lighting is only turned on when people are present and turned off when it doesn’t, saving you electricity by reducing your energy bills and carbon footprint.
What can the Ex-Mo do?
- Possible multiple sensor/lighting configurations
- Ambient light level sensor
- Adjustable start-up time
- Fully adjustable sensitivity and detection range

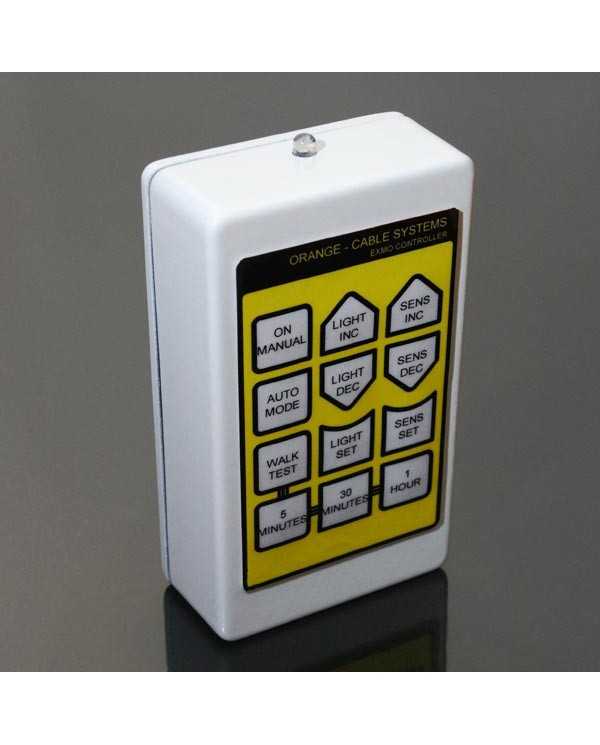

- Atex/IECEx Certified Programming Remote Control

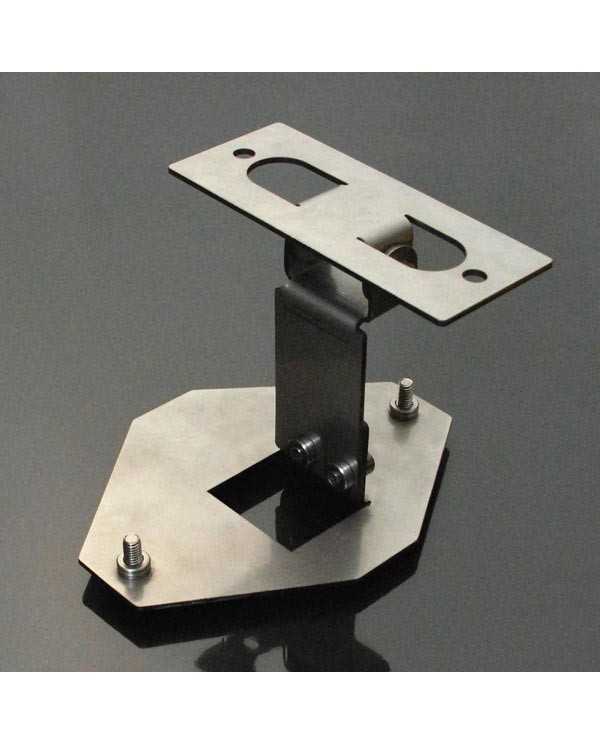

- Optional Ex-Mo adjustable mounting support to ensure safe assembly and multi-directional positioning
- Operating 110 / 230Vac or factory option 12 / 24Vdc
- 12 / 24Vdc control input to bypass the detection sensor
- Robust design available in two materials, painted aluminum and 316L stainless steel
- Ex-Mo uses the doppler principle
Ex-Mo Info – What it might be useful to know!
- Coverage – The Ex-Mo unit offers coverage of about 72 degrees horizontally and about 36 degrees vertically. In practice, the Ex-Mo unit will detect 90 degrees so that a single unit placed in the corner of a rectangular room provides complete coverage along the walls
- The high-frequency Doppler radar works best when the target approaches or away from it and can be detected at an average distance of about 20 metres. The detection beam is focused in front and is directional.
- Dimensions – 145 mm x 132 mm x 129 mm
- Weight – Stainless steel 2.5 kg – Aluminium 1.5 kg
- Earth marker on the right side M5 internal /external bolt provided
- Equipment classification – IP66
| Technology | Motion |
|---|---|
| Implementation | Hazardous area |
| Suitable for | Area 1/21 |
| Degree of protection | IP66 |
| Dimensions | 145 x 132 x 129mm |
| Net Weight | 2.5 Kg |
