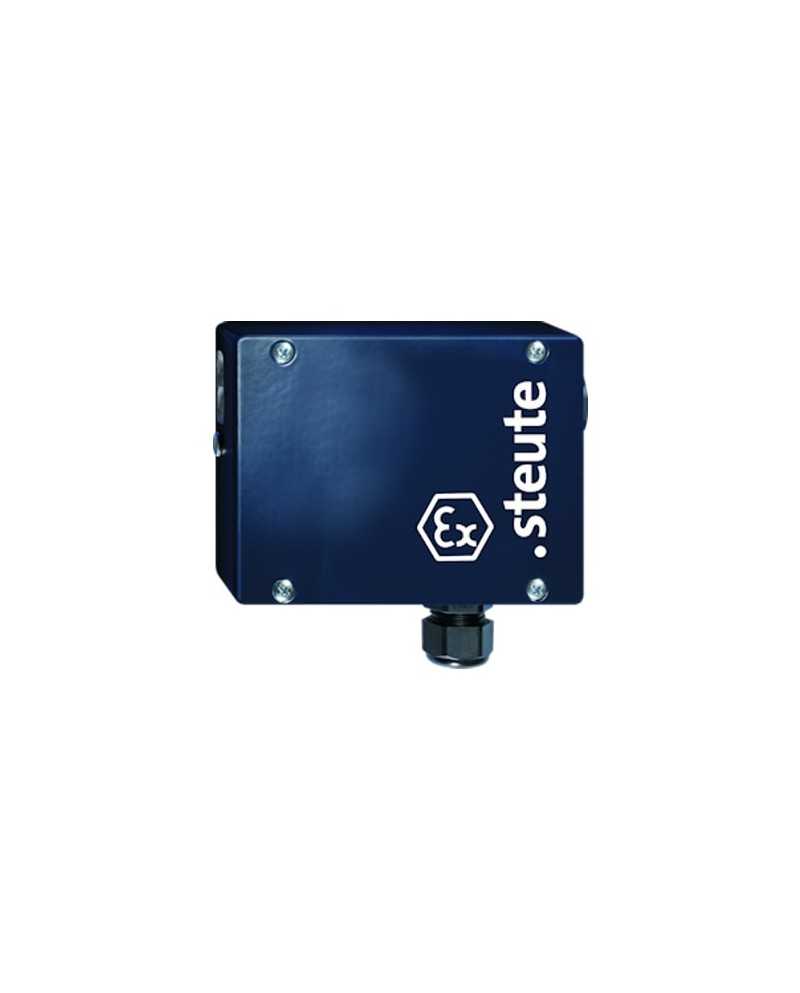

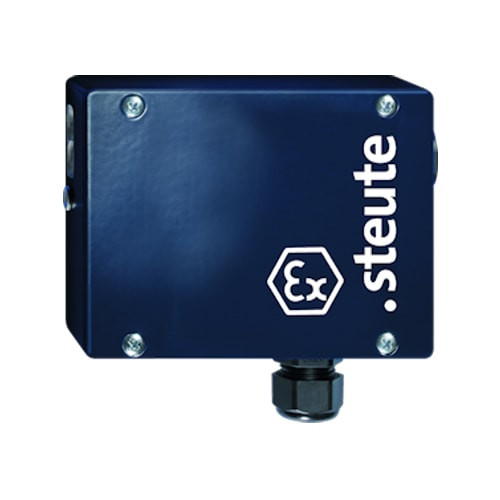

Security sensor AZM415
€0.00
Tax excluded
Ex Security Sensor for Zone 1, 21
- Areas Ex 1 and 21
- Special version for ambient temperature +90°C for Zones EX 21 Poussières available (HU)
- Discharge by undervoltage or off-board
- Two Ex switch inserts in a case
- Easy opening of the tense protectors thanks to the kneeling mechanism
- Great resistance to rind 3500 N
- Ball locator
- Connection room
- Also available in special version for zone 22
- Please indicate necessary international approvals!
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
EX safety sensors are used to monitor the position of sliding, swivel or removable protectors. For safety functions according to DIN VDE 0660-209, the devices shall be used only with a PL door monitoring module ""e" according to EN ISO 13849-1 or up to SILCL 3 in accordance with EN 62061.
| Certificate(s) | DMT 02 ATEX E 255 X, Iecex BVS 07.0018X |
|---|---|
| Suitable for | Area 1/21 |
| Degree of protection | IP64 IP67 |
| Ambiant temperature | -20°C to +40°C |
| Power consumption (W) | max. 12 W (0.25 s) |
| Cable entries | 2 x M20 x 1.5 (incl. 1 tattoo press) |
| Screw connections | Screw terminals |
