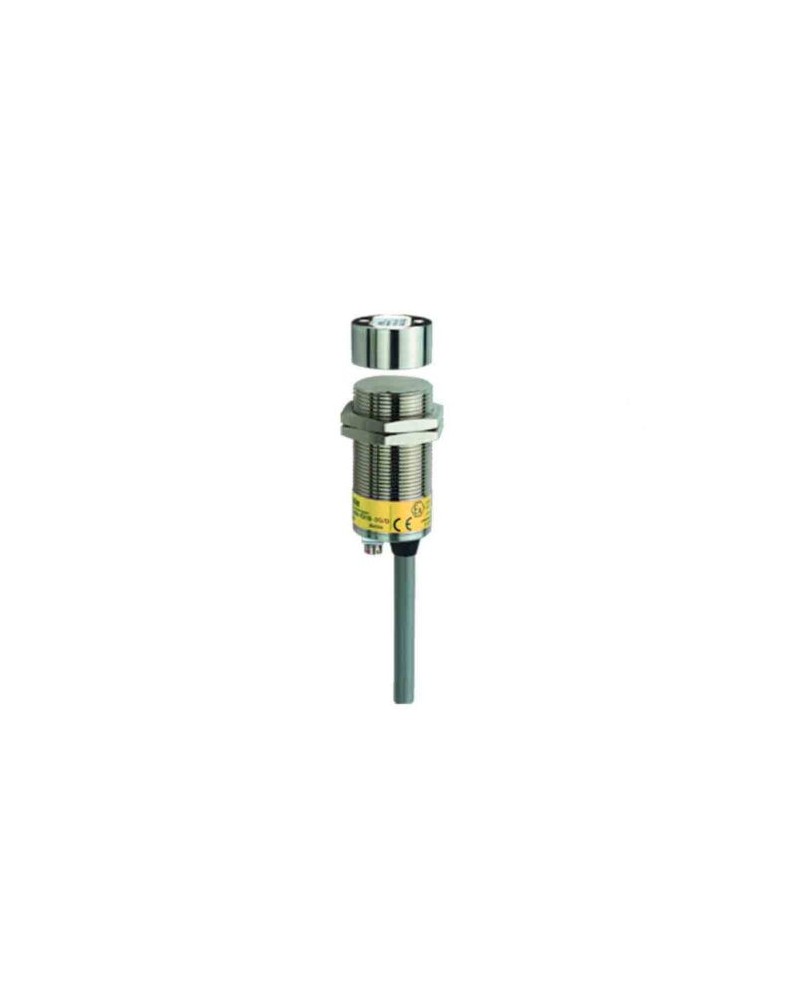

EX RC SI M30 Security Sensor
€0.00
Tax excluded
Ex security sensor for zone 1, 21
- Ex Zones 1 and 21
- Metal box
- Available in stainless steel version
- Suitable for the agri-food industry
- Reed Contacts, coded
- Frontal actuation
- Switching distance up to 10 mm
- Also available in special version for zone 2 Gas or 22 Dust
- DNV-GL shipbuilding approval available on request
- Please indicate necessary international approvals!
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
EX safety sensors are used to monitor the position of sliding, swivelling or removable protectors. For security functions according to DIN VDE 0660-209, the devices must only be used with a PL “”e” protection door monitoring module according to EN ISO 13849-1 or up to SILCL 3 in accordance with EN 62061.
| Certificate(s) | PTB 05 ATEX 2024 X, Iecex PTB 07.0008 X |
|---|---|
| Suitable for | Area 1/21 |
| Material | Nickel-plated brass or stainless steel |
| Ambiant temperature | -20°C to +70°C |
| Cable type | Cable H05VV5-F 5G |
