SX EX Electromagnetic lock

Main features:

  • ATEX & IEC Ex certified - Zone 1 / 21 2/22
  • IP 66/67
  • 12V DC or 24V DC
  • Works with our door controller and access products
  • Lock made from a single heavy duty block
  • fits right or left handed doors and doors that open inward or outward
  • Supports a load of 550 kg
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy
  • Security policy Security policy
  • Delivery policy Delivery policy
  • Return policy Return policy

Unique.

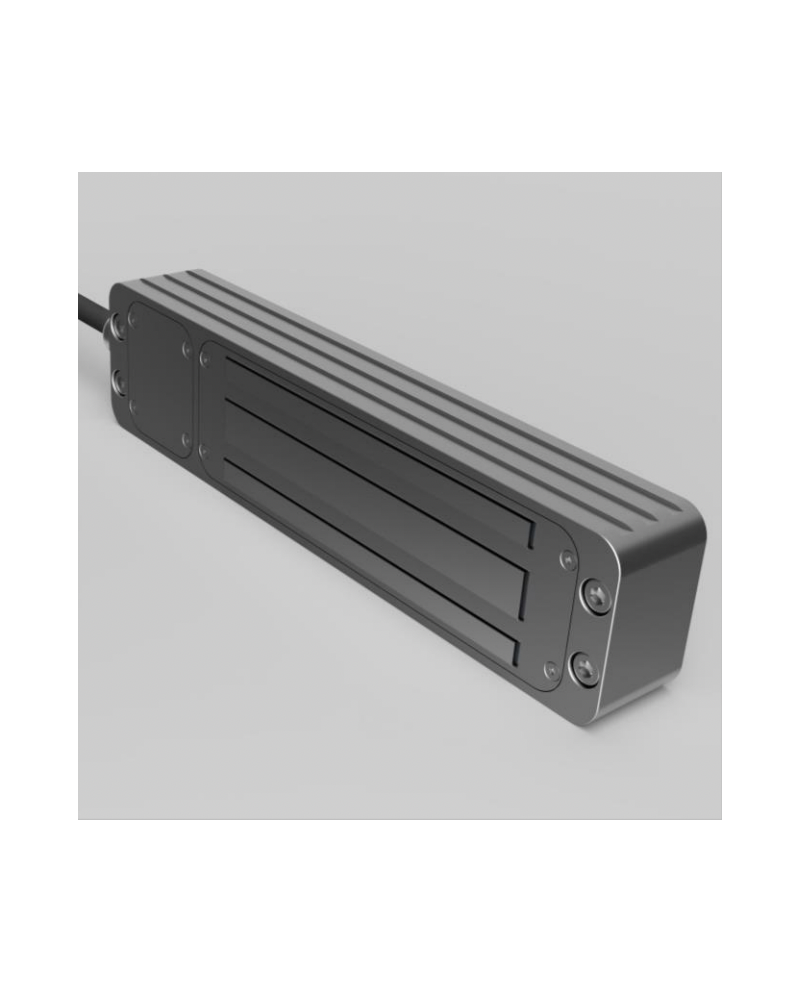

It has been specifically designed to be a true "Ex" certified security lock product. Designed with both form and function in mind, the lock is made from a single solid piece of 316 stainless steel. It is equipped with a 5 meter multi-core cable. Designed to withstand loads up to 550 kg or 1200 lbs.

It can be adapted to a wide variety of door configurations, including right- or left-handed doors and inward or outward opening doors. Wiring can also exit on the right or left side depending on the installation requirements. The lock can be installed in any orientation. The lock is available in a choice of 12 or 24 VDC versions and is supplied with a special door armature (guard unit), which includes a door status magnet.

Data sheet

Technology
Electromagnetic Locking
Implementation
Locking system
Certification
ATEX
Iecex
Suitable for
Area 1/21
Area 2/22
Ambiant temperature
-40°C to +45°C
